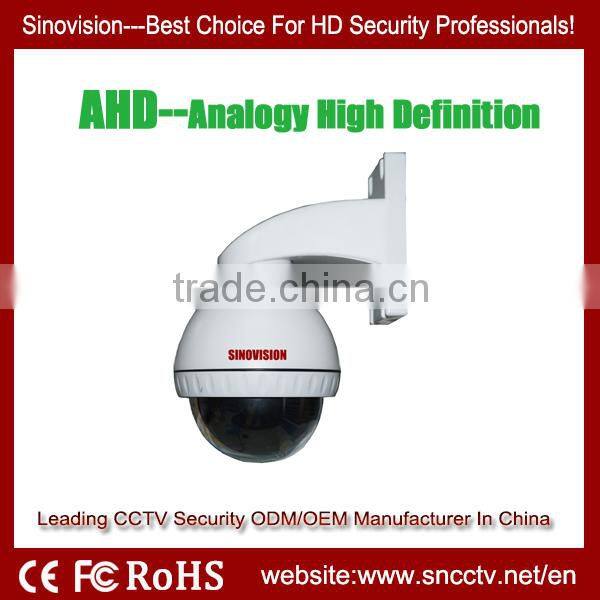

2014 New AHD 960P 1/3" 1.3 MegaPixel CMOS Sensor Mini PTZ Indoor Dome CCTV Camera

Specifications

1/3 1.3 Mega Pixel Progressive CMOS H.264/JPEG Video Compression

2014 New AHD  960P 1/3" 1.3 MegaPixel CMOS Sensor Mini PTZ Indoor Dome CCTV Camera



1/3”1.3 Mega Pixel CMOS Sensor; 960P,Resolution:1280*960

Feathure:

* Mini 4" Color intelligent  speed dome camera

*Unique Plastic Dome casing;



*6MM MegaPixel fixed lens

*128pcs preset points



*8 groups trick cruisingeach group can cruise 16pcs preset pointsIntelligent Speed Change0.5°/S-60°/SHorizontal Speed Change0.5°/S-40°/SVertical Speed Change180°Auto overturn360°Constant rotating;

*Horizontal ScanningTwo-point ScanningGuarding Function;



* OSD Menu



* Using coaxial transmission mode which lower costs



* Extremely long distance, which use the Normal  wires also can get 300m~500m distance



* Low frequency point to point transmission mode, which avoid CVBS chromaticity crosstalk phenomenon, reflects the strong anti interference ability



* Real time preview, without delay, trailing and lossing image



* Easy and simple to debug & install, which instead of the Old Analog Security System without rewiring.





Specification:



Model	MPT05-AH13F
Mechanical
	Preset : 360°/sec
Pan/Tilt Speed	Manual:0.05~360°/sec (proportional to zoom)
	Auto Pan : 1~180°/sec
Pan/Tilt Range	Pan :0~360°(Continuous)
	Tilt: 0~180°
Preset	128 presets
Other Functions	Auto Flip, Auto Parking, Power up Action etc.
Operation
OSD Menu	English
Communication	RS485
Baud Rate	2400bps,4800bps,9600bps
Protocol	Pelco-P/D, Special protocols available
General
Power Supply	DC12V2A
Work Temperature	-10°C~+50°C
Work Humidity	Max 90%
Help Selection	Ceiling/Wall mounting/Hoisting
Camera
CCD Sensor	1/3”1.3 Mega Pixel Progressive Scan CMOS
Horizontal Resolution	960P
Max Pixels	1280x960
S/N Ratio	52dB(AGC off)
Zoom	6mm MegaPixel fixed lens
Min. Illumination	0.7Lux (Color),0.02Lux(B/W), F1.8, 50 IRE
White Balance	Auto
Shutter Speed	1/50~1/120000sec



Product Image:
