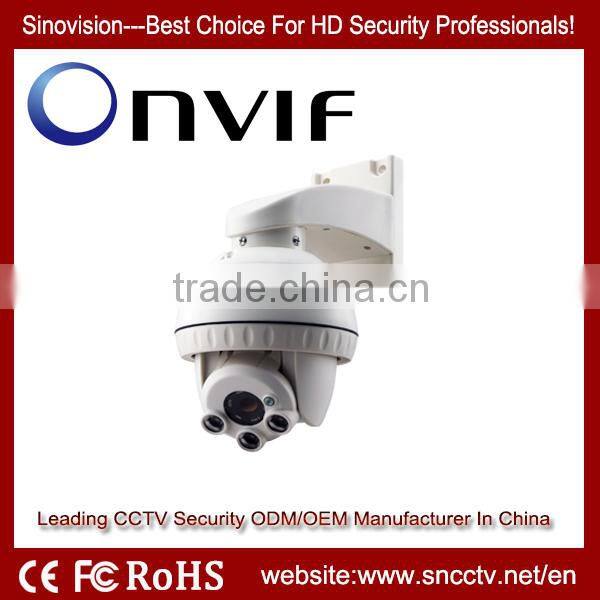

Full hd Cctv Camera 1080p ip Ptz Camera 10x Zoom

Name: Full hd Cctv Camera 1080p ip Ptz Camera 10x Zoom
Brand: SINOVISION
SKU: 123470925
Availability: InStock

US$ 111 - 127 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SINOVISION

Model Number:

SN-IPCH13-MPT06-10

Sinovision Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SINOVISION

Model Number SN-IPCH13-MPT06-10

Specifications

full hd cctv camera 1080p ip ptz camera 10x zoom
IR Distance 30m(3PCS Powerful Array LED);
10X Optical Zoom, up to 2.0M

full hd cctv camera 1080p ip ptz camera 10x zoom

1080p ip ptz camera

1. Mini 4" IR Color Mini IP speed dome camera,

2. IR Distance 30m(3PCS Powerful Array LED);

3. 10X Optical Zoom

4. Internal video IR Sync,Day/Night Auto Switch;

5. 128pcs preset points ,Manual control:180°/s,Horizontal: 360°,Vertical:90°,

6.OSD Menu

7,H.264 video coding,

8,Support: TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP,

9, ONVIF, ICR, Low lux,Reliablity and compatibility, low streams and high resolution image.

Model	SN-IPCH13-MPT06-10
Mechanical
	Preset : 360°/sec
Pan/Tilt Speed	Manual:0.05~360°/sec (proportional to zoom)
	Auto Pan : 1~180°/sec
Pan/Tilt Range	Pan :0~360°(Continuous)
Pan/Tilt Range	Tilt: 0~180°
Preset	128 presets
Other Functions	Auto Flip, Auto Parking, Power up Action etc.
Operation
OSD Menu	English
Communication	RS485
Baud Rate	2400bps,4800bps,9600bps
Protocol	Pelco-P/D, Special protocols available
General
Power Supply	DC12V2A
Work Temperature	-10°C~+50°C
Work Humidity	Max 90%
Help Selection	Ceiling/Wall mounting/Hoisting
Camera
CCD Sensor	1/3”SONY SUPER HAD CCD
Horizontal Resolution	960H High Resolution
Max Pixels	PAL:795(H) x508(V) NTSC:811(H)x508(V)
S/N Ratio	52dB(AGC off)
Zoom	10X Zoom lens, 6mm fixed lens optional
Min. Illumination	0.7Lux (Color),0.02Lux(B/W), F1.8, 50 IRE
White Balance	Auto
Shutter Speed	1/50~1/120000sec
