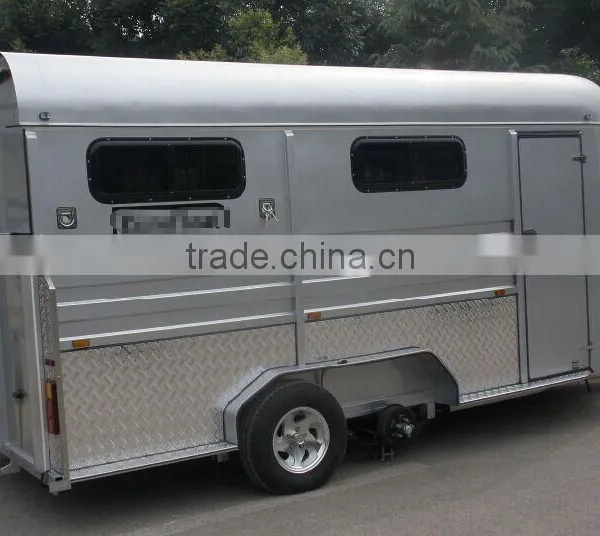

3 horse angle load horse float deluxe
1. The double hot dip galvanized chassis offers a 15-20 years guarantee against rusting in bad working condition.
2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.
3. 50*50 axles making the trailer more strong.
4. 17.5mm ultra thick anti-slip rupper floor
5. Water tank including the level display , Show you the detailed information .
6. protection cover for gas struts in tailgate .
7.5MTs’ gooseneck adopt gas brake .
8.Beautiful style of closed front .
9. FRP roof is much tougher
10. Upgated closed inner side stainless steel horse ring is tougher and more convenient , water proof and prevent rust .
11. Button lock in the cupboard , practical and convenient .
12. Australian standard coded Trailer chain.
Specification :
| Model | STD-3HAL-L500 |
| Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
| Frame Material: double hot dip galvanized RHS (2.5mm) | |
| Body Panel: galvanized sheet (1-1.5mm) | |
| Roof: Special molded FRP 3mm | |
| Brake | double axle electric brakes |
| Drawbar | Drawbar Checker Plate 1.2mm aluminium |
| Drawbar Safety Chain two & Bracing Wheel one | |
| Suspension | Roll rocker tandem spring 8 plate |
| Axles | Two special trailer axles 50*50mm |
| Wheels & Tyre | Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel |
| Rubber Matting | 18mm special plywood for floor& ramp door |
| Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
| Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet | |
| Windows& Doors | Front Window (mm) 1220*610mm |

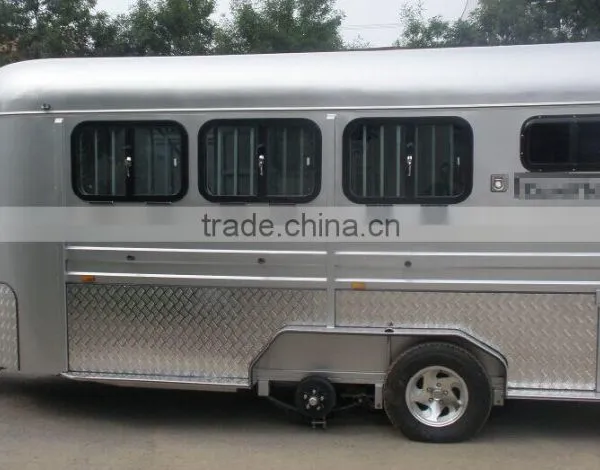

| Side Windows 6 Drop-down windows 3 | |
| Vents two large size upturning ventilation windows | |
| Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut | |
| Ramp Door (mm) 2030*1210 | |
| Side Door (mm) 1730*615 | |
| Hinges for Rear Upper Door special 6mm diameter copper hinges | |
| Supporting Wheel | Swing-able knight supporting wheels to make parking safe and reliable |
| Lights& Petro Reflectors | Trailer Plug Seven-prongs plug |
| Rear Lights brackets aluminium | |
| LED interior lights, two small LED sidelights, two LED combination taillights | |
| Retro Reflectors 8 | |
| Auxiliary Fittings | Cupboard Front optional |

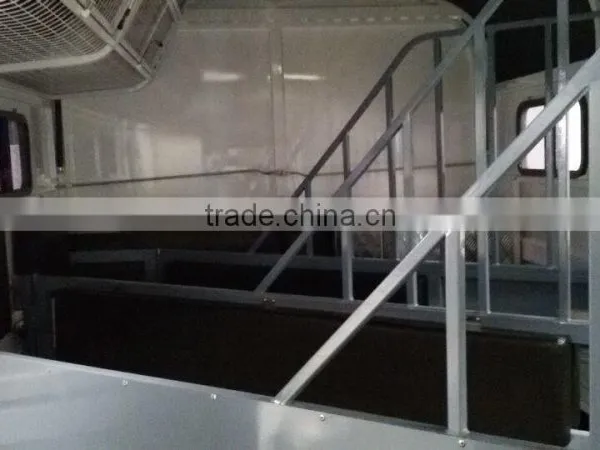

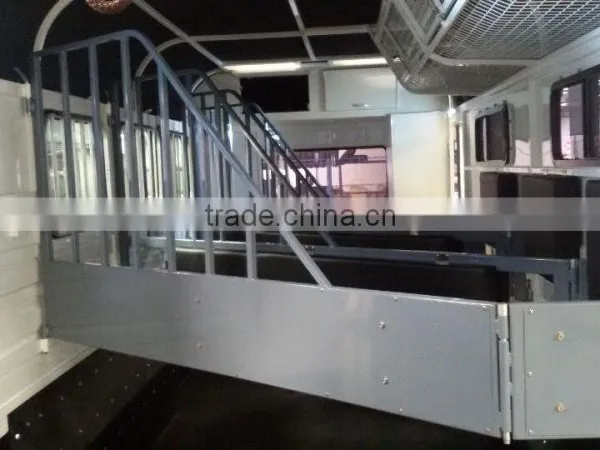

| Horse Protection Frame fully padded | |
| Horse Ring 7 | |

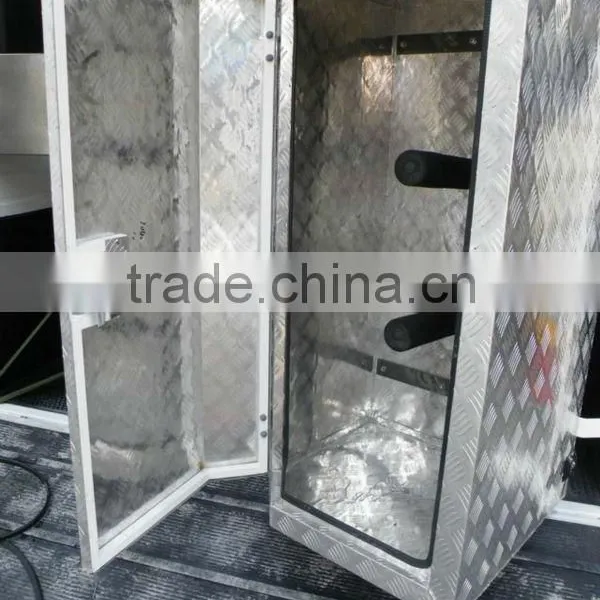

| Saddle Rack in saddle box(1200mm height for 3 saddles) | |
| Rug Rack Side | |
| Saddle Box One | |
| Dimensions | Body Dimension (L x W x H: mm) : 5075 x 1980 x 2230 |
| Inner Dimension (L x W x H: mm) : 5025 x 1930 x 2155 | |
| Overall Dimension (L x W x H: mm): 5925 x 2290 x 2600 | |
| Length of Tone (mm): 850 | |
| Empty Weight | 1900 KGs |
| Carrying Capacity | 2500 KGs |
