Specifications
1.safe and high quality;2.saled directly by factory at the best price;
3.rich types, specially designed
| Model | STD-3HAL-L500 |
| Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
| Frame Material: double hot dip galvanized RHS (2.5mm) | |
| Body Panel: galvanized sheet (1-1.5mm) | |
| Roof: Special molded FRP 3mm | |
| Brake | double axle electric brakes |
| Drawbar | Drawbar Checker Plate 1.2mm aluminium |
| Drawbar Safety Chain two & Bracing Wheel one | |
| Suspension | Roll rocker tandem spring 8 plate |
| Axles | Two special trailer axles 50*50mm |
| Wheels & Tyre | Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel |
| Rubber Matting | 18mm special plywood for floor& ramp door |
| Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
| Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet | |
| Windows& Doors | Front Window (mm) 1220*610mm |
| Side Windows 6 Drop-down windows 3 | |
| Vents two large size upturning ventilation windows | |

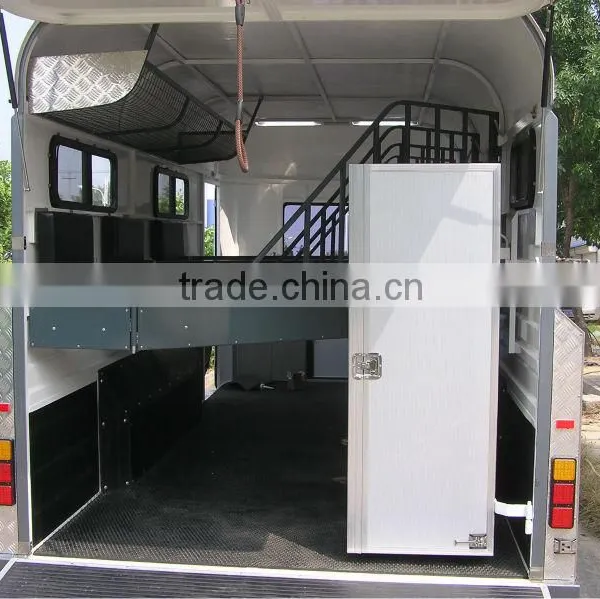

| Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut | |
| Ramp Door (mm) 2030*1210 | |
| Side Door (mm) 1730*615 | |
| Hinges for Rear Upper Door special 6mm diameter copper hinges | |
| Supporting Wheel | Swing-able knight supporting wheels to make parking safe and reliable |
| Lights& Petro Reflectors | Trailer Plug Seven-prongs plug |
| Rear Lights brackets aluminium | |
| LED interior lights, two small LED sidelights, two LED combination taillights | |
| Retro Reflectors 8 | |

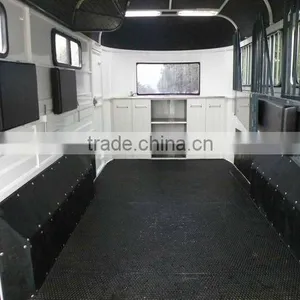

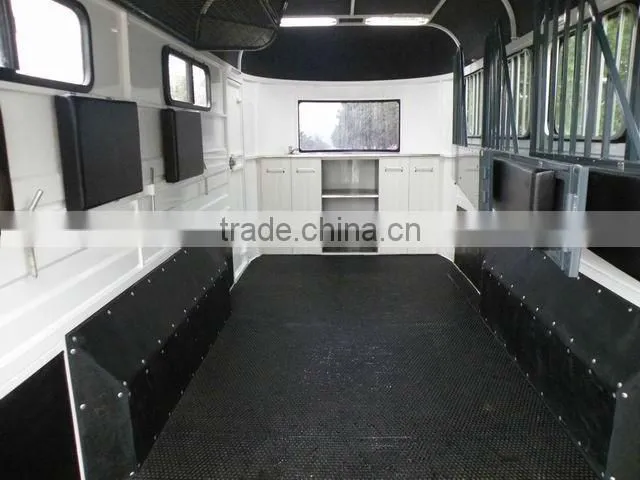

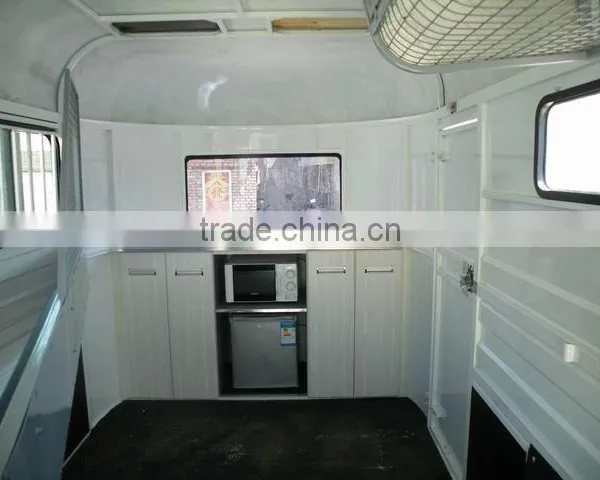

| Auxiliary Fittings | Cupboard Front optional |
| Horse Protection Frame fully padded | |
| Horse Ring 7 | |

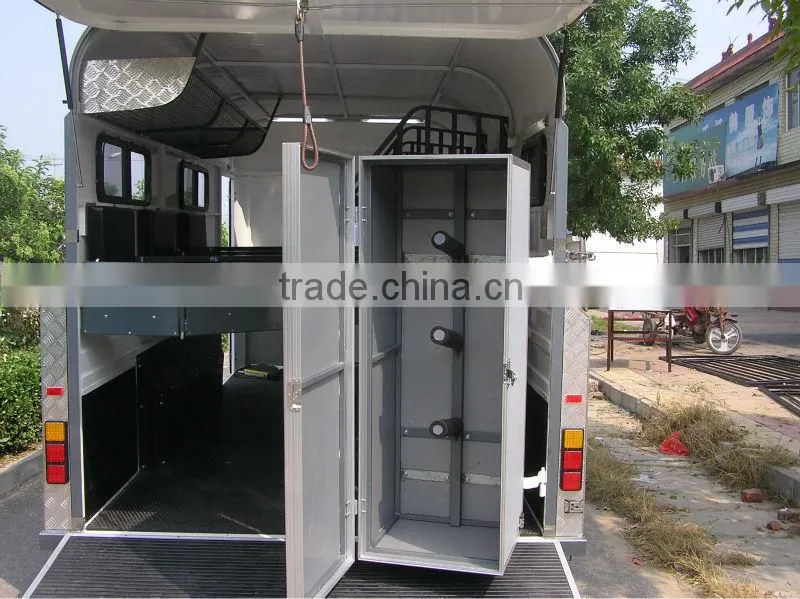

| Saddle Rack in saddle box(1200mm height for 3 saddles) | |
| Rug Rack Side | |
| Saddle Box One | |
| Dimensions | Body Dimension (L x W x H: mm) : 5075 x 1980 x 2230 |
| Inner Dimension (L x W x H: mm) : 5025 x 1930 x 2155 | |
| Overall Dimension (L x W x H: mm): 5925 x 2290 x 2600 | |
| Length of Tone (mm): 850 | |
| Empty Weight | 1900 KGs |
| Carrying Capacity | 2500 KGs |
Shandong Standar Trailer Co., Ltd. is one of the leading manufacturers in China, with the registered capital of RMB10,000,000. We are a professional trailer manufacturer. Our trailers are sent directly to you from our workshop. We offer one-stop services at the most favorable prices.
With many years' experience in the production, we are a professional horse float manufacturer, having our own R&D and many experienced workers.
We know customers' needs and requirements very well. We conform to ADRs Standard. As the English saying says, "The devil is in the detail". We strive for perfection in every detail ranging from the design, welding, painting and installation.
We love horses and know their requirements. We are committed to providing safe and comfortable transportation.
We are in the beautiful coastal province! Shandong, with convenient transportation. We believe that we will be your best partner in the following days. All friends are welcome to come to our factory to visit and negotiate business.
