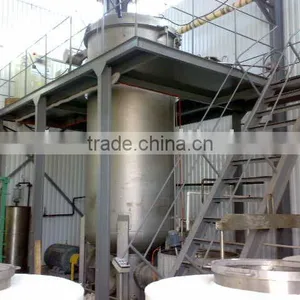

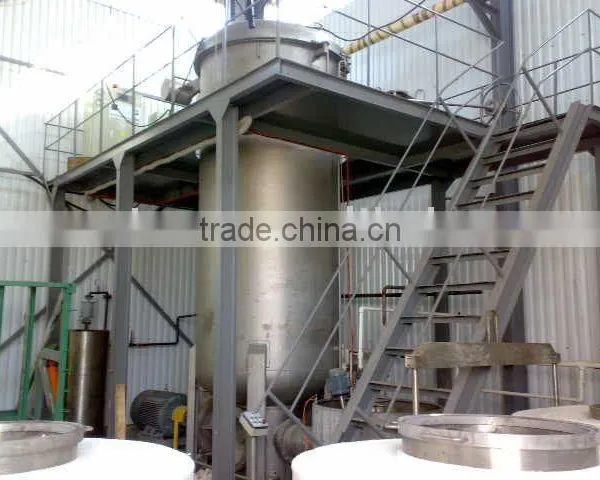

DF241-180 Medical Absorbent Cotton Bleaching Machine

Specifications

DF241 Medical Bleaching /Dyeing Machine is specially used for degreasing,bleaching medical gauze,medical absorbent cotton, et

DF241-180 Medical Material Bleaching Dyeing Machine is specially used for the process of skimming milk,bleaching medical gauze,medical absorbent cotton,etc.

1.The pot body and the pipe of the equipment are refined of qualified SUS316L stainless steel board, being soldering with Panasonic automatical welder without any poor soldering in jointing and in artistic shape.

2.It is adopted Caixiang passives of Taiwan with frequency conversion drive in pump.

3.It is in high automatization,the whole process of boiling and bleaching and bleaching is going on in the control of computer with stable program.

4.Feedback of many clients:the equipment is relibale in performance and could take the place of the imported equipment in the same type.



DF241 bleaching machine has the following functions:

Air pressurizing type

Bath ratio is adjusted according to the variety of yarn and dyeing process, or it can be selected by adjusting dyeing bath volume according to case may be. Greatly saving the energy source, water, steam.

Full fulling type

This machine has chemical material system(mixer and chemical material barrel), pressurizing and material loading system(auxiliary pump), internal and external dyeing liquor circulatiou system(cooler). During dyeing process the fabric processing requirements can be met under room temperature and high pressure and high temperature and high pressure featuring wide application and good dyeing chroma and luminosity.

Dyeing machine automation

This machine is of automation to various extent to meet various requirement, with the automation. Range from simple control of temperature rising and lowering according to operator's clew to automatic control over loading vessel and dosage system operation with exception of yam inlet. Outlet and sampling dyeing vat.

Safety and convenience

This machine ues self-sealing of pot rim. Combination safety device of pneumatic pot rim locking and pneumatic pot cover opening and closing device, being of easy and reliable operation.



Charateristics:

1. when coloring, the temperature in the whole process is in the control of computers with high precision

2.mode of heating: indirectly heating by coiling pipes or heating with heat exchanger

3. there are all kinds of optional pumps for clients

This machine can be designed according to customers's needs for machine capacity.
