Chinese FX Car Board Roll Forming Machine

FOB Price

US$ 35,000 - 68,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Feixiang
Model Number	FX- CAR PANEL	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Chinese FX car board roll forming machine

1.Parameter

Configurations	Manual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electric-Motor, Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Delta Inverter
Main Frame	300mm H-Beam
Main Power	4 kw
Pump Power	4 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12m/min
Roll Station	according to drawing
Roller Diameter	80mm
Hydraulic Pressure	10-12MPa
Forming Size	1088mm
Feeding Thickness	1.0-1.8mm
Feeding Width	AS customer's request
Backboard Thickness	14mm
Chain Size	33mm
Cutter Standard	Cr12
Roller Standard	45# steel with heat treatment coating Cr
Cr-Plating Size	0.05mm
Overall Size	7500×1000×1200mm
Total Weight	4 T

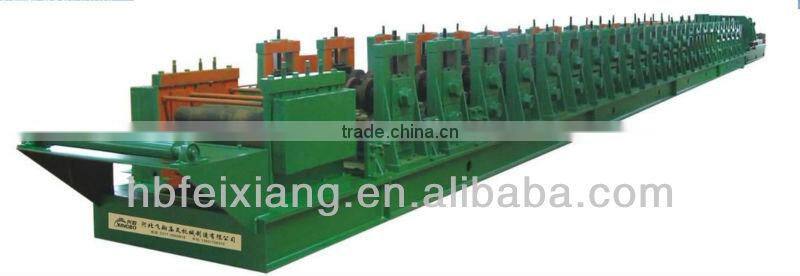

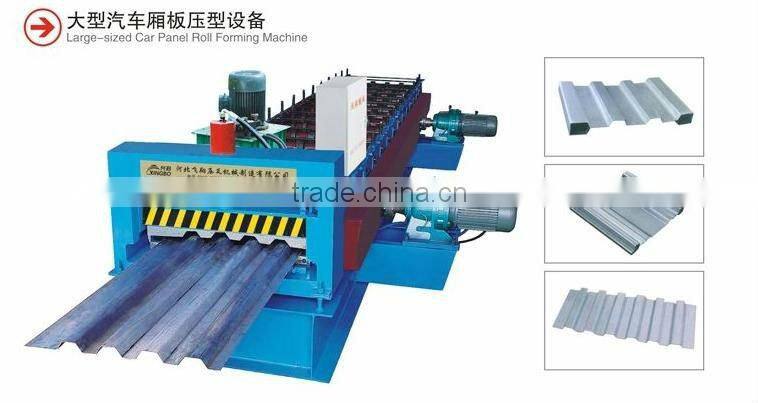

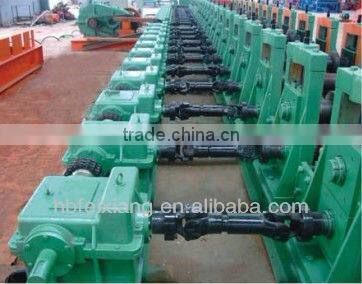

2.Pictures about he machine

3.My business card

4.Our certificates

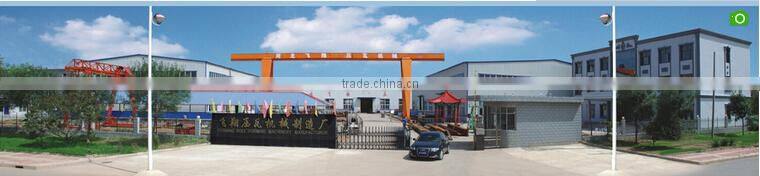

5.Our company

Hebei Feixiang Roll Forming Machinery Co., Ltd.: Contact nameSam Li
Chat Now; Phone86-317-5569916 8297121; AddressNo. 88, Yingbin Road, Industrial Development Zone
