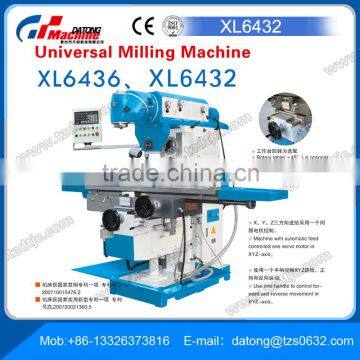

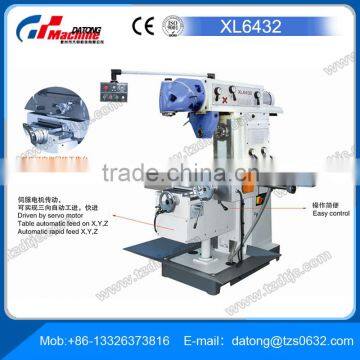

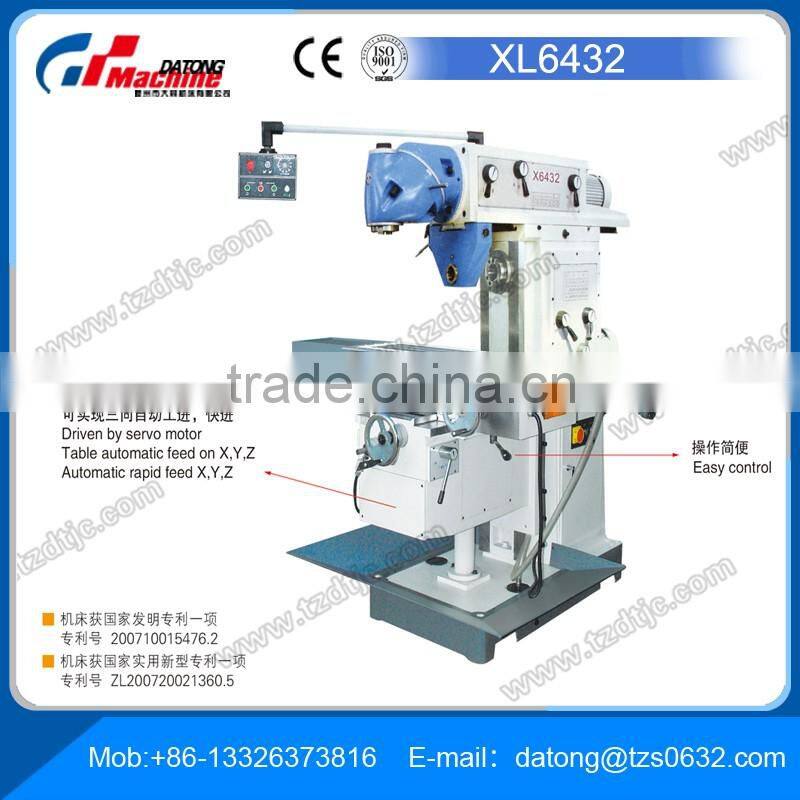

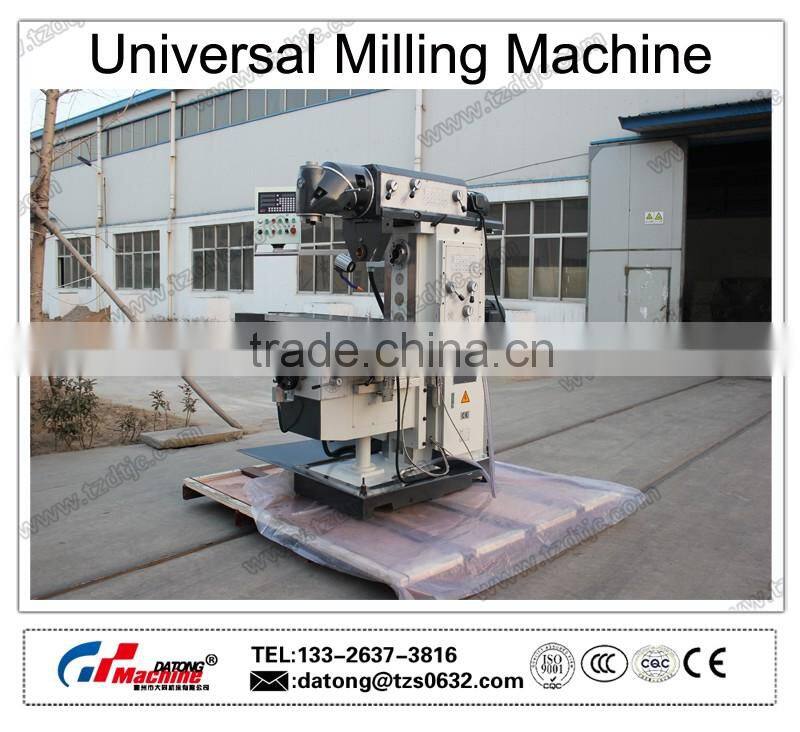

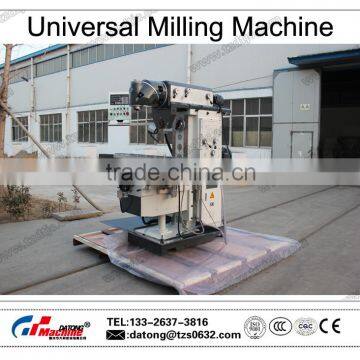

Swivel Head Type Multipurpose Milling Machine XL6432
Feature:
1. This milling machine with universal milling head which can swivel 360 degress
2. Swivel talbe can be ordered
3.Driven by servo motor
Specification:
Model |
Unit |
XL6432 |
XL6432C |
XL6432CL |
Table size |
mm |
1325×320 |
1600×320 |
|
Table travel (X/Y/Z) |
mm |
750/320/460 |
1100/320/450 |
1300/320/450 |
Table feed(X/Y/Z) |
mm/min |
30~750/20~500/15~375 |
||
Spindle taper |
|
7:24 IS050 (H) 7:24 IS040 (V) |
||
Arm travel |
mm |
550 |
||
|
Distance between spindle nose and table surface |
mm |
196-656
|
||
|
Distance between horizontal nose and table surface |
mm |
20-480 |
20-470 |
|
|
Distance between spindle axis and arm surface |
mm |
245 |
||
Spindle speed range |
r.p.m |
12steps 60-1750 (V) 12steps 60-1800 (H) |
||
T-slots(NO./width/pitch) |
mm |
3/18/80 |
||
Main motor power |
Kw |
5.5 (H) 4 (V) |
||
3 to feed Ac servo motor torque |
N.m |
10 |
||
Overall size |
mm |
1800×2100 ×2000 |
2245×2100 ×2000 |
2520×2100 ×2000 |
Net weight |
kg |
2635 |
2700 |
2750 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
