X2014 Heavy Duty Gantry Milling Machine For Sale

X2014 Heavy Duty Gantry Milling Machine For Sale photo-1
X2014 Heavy Duty Gantry Milling Machine For Sale photo-2
X2014 Heavy Duty Gantry Milling Machine For Sale photo-3
X2014 Heavy Duty Gantry Milling Machine For Sale photo-4
X2014 Heavy Duty Gantry Milling Machine For Sale photo-5
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao.tianjin.shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number X2014
Type Horizontal
CNC or Not Normal
Power(W) 7.5KW
Weight kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

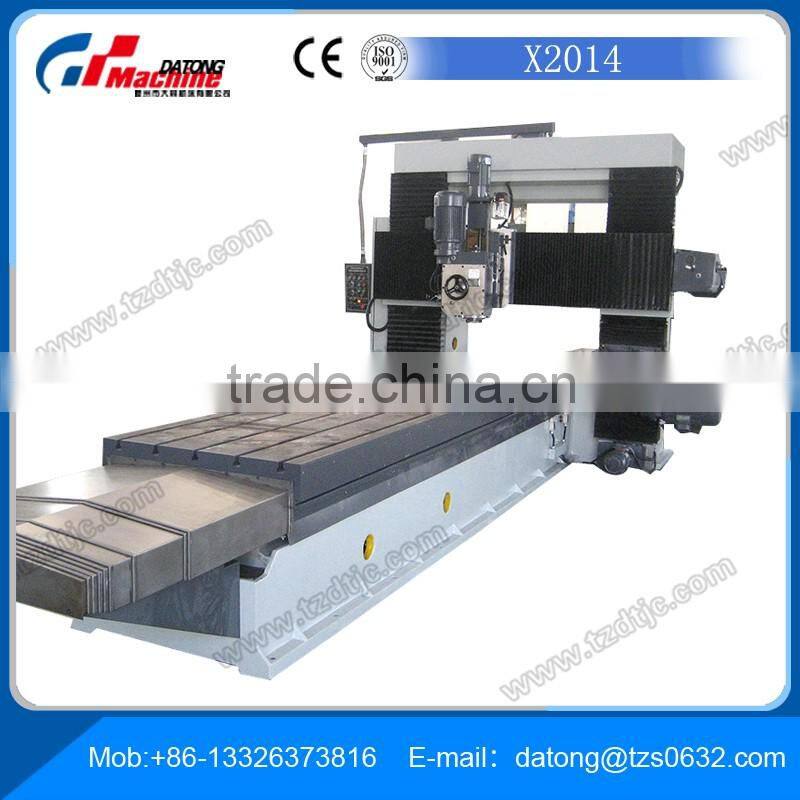

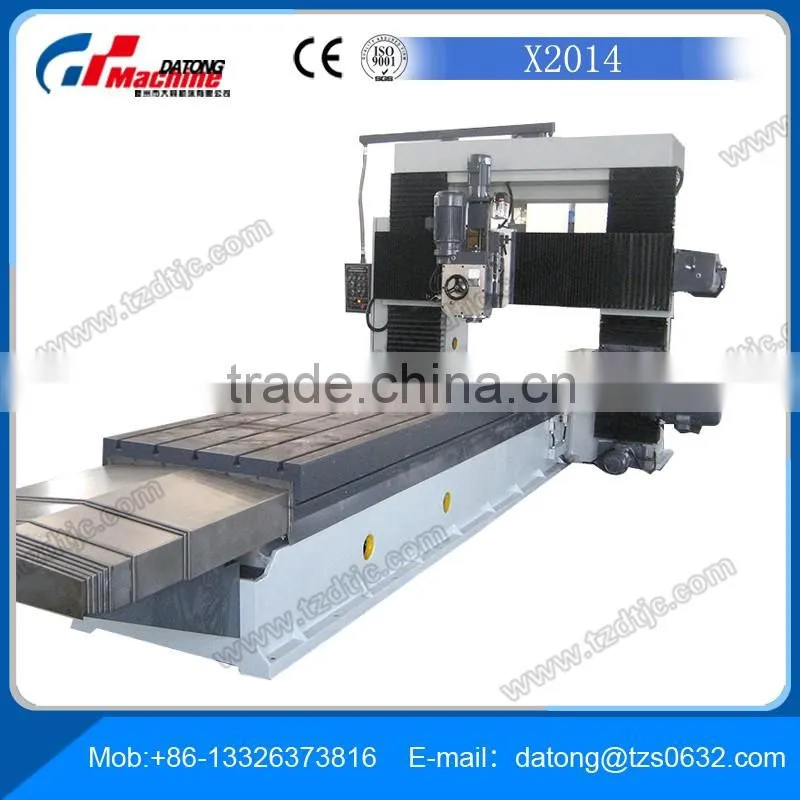

 X2014 Heavy Duty Gantry Milling Machine For Sale







Specification:



Specification

X2010

X2012

X2014

Max. travel

Length

mm

2000/3000/4000



Width

mm

1300

1400

1800



Height

mm

1000

1000/1200

Distance between columns

mm

1440

1600

1920

Table size

Length

mm

2000/3000/4000



Width

mm

1000

1250

1400

Table feeding speed

Feed

mm/min

20-360

25-450



Rapid travel

mm/min

1050

1300

Spindle taper

 7:24, ISO50

Spindle speed step

r/min

6steps  82-505

Spindle swivel angle

°

 ±35°

Feed rate of milling head

mm

Along the cross rail:65/320/890

Side milling head:50/265/730

Power of spindle motor

kw

7.5

Power of table motor

kw

4/5.5/7.5

5.5/7.5(3000/4000)

Overall size

Length

mm

4550/7000/9000

5000/7000/9000



Width

mm

3200

3550



Height

mm

2550

2950/3150







Product Description:



The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.





Optional equipment:



Airtight cover

DRO

Pneumatic tool locking mechanism

Milling vice





Detailed Images

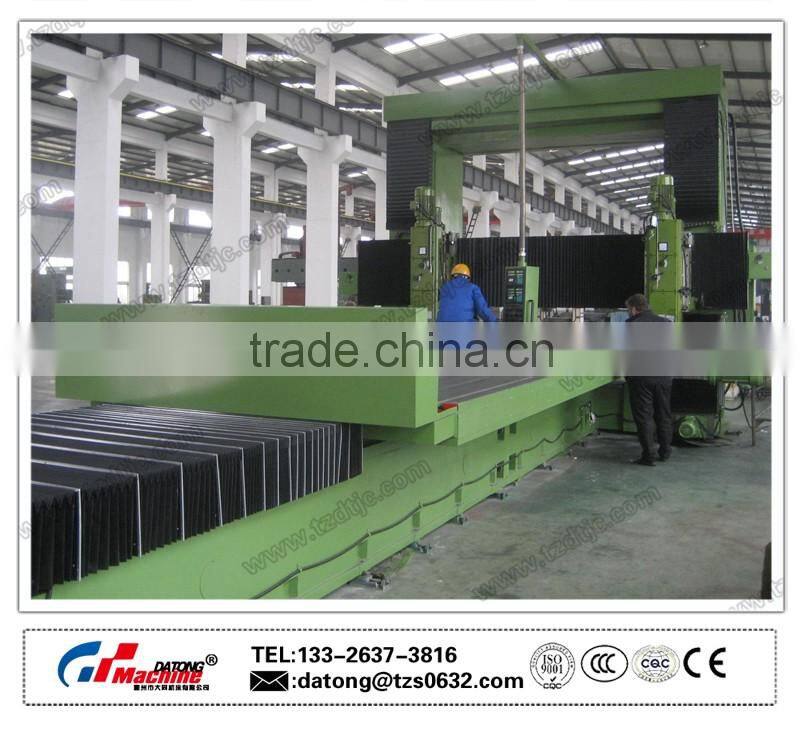

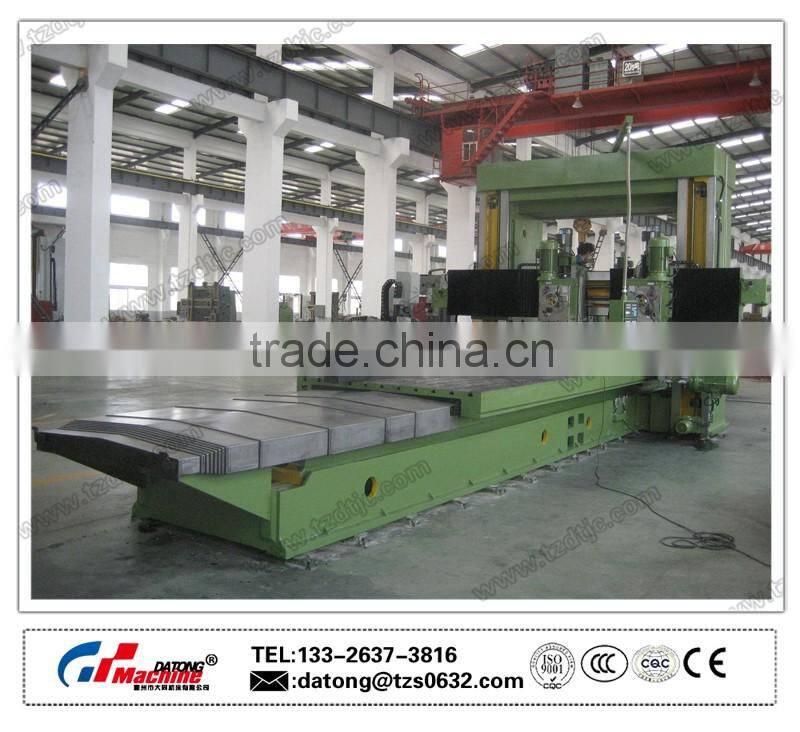

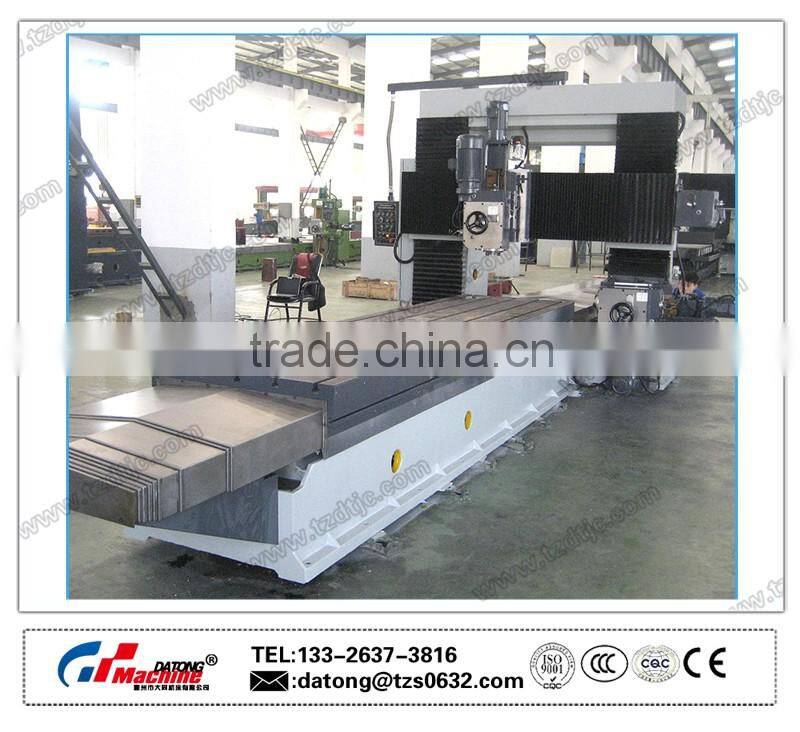

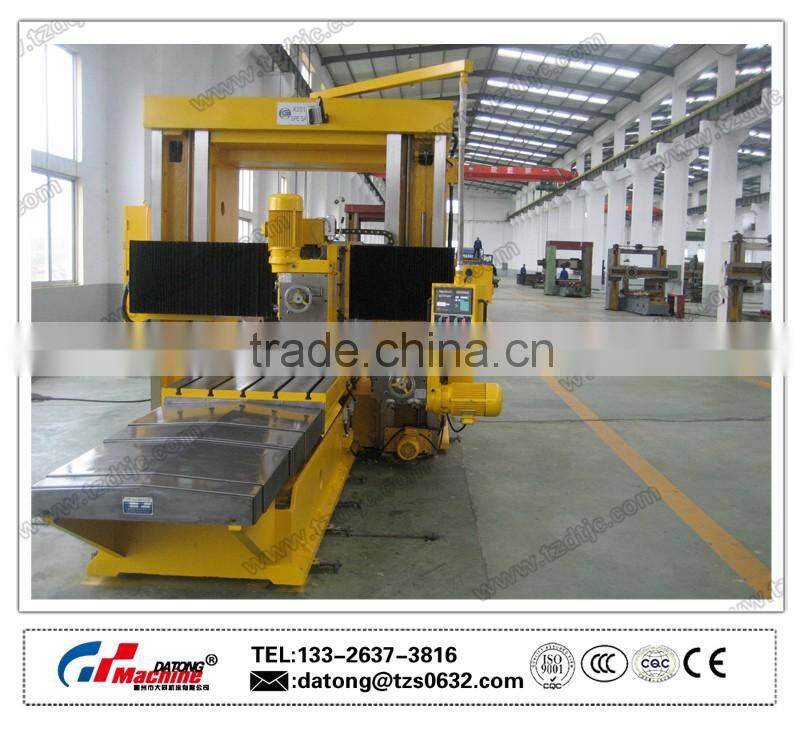

X2014 Heavy Duty Gantry Milling Machine For SaleX2014 Heavy Duty Gantry Milling Machine For SaleX2014 Heavy Duty Gantry Milling Machine For SaleX2014 Heavy Duty Gantry Milling Machine For Sale
