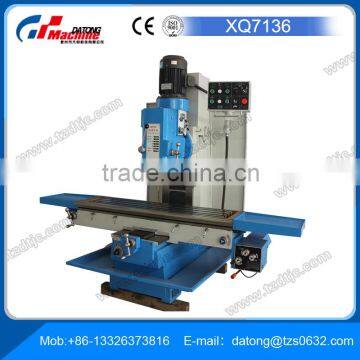

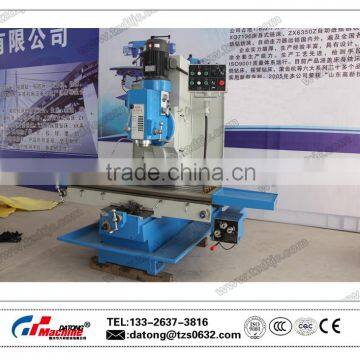

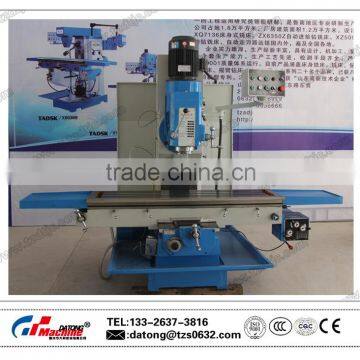

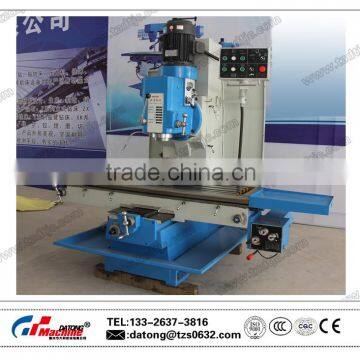

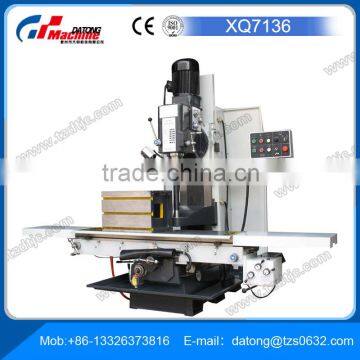

XQ7136 Bed Type Universal Milling Machine
Feature:
1.Rectangular guide,good stability.
2.Table X,Y are automatic feed gear,Z for the conversion to electric auto lift,X,Y automatic feeder with overload protection.
3.Extended length and thickness saddle,more rigid and stable.
4.Vertical mill head can rotate 90.
5.Auxiliary bracket for easy large workpiece,Stability.
Specification:
Model |
XQ7136 |
Table size |
1500*360mm |
Table travel |
1250*440*880mm |
Spindle boring |
7:24 ISO50 |
Spindle travel |
100mm |
Spindle to work table distance |
20-820mm |
Spindle to column distance |
400mm |
Vertical milling head rotation angle |
90degree |
Table size feed |
8 step 15/137 mm/min (fast feed 540mm/min) |
Table vertical lifting speed |
Stepless |
Main motor |
5500w |
Lift motor |
750w |
Table feed motor |
750w |
Cooling pump motor |
90w |
Out size |
2800*1830*2430mm |
Weigh |
3000kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
