LC Fiber Optic Connector with 45 degree 90 degree Boot

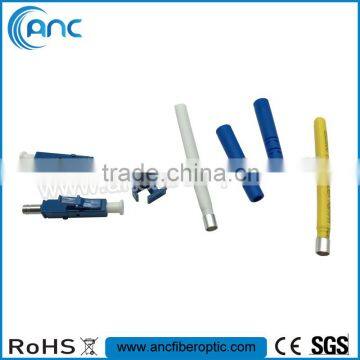

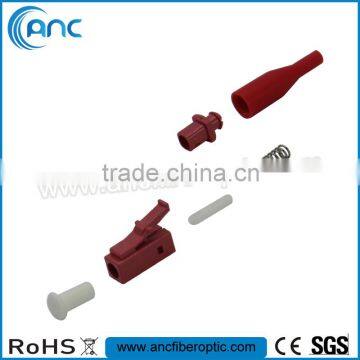

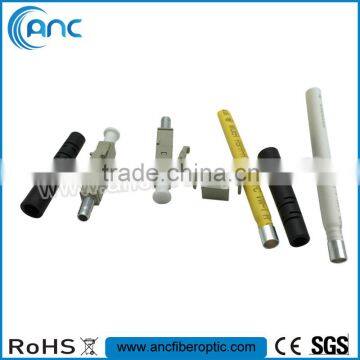

LC Fiber Optic Connector manufactured by ANC International Co., Limited is fully compliant with International Industry Standard and compatible with LC Fiber Connection family including Single Mode/Multimode Fiber LC Connector available and accommodating 0.9mm, 2.0mm or 3.0mm boot type optional. All the LC Fiber Optic Connectors can be offered in pre-assembled or unassembled (kit) formats.
Specification
LC Fibre Connector Type: SM LC/PC, SM LC/APC, MM LC/PC OM3 connector available
LC Connector Boot Type: 0.9mm, 2.0mm, 3.0mm optional
LC Connector Color: Blue, Green, Beige, etc.

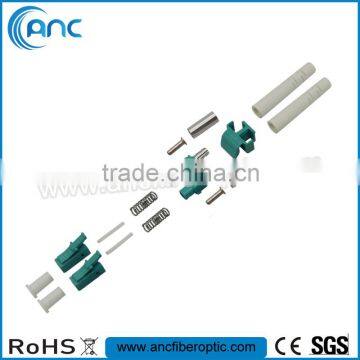

Simplex, Duplex, Uniboot, with Griphook LC Optical Connector optional
One-piece or Multi-piece LC Fiber Connector available
Features
Good concentricity of LC ceramic ferrule
Increase panel density with small size
RoHS compliant for all LC connector material
Usage
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Item |
Parameter |
|
Single-mode |
Multi-mode |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≥50 dB (PC), ≥60 dB (APC) |
|
Repeatability |
≤0.1dB |
|
Durability |
0.2dB Max. 1000 mattings |
|
Operating Temperature |
-40℃~+85℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
100PCS/Bag
ANC can produce customized fiber optic connectors at high quality, fast delivery and good price. The connectors include:
1. SC Simplex, Duplex Fiber Optic Connector with Round, Square or 45/90 degree Angled boot

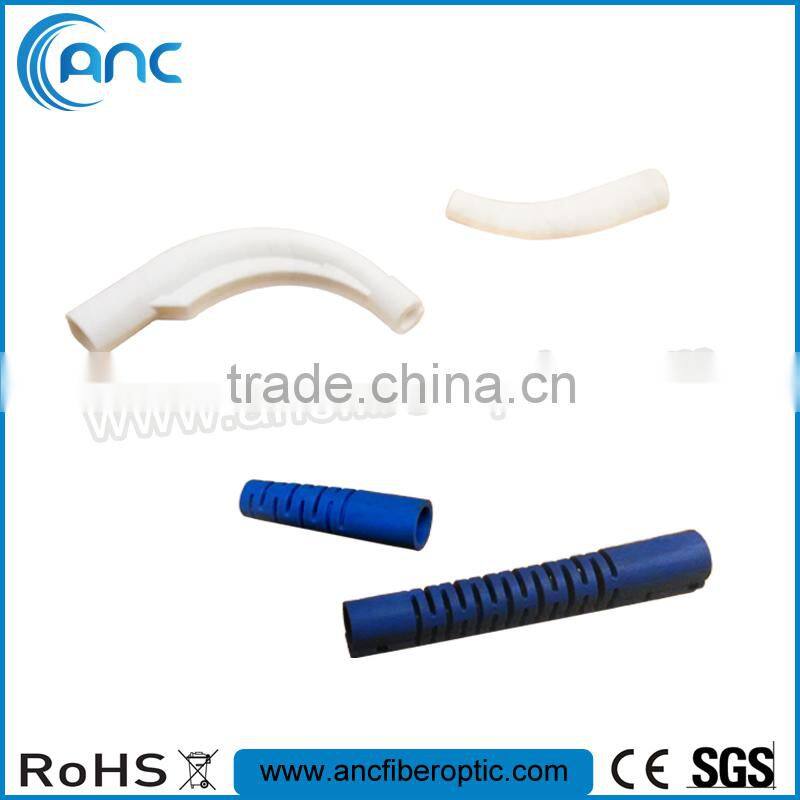

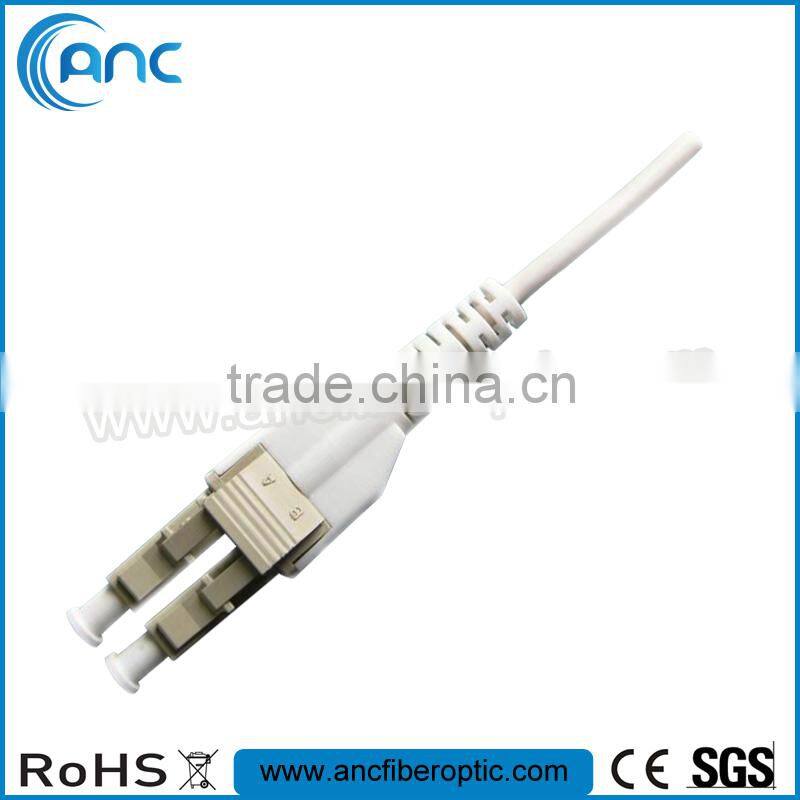

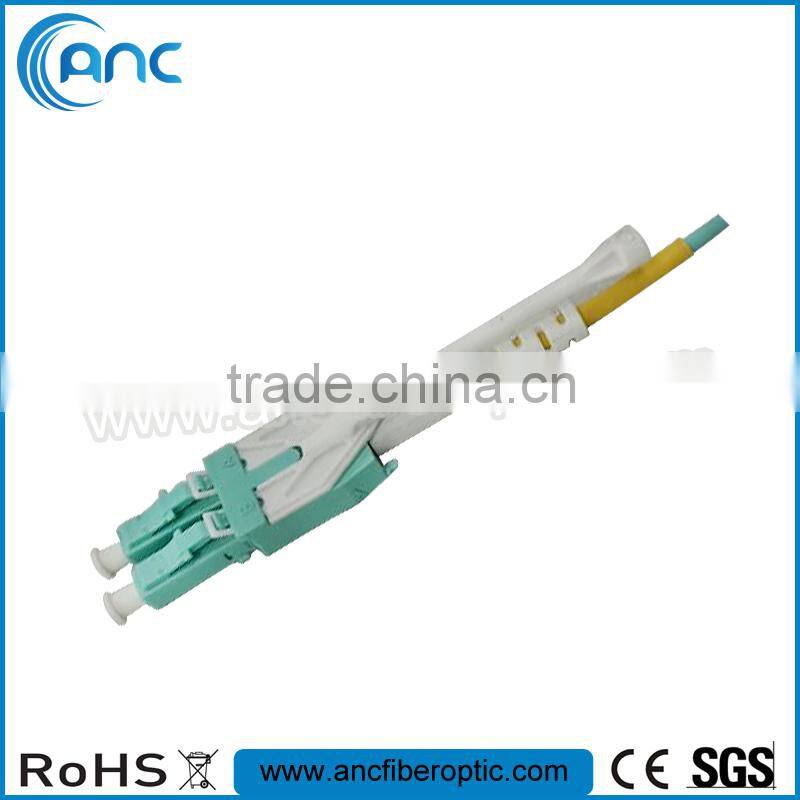

2. LC Simplex, Duplex Fiber Optic Connector with standard, short, angled, uni-boot and bendable boot

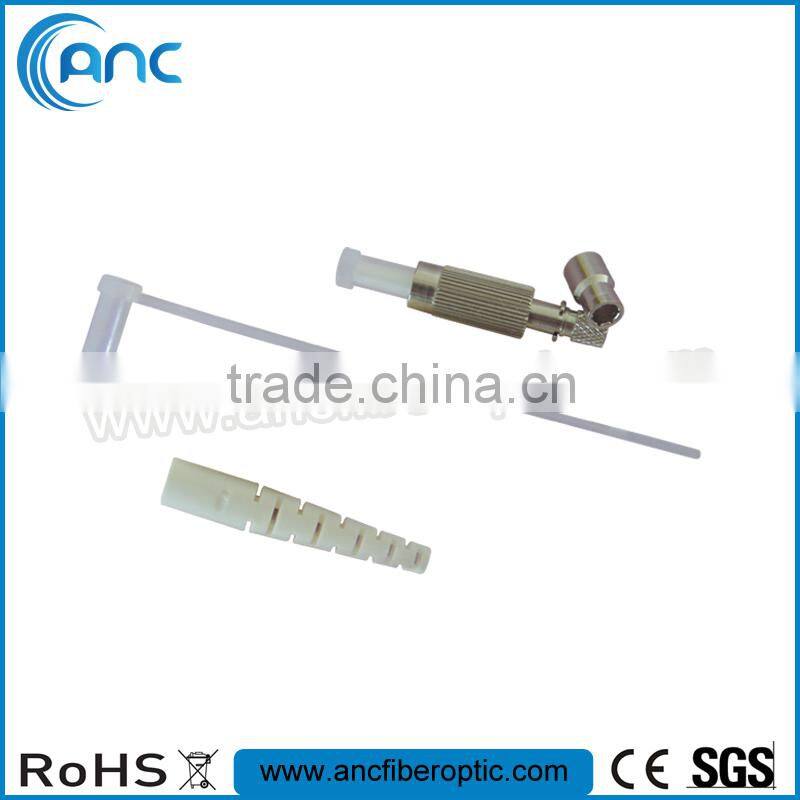

3. FC Fiber Optic Connector with varous boot color

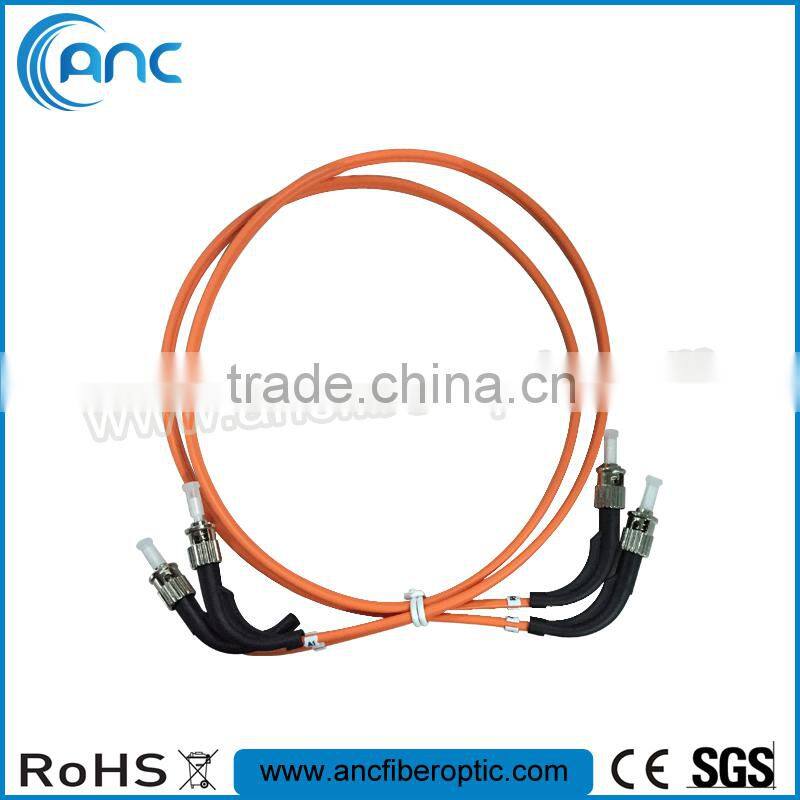

4. ST Fiber Optic Connector with varous boot color
5. E2000 Fiber Optic Connector with R&M or H&S or Diamond Brand
6. MPO Fiber Optic Connector with SENKO Brand
7. MTP Fiber Optic Connector with USCONEC Brand
8. SC, SCAPC, FC, FCAPC, LC, fast connector

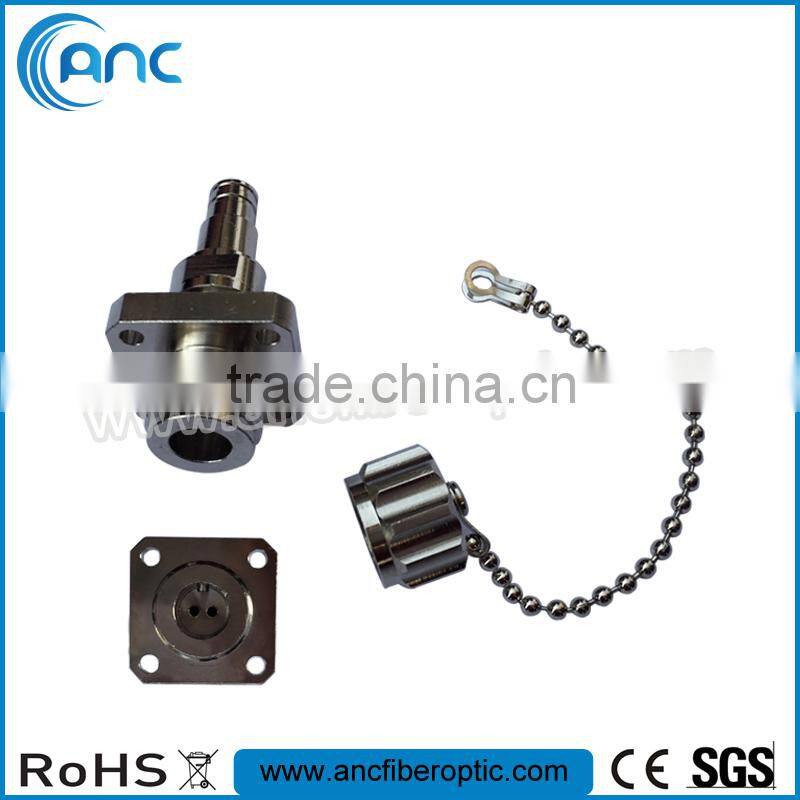

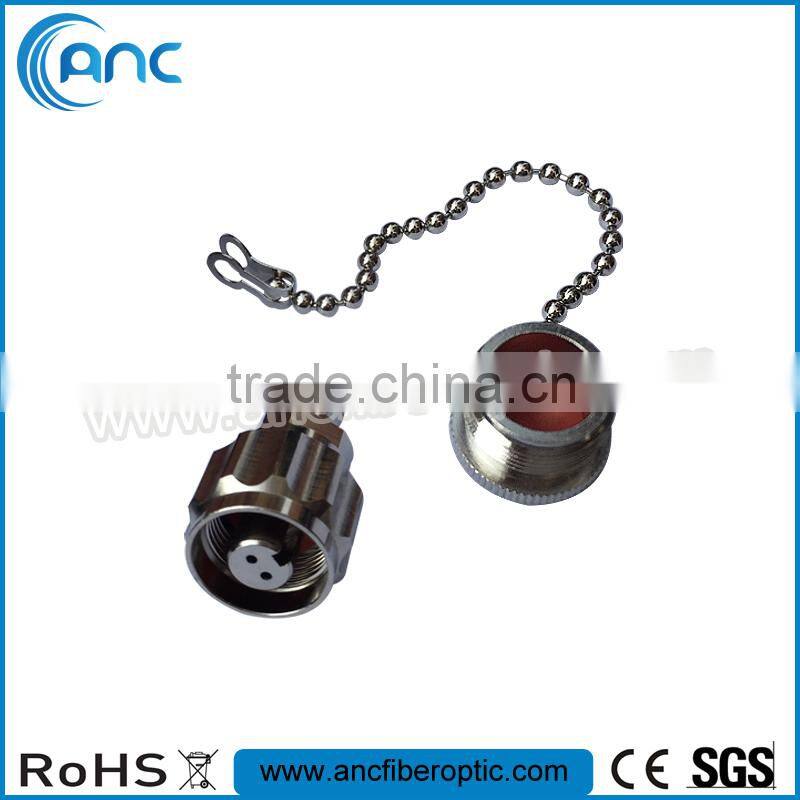

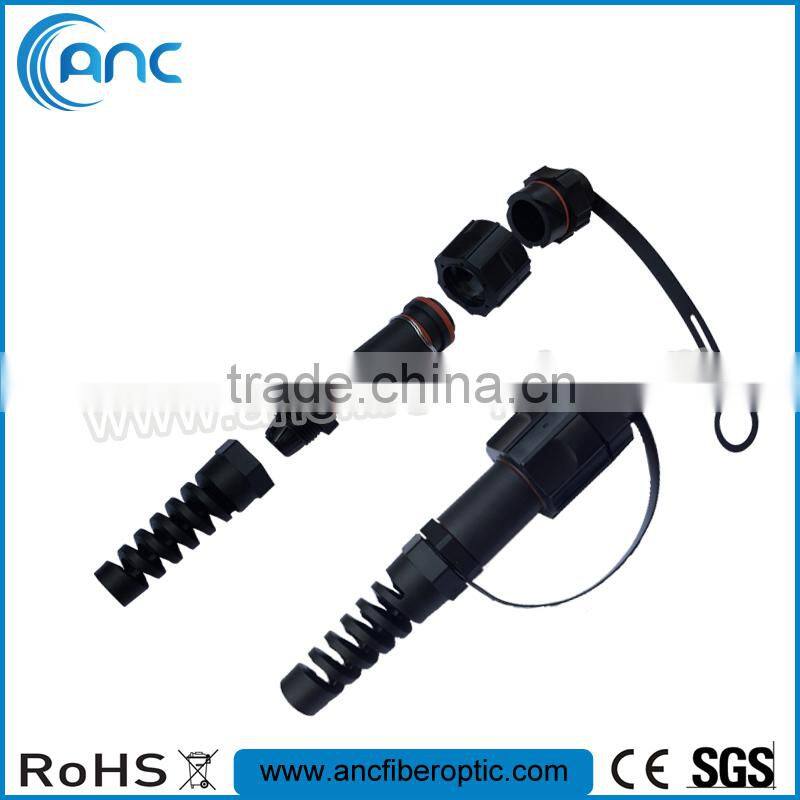

9. ODC, PDLC, ODVA connector and adapter
10. SMA Fiber Optic Connector with metal or ceramic ferrule
Featured Products

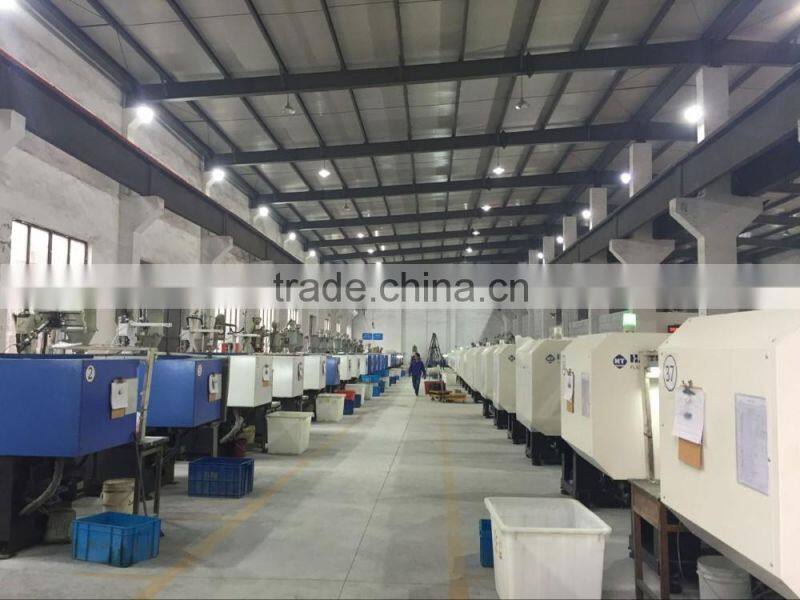

ANC Plastic Molding Production Line
