GYXTW Uni-tube 2-12 Core Armored Outdoor Fiber Optic Cable for Telecommunication

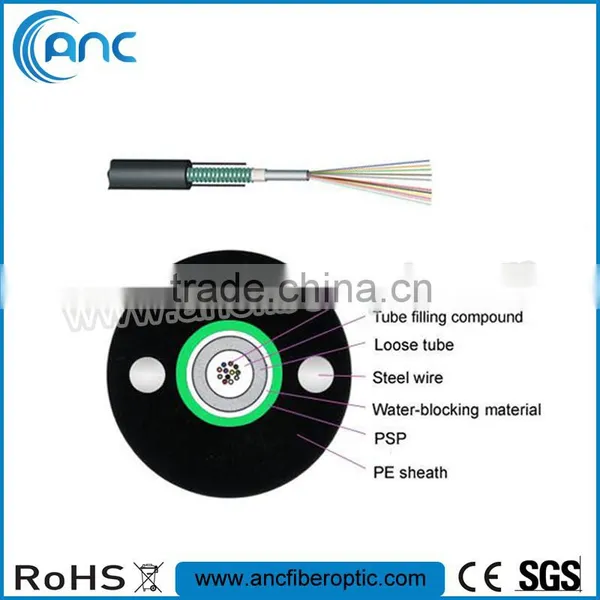

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Specification
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Usage
CATV & computer networks system
Usable in Duct, direct burial, aerial installation
Long-haul communication systems
Subscriber network systems
Local area network systems
Technical Data
Cable Type |
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistanc Long/Short N/100mm |
Bending Radius S/D mm |
GYXS/GYXTW-2~12 |
2~12 |
10.0 |
105 |
600/1500 |
300/1000 |
10D/20D |
GYXS/GY XTW-2~12 |
2~12 |
10.6 |
124 |
1000/3000 |
1000/3000 |
10D/20D |
GYXS/GY XTW-14~24 |
14~24 |
12.5 |
149 |
1000/3000 |
1000/3000 |
10D/20D |
GYXS/GY XTW-26~36 |
26~36 |
14.0 |
190 |
1000/3000 |
1000/3000 |
10D/20D |
GYXS/GY XTW-38~48 |
38~48 |
15.0 |
216 |
1000/3000 |
1000/3000 |
10D/20D |
Optical Characteristics
| ||||||||||||||||||||||||||||||||||||||||||||||||
ANC produces and sells below fiber optic cable.
1. 900um buffer fiber optic cable
2. Simplex/Duplex Zipcord/Duplex Round /Flat Duplex fiber optic cable
3. multi-fiber mini breakout fiber optic cable/distribution fiber cable/Breakout fiber optic cable
4. Indoor FTTH Cable/Outdoor FTTH Cable
5. Air blow fiber optic cable
6. Waterproof fiber optic cable/ indoor & outdoor fiber optic cable
7. Outdoor Cable GYXTW/JET/GYXY/GYTA/GYTS/GYFTY/GYTA53/GYTC8S/GYXTC8Y/ADSS
100% Factory Tested by EXFO OTDR
