12/24/36/48 Core Breakout Optical Fiber Cable
- 50000 Kilometer / Kilometers per Month
- Shenzhen
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | 12/24/36/48 Core Breakout Optical Fiber Cable |
Product Description

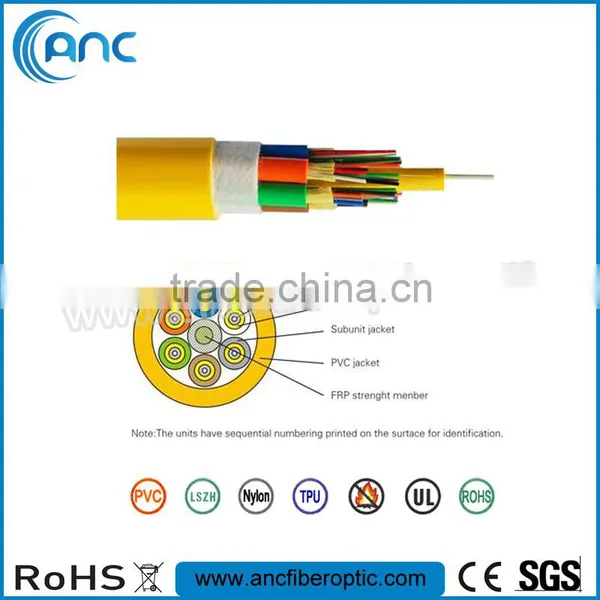

12/24/36/48 Core Breakout Optical Fiber Cable
Breakout Fiber Optic Cable is a favorite where rugged cables are desirable or direct termination without junction boxes, patch panels or other hardware is needed. They are made of several simplex cables bundled together inside a common jacket. This is a strong, rugged design, but is larger and more expensive than the distribution cables. It is suitable for conduit runs, riser and plenum applications. It's perfect for industrial applications where ruggedness is needed. Because each fiber is individually reinforced, this design allows for quick termination to connectors and does not require patch panels or boxes. Breakout cable can be more economic where fiber count isn't too large and distances too long, because is requires so much less labor to terminate.
Specification
Fungus and UV Resistant High-Performance outer jacket
Water-Blocked

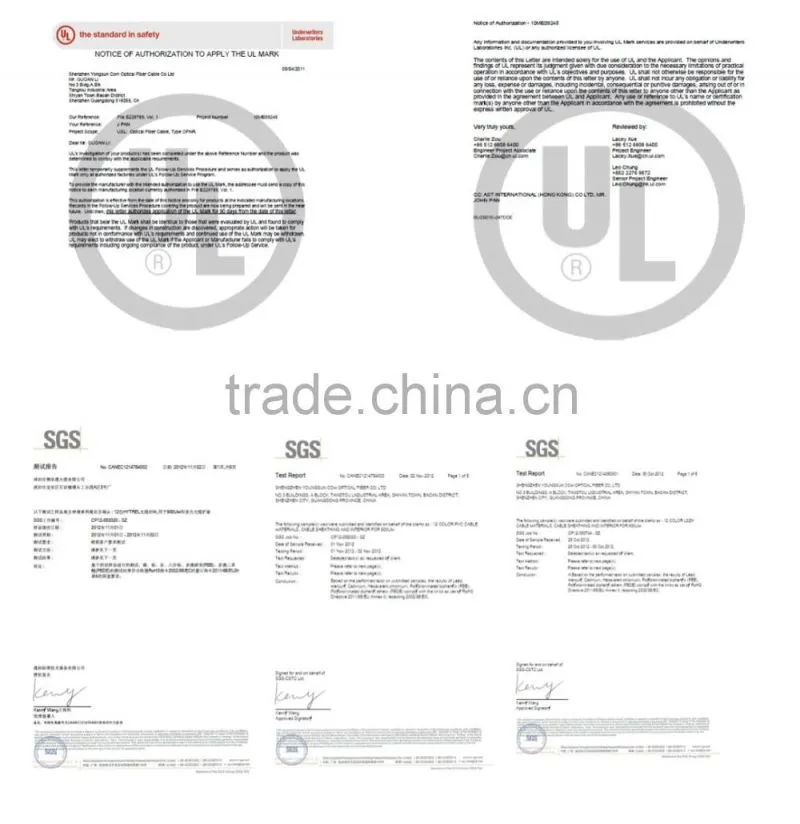

UL 1666 OFNR Riser
Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR) - MSHA Approved
ICEA S-104-696
Features
Compatible with all standard fiber optic connectors
Tight-buffered coating provides environmental and mechanical protection
Individual Fiber Jackets OD 2.0mm
Usage
LAN backbone
FTTX
Security
High EMI/RFI environments
Technical Data
Cable Type | Fiber Count | O.D. (mm) | Weight (kg/km) | Max. Tension | Crush Resistance |
Long/Short Term | Long/Short Term | ||||
N | N/100mm | ||||
GJFHJV (Y) | 4 | 7.5±0.5 | 51 | 660/200 | 1000/300 |
GJFHJV (Y) | 6 | 9.0±0.5 | 68 | 700/200 | 1000/300 |
GJFHJV (Y) | 8 | 10.5±0.5 | 88 | 800/250 | 1000/300 |
GJFHJV (Y) | 12 | 12.5±0.5 | 128 | 1200/400 | 1000/300 |
GJFHJV (Y) | 16 | 13±0.5 | 168 | 1200/400 | 1000/300 |
GJFHJV (Y) | 24 | 15.5±0.5 | 198 | 1200/400 | 1000/300 |
GJFHJV (Y) | 48 | 20.5±0.5 | 246 | 1800/600 | 1000/300 |
Options
Types of fiber: G.652 A/B/C/D or G.655 A/B/C Single-mode fiber, A1a or A1b multimode fiber, or other types of fiber
Material of jacket: Flame-retardant polyvinyl chloride (PVC), low smoke zero halogen flame retardant polyolefin (LSZH), thermoplastics polyurethane (TPU), or other contracted material
Color of Jacket: (including the color of fiber in cable core) meets the requirements of relevant standards, or other contracted color
Cable dimension: The nominal diameter, or other contracted
Delivery Length: 1km or 2km, or other contracted length
Other requirements: Other contracted individual requirements

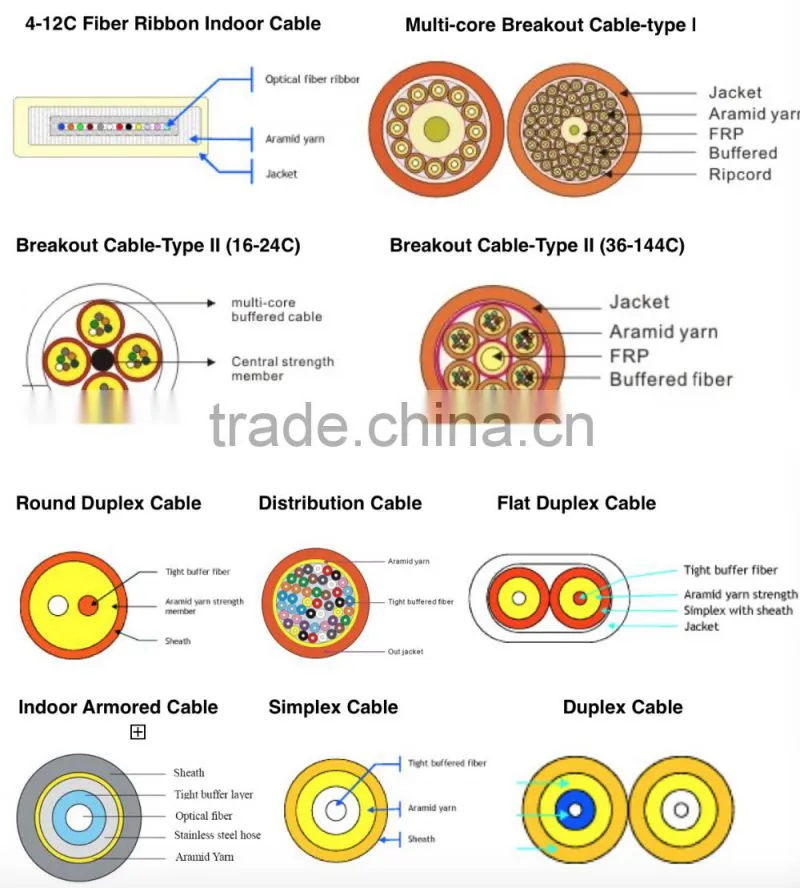

ANC produces and sells below fiber optic cable.
1. 900um buffer fiber optic cable
2. Simplex/Duplex Zipcord/Duplex Round /Flat Duplex fiber optic cable
3. multi-fiber mini breakout fiber optic cable/distribution fiber cable/Breakout fiber optic cable
4. Indoor FTTH Cable/Outdoor FTTH Cable
5. Air blow fiber optic cable
6. Waterproof fiber optic cable/ indoor & outdoor fiber optic cable
7. Outdoor Cable GYXTW/JET/GYXY/GYTA/GYTS/GYFTY/GYTA53/GYTC8S/GYXTC8Y/ADSS
100% Factory Tested by EXFO OTDR
