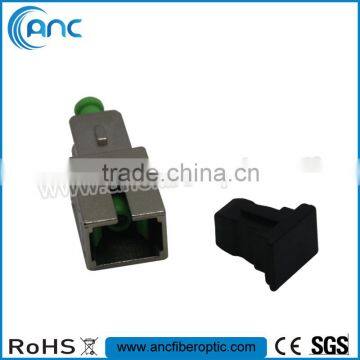

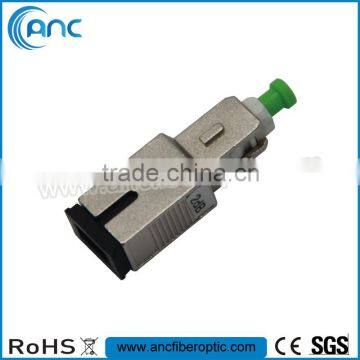

Factory Sale Male-Female SC/APC Fiber Optic Attenuator
SC Male-Female (Plug-Type) Fiber Optic Attenuator manufactured by ANC International Co., Limited is available from 1 to 20dB attenuation with 1dB step and 25dB and 30dB with low tolerance. SC Male/Female Attenuators can accommodate up to 200mw high power and offer 50dB or more typical return loss. SC Male-Female Attenuators are available for single-mode and APC, with a wavelength range of 1310nm to 1550nm.
Specification
Available from 1 to 20dB attenuation with 1dB step and 25dB and 30dB, each with low tolerance
Accommodates up to 200mw high power
50dB or more typical return loss
IEC, TIA/EIA standards compliance
Flammability rating: UL 94V-0
Features
Easy installation
High power endurance
RoHS compliant for all SC Male-Female Attenuator material
Usage
Fiber optic systems
Receiver padding for optical receiver protection
Optical power equalization
Linearity and dynamic range testing in laboratory equipment
Optical margin testing
BER testing
Technical Data
Parameter |
Unit |
Value |
Wavelength |
nm |
1310, 1550 |
Reflection Loss |
dB |
>=60dB for SM APC; |
Attenuation |
dB |
1±0.5; 2±0.5; 3±0.75; 5±0.75; 8±0.8; 10±1;above 10dB, tolerance is ±10% |
Connector |
FC, SC, ST, LC, MU, E2000 |
|
Operating Temperature |
-40℃~+85℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
1pc per small bag with test label; 50pcs per middle bag
Delivery is within 3 working days since order confirmation.
Small orders to ship by Express;
Bigger orders to ship by Air or Sea
1. 100% factory test before shipping
2. Laser label or Customized lable can be provided;
3. Good at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;
ANC produces and sells high quality SC SCA LC LCA FC FCA ST MU E2000 Fiber Optic Attenuator at various attenuation value. We are direct manufaturer, our attenuation fiber is imported from Canada and Korea. Besides this fixed fiber optic attenuator, we produce adapter-type female-female fiber optic attenuators and VOA too.

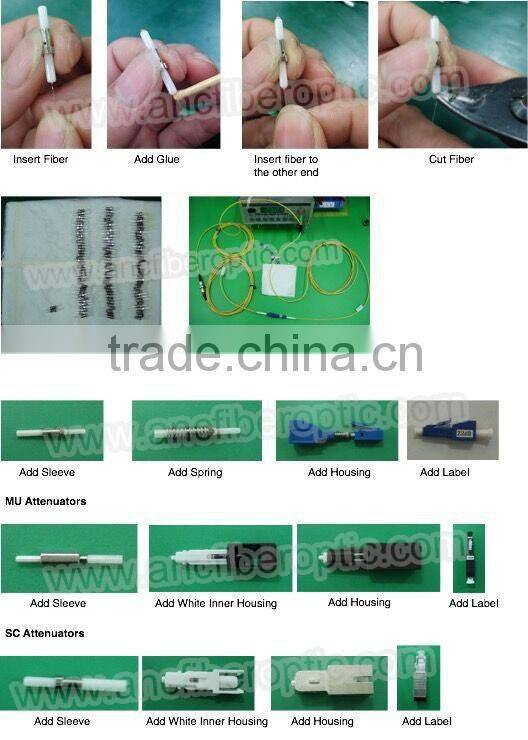

ANC Attenuator Production Procedure

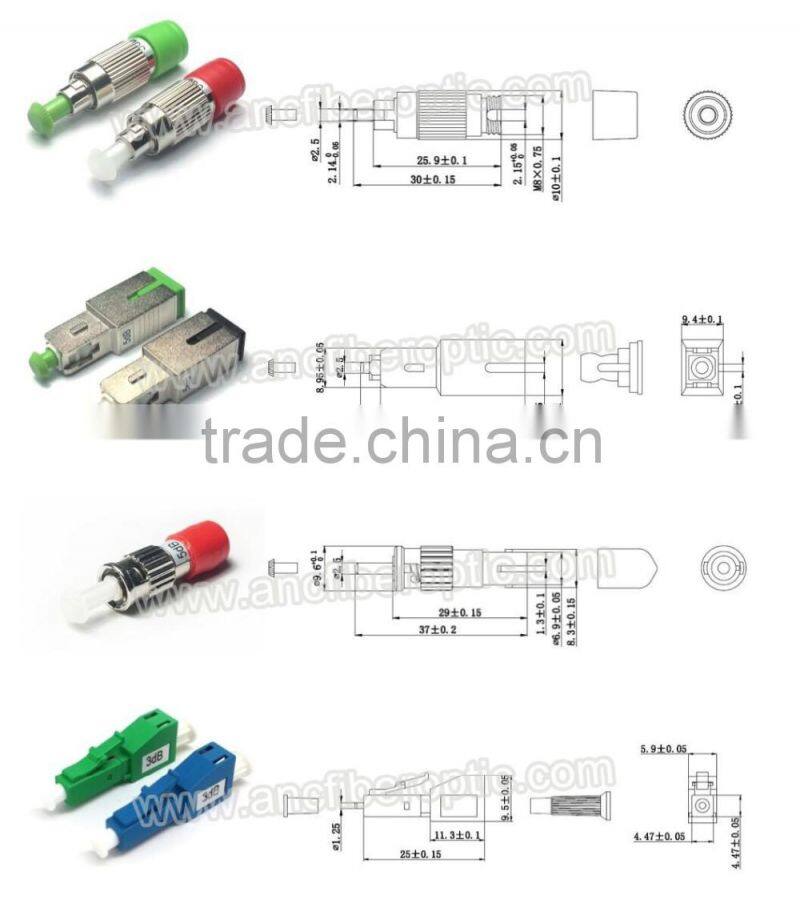

ANC Attenuator Drawing
ANC Production Lines View
ANC Main Test Equipment
