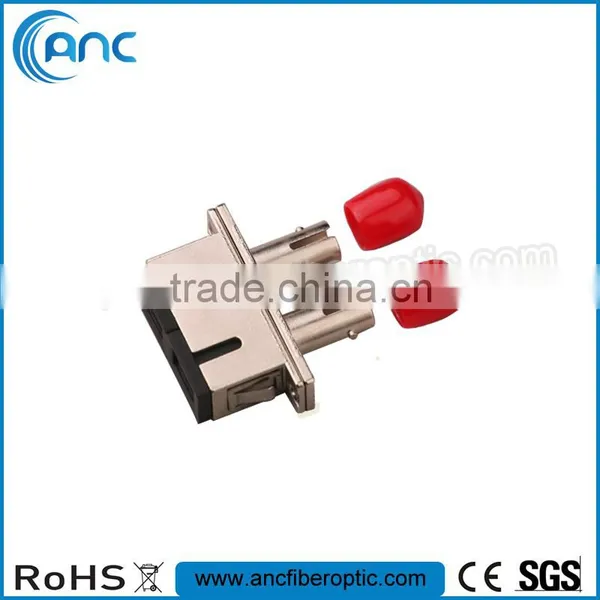

Duplex ST-SC Fiber Optic Adapter
Duplex ST-SC Fiber Optic Adapter manufactured by ANC International Co., Limited is fully compliant with telecom industry standard and works with applications such as CATV, LAN, FTTH. Duplex ST-SC Fiber Optic Adapters are permitting an interconnection between ST fiber optic connector and SC fiber optic connector. The ST-SC Hybrid Adapter’s high-precision sleeve enables reliable ferrule mating of the ST and SC ferrule diameters, ensuring low insertion and return loss.
Specification
Excellent Repeatability
Excellent Interchangeability
Low Insertion Loss & High Back Reflection Loss
100% tested before delivery
Zirconia ceramic or phosphor bronze split sleeves available.
Features
Precision alignment mechanism
RoHS compliant for all SC-ST Adapter material
Usage
Telecom, Access Network
Optical Fiber CATV
Terminal of the Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications
Technical Data
Parameter |
Unit |
SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
|||
Single-mode |
Multi-mode |
||||
PC |
UPC |
APC |
PC |
||
Insertion Loss |
dB |
≤0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
Return Loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
Exchangeability |
dB |
≤ 0.2 |
|||
Repeatability |
dB |
≤ 0.2 |
|||
Durability |
Time |
> 1000 |
|||
20pcs per plastic box; Or customized
Delivery is within 3 working days since order confirmation.
Small orders to ship by Express;
Bigger orders to ship by Air or Sea
1. 100% factory test before shipping
2. Laser label or Customized lable can be provided;
3. Good at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;
ANC Can produce all below adapters:
1. standard female-female SC, LC, FC, ST, SMA, DIN, MPO, MTRJ, E2000, MU in different color and different shape
2. hybrid female-female adapter, such as SC-FC, SC-ST, LC-ST, E2000-LC, MU-SC, etc many options;
3. hybrid female-male adapter, such as SC/APC Male-FC Female adapter; LC Male-ST Female adapter, etc, many options
4. loss than 0.1dB adapters for special usage;
5. shutter fiber optic adapter
