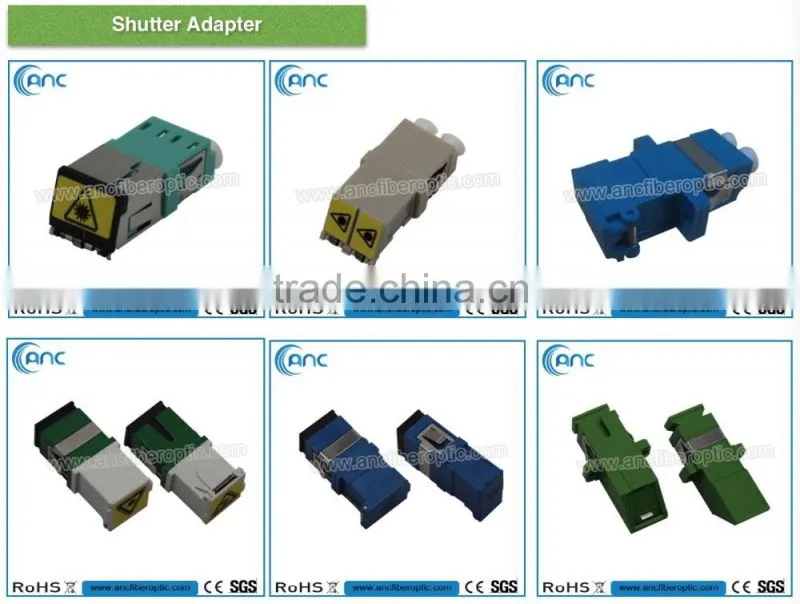

Auto Shutter SC Fiber Optic Adapter at Factory Price

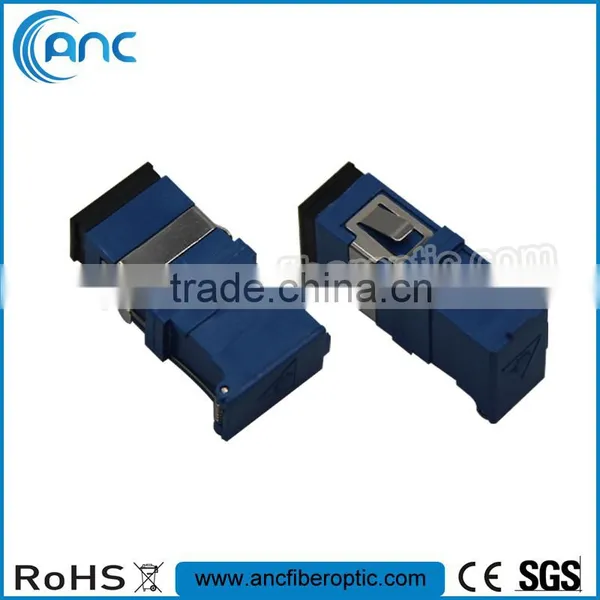

Auto Shutter SC Fiber Optic Adapter at Factory Price manufactured by ANC International Co., Limited is is specially designed to suit FTTH applications. The shutters fiber optic adapters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. SC Simplex Shutter Fiber Optic Adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter. Such SC Fiber Optic Adapter with shutter is Blue, Green, Beige and Aqua color coded for easy identification of SM/PC, SM/APC, MM/PC and OM3.
Specification
PC and APC SC shutter adapter available
SC Internal & External shuttered adapter optional
Metal and plastic dust cap w/o flange available
Zirconia ceramic or phosphor bronze split sleeves available
Low insertion loss & High return loss
Environment stability
Features
Easy to install
RoHS compliant for all SC shutter adapter material
Usage
Telecommunication
Hubs
Servers
Routers
Other Markets
Optical DVI
Storage Servers
Local Area Networks
Premise Distribution
Technical Data
Properties |
Test condition |
Test result |
Vibration |
10-55Hz, 1.5mm, 60min |
≤0.2dB |
Mating Durability |
1000 Mating, clean every 25 mating |
≤0.2dB |
Impact |
1.5m, 8 drops |
≤0.2dB |
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
≤0.2dB |
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
≤0.2dB |
Temperature humidity cycling |
40ºC, 95%, 96Hr |
≤0.2dB |
Operating Temperature |
-40ºC to +85ºC |
≤0.2dB |
Storage Temperature |
-40ºC to +85ºC |
≤0.2dB |
25pcs per box; Or customized
Delivery is within 3 working days since order confirmation.
Small orders to ship by Express;
Bigger orders to ship by Air or Sea
1. 100% factory test before shipping
2. Laser label or Customized lable can be provided;
3. Good at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;

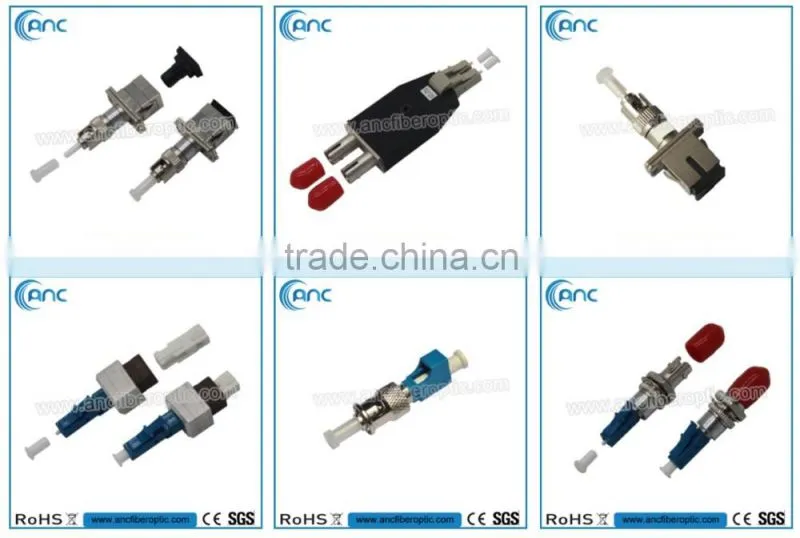

ANC Can produce all below adapters:
1. standard female-female SC, LC, FC, ST, SMA, DIN, MPO, MTRJ, E2000, MU in different color and different shape

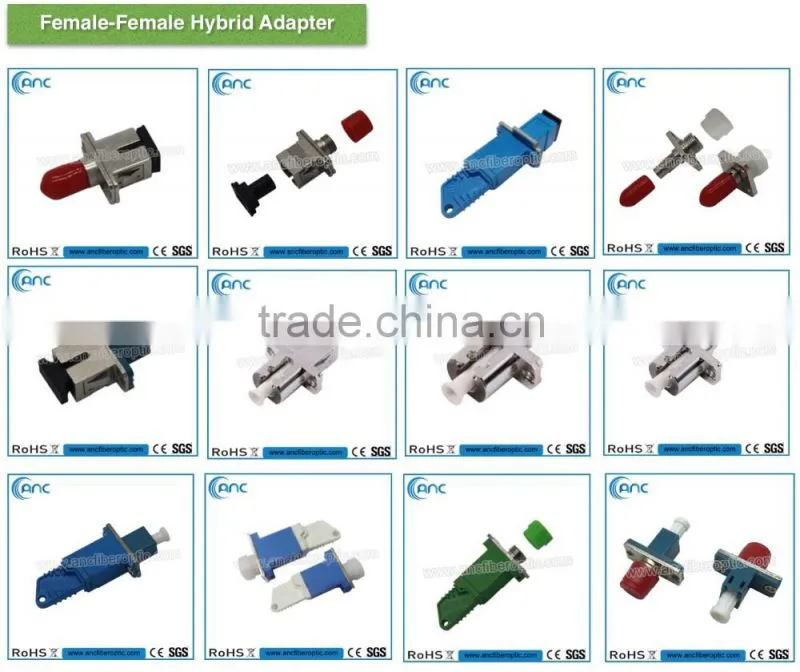

2. hybrid female-female adapter, such as SC-FC, SC-ST, LC-ST, E2000-LC, MU-SC, etc many options;

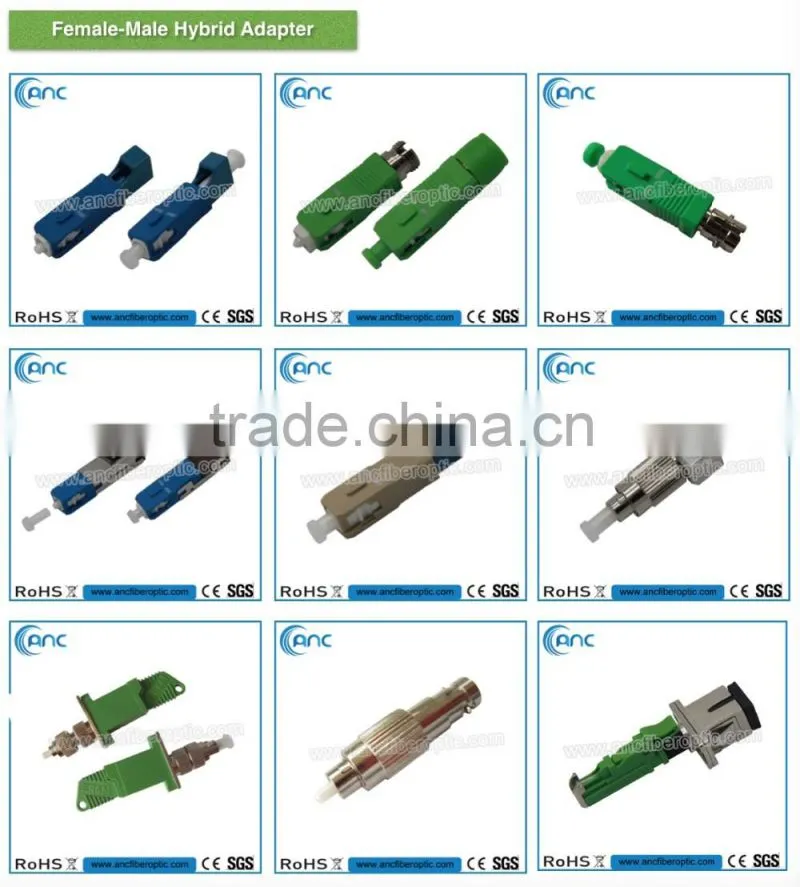

3. hybrid female-male adapter, such as SC/APC Male-FC Female adapter; LC Male-ST Female adapter, etc, many options
4. loss than 0.1dB adapters for special usage;
5. shutter fiber optic adapter

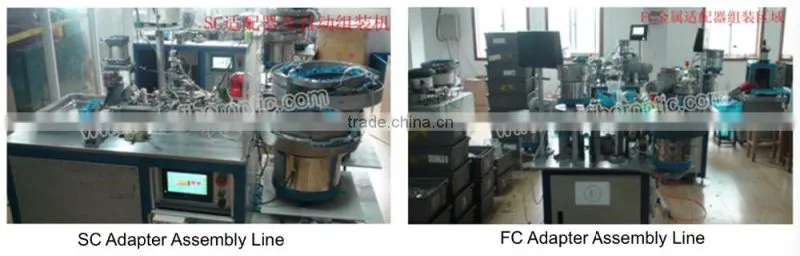

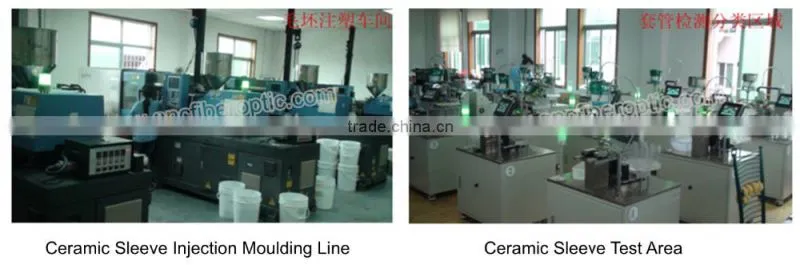

ANC Production Lines View
