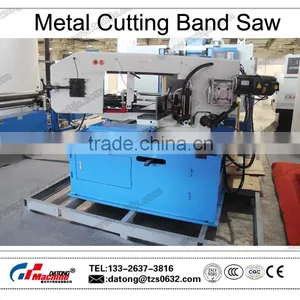

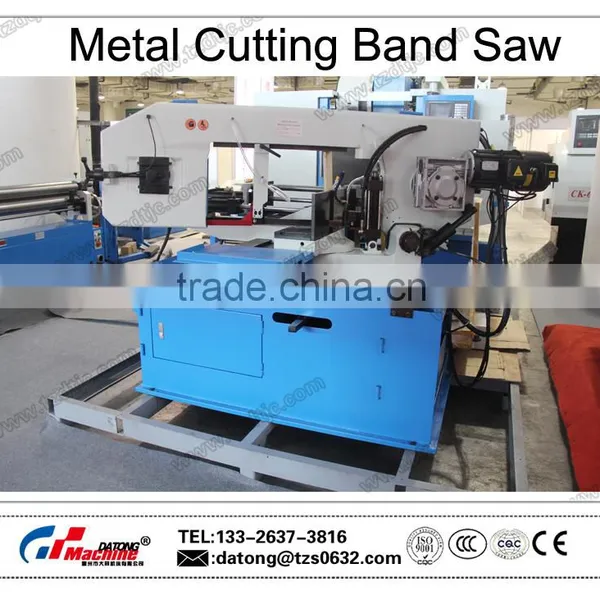

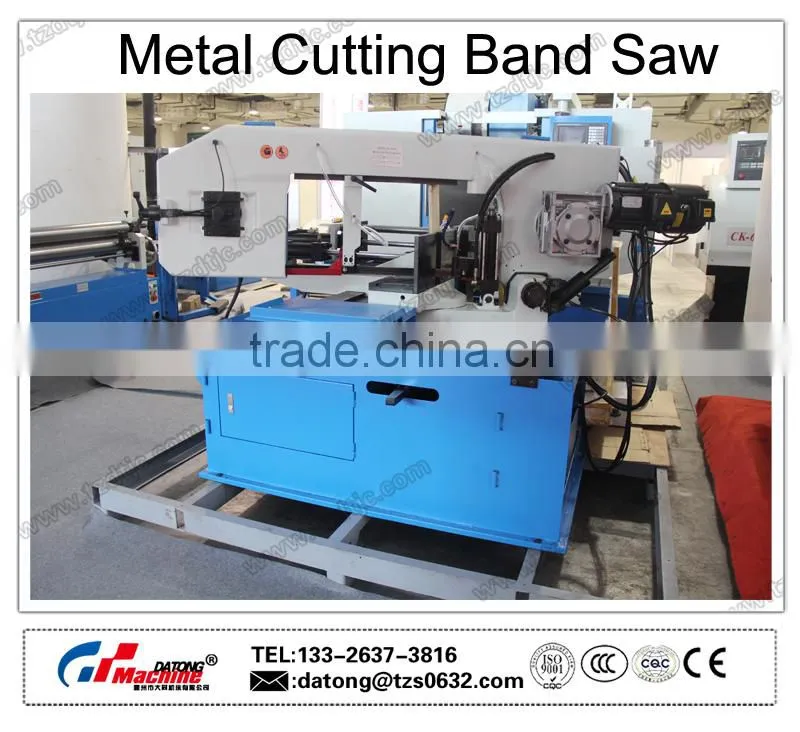

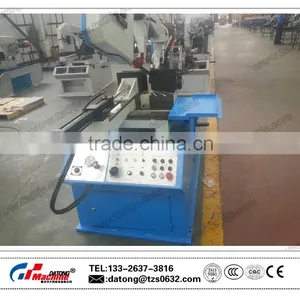

Band Saw For Metal Cutting BS-460G
Features:
1. High-capacity band control by two-speed motor
2. Vertical rotation on bolt with adjustable tapered bearings without backlash
3. Band stretching is obtained by electro-mechanical blade tensioner with microswitch
4. It is the precise sawing machine features European design and large size.
5. It is European design band saw has the advantage of double speed selection.
6. It is characterized by manual/automatic operation mode.
7. The saw bow can rotate around.
8. The European design band saw has power break device (the machine will automatically power off when the rear protective cover is opened).
9. The falling speed of saw bow is controlled by hydraulic cylinder.
10. It is equipped with a block feeder (with fixed saw length).
11. The European design band saw has sizing device (the machine will automatically stop after sawing the materials).
12. The hydraulic system of the European design band saw automatically controls the up and down of saw bow and the tightness and looseness of the jaw.
13. The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece.
14. The European design band saw has an optional PLC system.
Specification:
Model |
BS-460G |
|
Capacity |
Circular @90° |
330mm(13”) |
Rectangular @90° |
460x250mm(18”x9.8”) |
|
Circular @60°(Right) |
205mm(8”) |
|
Rectangular @60°(Right) |
205x250mm(8”x9.8”) |
|
Circular @45°(Left & Right) |
305mm(12”) |
|
Rectangular @45°(Left & Right) |
305x250mm(12’x9.8”) |
|
Blade speed |
@50Hz |
40/80MPM |
@60Hz |
48/96MPM |
|
Blade size |
27X0.9X3960mm |
|
Motor |
1.5/2.2kw |
|
Drive |
Gear |
|
Packing size |
231x107x163cm |
|
N.W/G.W. |
750/830kg |
|
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
