Hot New Design SC Fiber Optic Adapter

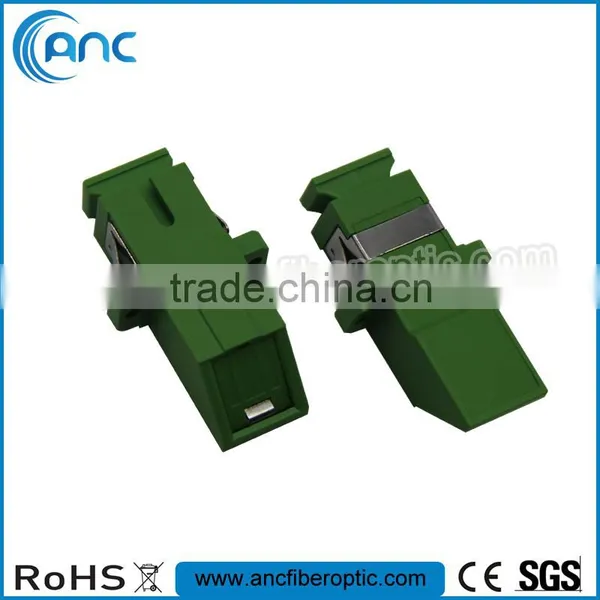

Hot New Design SC Fiber Optic Adapter manufactured by ANC International Co., Limited is specially designed to suit FTTH applications. The shutters fiber optic adapters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Hot New Design SC Fiber Optic Adapter with inner shutter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter. Such Hot New Design SC Fiber Optic Adapter with inner shutter is Blue, Green, Beige color coded for easy identification of SM/PC, SM/APC and MM/PC.
Specification
PC and APC SC shutter adapter available
SC Internal & External shuttered adapter optional
Metal and plastic dust cap w/o flange available
Zirconia ceramic or phosphor bronze split sleeves available
Low insertion loss & High return loss
Environment stability
Features
Easy to install
RoHS compliant for all SC shutter adapter material
Usage
Telecommunication
Hubs
Servers
Routers
Other Markets
Optical DVI
Storage Servers
Local Area Networks
Premise Distribution
Technical Data
Properties |
Test condition |
Test result |
Vibration |
10-55Hz, 1.5mm, 60min |
≤0.2dB |
Mating Durability |
1000 Mating, clean every 25 mating |
≤0.2dB |
Impact |
1.5m, 8 drops |
≤0.2dB |
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
≤0.2dB |
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
≤0.2dB |
Temperature humidity cycling |
40ºC, 95%, 96Hr |
≤0.2dB |
Operating Temperature |
-40ºC to +85ºC |
≤0.2dB |
Storage Temperature |
-40ºC to +85ºC |
≤0.2dB |
25pcs per plastic box; Or customized
Delivery is within 3 working days since order confirmation.
Small orders to ship by Express;
Bigger orders to ship by Air or Sea
1. 100% factory test before shipping
2. Laser label or Customized lable can be provided;
3. Good at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;
ANC produces and sells high quality Flangeless SC Simplex Fiber Optic Adapter with Safety Shutter and other SC, LC, FC, ST, MPO, MTRJ, SMA, MU, E2000, DIN,etc fiber optic adapters.
ANC Production Lines View
ANC Main Test Equipment
