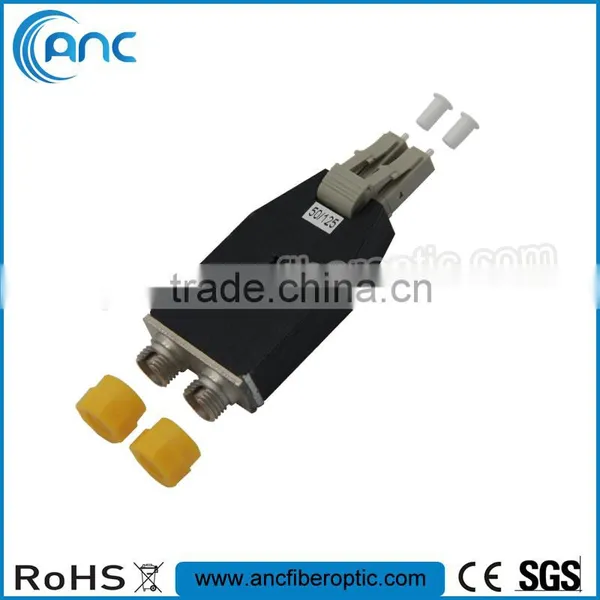

Manufacturer MM 50/125 LC Duplex Male FC Duplex Female Fiber Optic Adapter
MM 50/125 LC Duplex Male to FC Duplex Female Fiber Optic Adapter manufactured by ANC International Co., Limited is specially designed to incorporate the Small Form Factor LC into FC configured environment. The special design of LC Male-FC Female fiber Adapter enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.
Specification
Excellent Repeatability
Excellent Interchangeability
Low Insertion Loss
Good Temperature Characteristic
Simplex or duplex LC Male- FC Female or FC Male to LC Female fiber optic adapter optional
Usage
Telecom, Access Network
Optical Fiber CATV
Terminal of the Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications
Technical Data
Parameter |
Unit |
SC-LC, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
|||
Single-mode |
Multi-mode |
||||
PC |
UPC |
APC |
PC |
||
Insertion Loss |
dB |
≤0.3 |
≤ 0.3 |
≤ 0.3 |
≤ 0.2 |
Return Loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
Exchangeability |
dB |
≤ 0.2 |
|||
Repeatability |
dB |
≤ 0.2 |
|||
Durability |
Time |
> 1000 |
|||
1PC per small bag; Delivery is within 3 working days since order confirmation.
Small orders to ship by Express;
Bigger orders to ship by Air or Sea
1. 100% factory test before shipping
2. Laser label or Customized lable can be provided;
3. Good at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;
ANC produces and sells high quality MM 50/125 LC Duplex Male FC Duplex Female Fiber Optic Adapter and many other male-female and female-female hybrid adapters.
