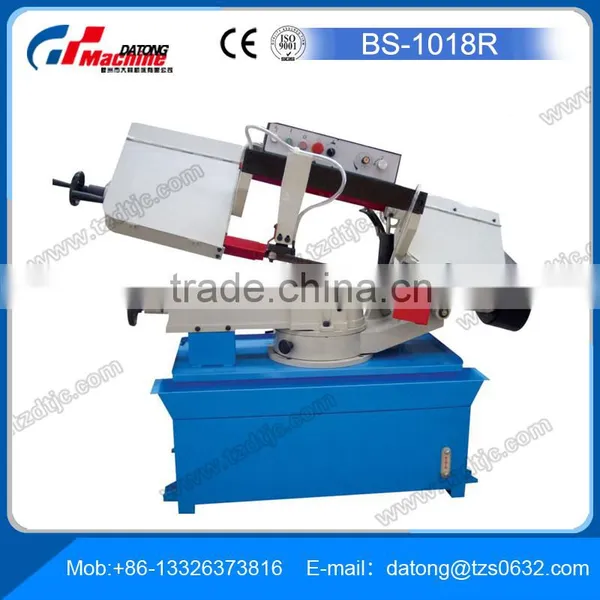

Band Saw For Metal Cutting BS-1018R Portable Band Sawing MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Band Saw For Metal Cutting BS-1018RH Portable Band Sawing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Band Saw For Metal Cutting BS-1018B Portable Band Sawing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Band Saw For Metal Cutting BS-916VR Band Sawing Machine Quality ChoiceUS$ 1,000 - 10,000MOQ: 1 Set
-
Band Saw For Metal Cutting BS-912GR Band Sawing MachineUS$ 1,000 - 10,000MOQ: 1 Set

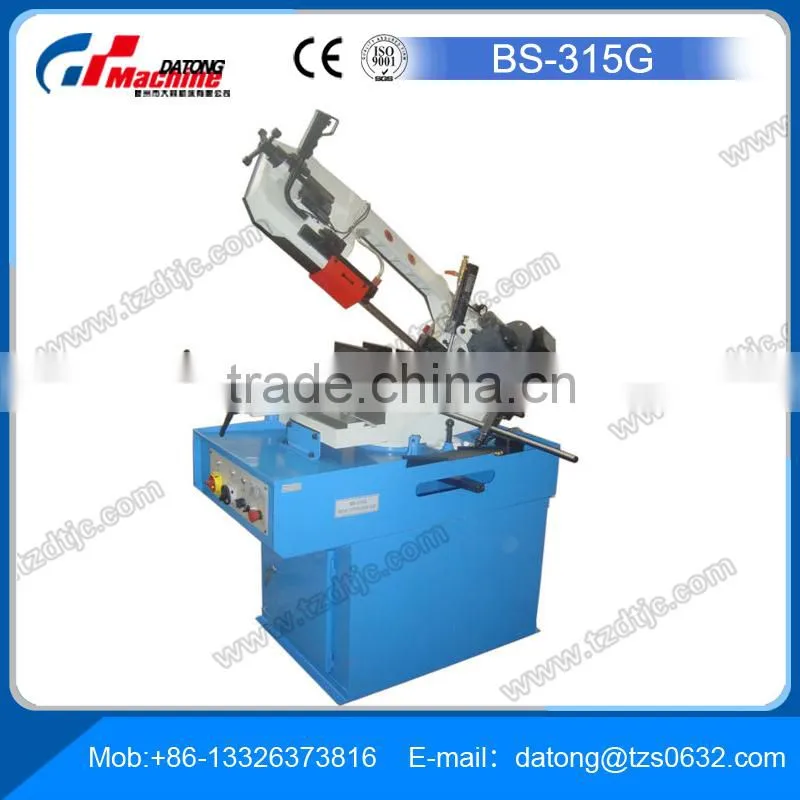

Band Saw For Metal Cutting BS315GH
Features:
1. Electric coolant system
2. Accident preventing devices on the fly wheel casing and on the blade
3. Vertical rotation on bolt with adjustable tapered bearings without backlash
4. Band stretching is obtained by electro-mechanical blade tensioner with microswitch
5. It is the precise sawing machine features European design and large size.
6. It is European design band saw has the advantage of double speed selection.
7. It is characterized by manual operation mode.
8. The saw bow can rotate around.
9. The European design band saw has power break device (the machine will automatically power off when the rear protective cover is opened).
10. The falling speed of saw bow is controlled by hydraulic cylinder.
11. It is equipped with a block feeder (with fixed saw length).
12. The European design band saw has sizing device (the machine will automatically stop after sawing the materials).
13. The hydraulic system of the European design band saw automatically controls the up and down of saw bow and the tightness and looseness of the jaw.
14. The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece.
15. The European design band saw has an optional PLC system.
16. Hydraulic cylinder for controlled descent
17. High-capacity band control by two-speed motor
18. Swivel on both sides
Specification:
Model |
BS-315GH |
|
Capacity |
Circular @90° |
230mm(9”) |
Rectangular @90° |
315x170mm |
|
Circular @60°(Right) |
130mm |
|
Rectangular @60°(Right) |
130x105mm |
|
Circular @45°(Left & Right) |
210mm |
|
Rectangular @45°(Left & Right) |
210x170mm |
|
Blade speed |
@50Hz |
40/80MPM |
@60Hz |
48/96MPM |
|
Blade size |
27X0.9X2825mm |
|
Motor |
0.75/1.1kW |
|
Drive |
Gear |
|
Packing size |
163x90x155cm |
|
N.W/G.W. |
380/420kg |
|
