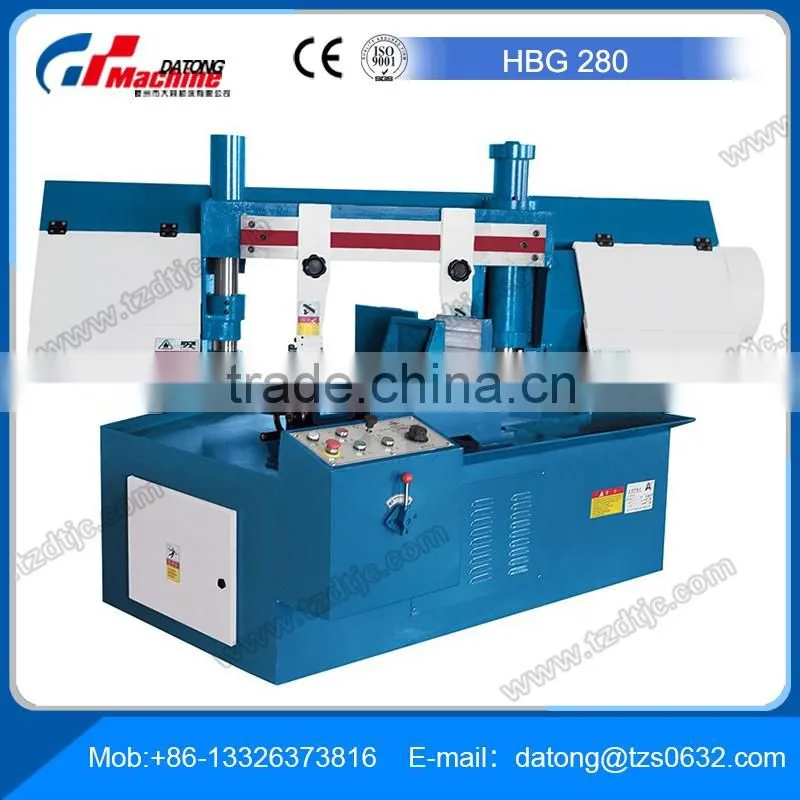

Semi-Automatic Horizontal Miter Band Saw HBG 280 for sale
Feature:
1.Extremely rigid dual-column cast-iron construction with heavy swivel console
2.Two cutting speeds - directly shifted via main drive motor
3.Infinitely variable saw frame feed
4.Horizontal saw frame swivels up to 30°
5.At the end of each sawing cycle, the saw blade frame will automatically return to the home position
6.Extra rigid, adjustable saw blade guide
7.Including hydraulic workpiece clamping with clamping pressure control
Specification:
|
Cutting capacities
Cutting capacity 90° (flat)
Cutting capacity 90° (round)
Cutting capacity 90° (square)
Cutting capacity 45° (flat)
Cutting capacity 45° (round)
Cutting capacity 45° (square)
Cutting capacity 30° (flat)
Cutting capacity 30° (round)
Cutting capacity 30° (square)
Cutting speed
|
320x280 mm
280 mm
280 mm
200x280 mm
200 mm
200 mm
240x280 mm
240 mm
240 mm
36, 56 m/min
|
|---|---|
|
Drive capacity
Motor rating main drive
Main drive, continuous load
Motor rating hydraulic pump
Motor rating coolant pump
|
2,2 kW
1,5 kW
0,55 kW
0,04 kW
|
|
Measures and weights
Belt dimensions
Overall dimensions (length x width x height)
Weight
|
3.850x27x0,9 mm
1.900x1.400x1.500 mm
700 kg
|
Standard Equipment:
1 saw blade, hydraulic part clamping, automatic band break control, saw blade cleaner brush, material support, coolant system, work lamp, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
