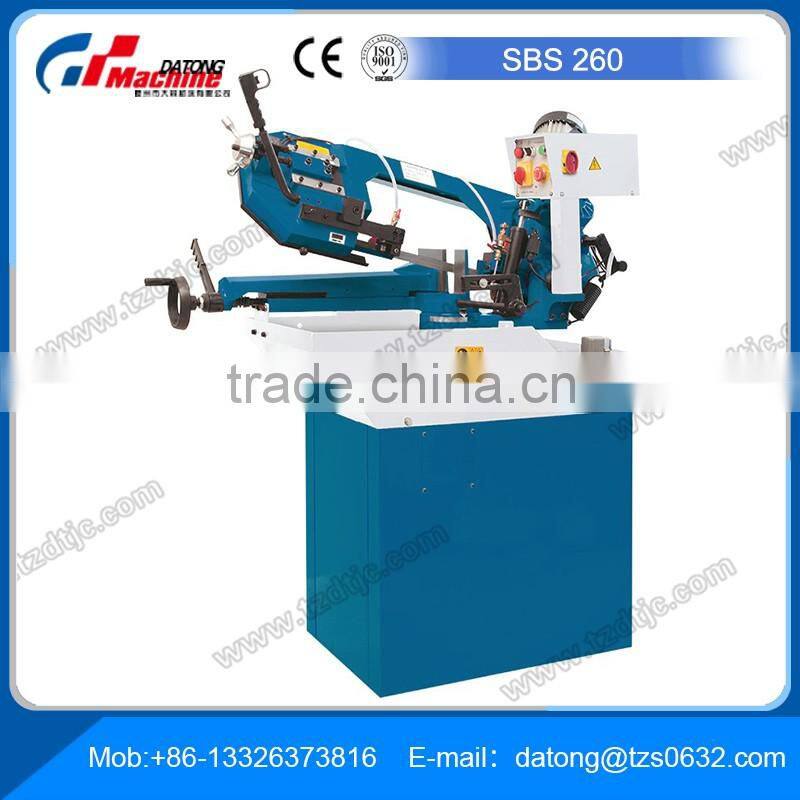

Horizontal Miter Band Saw SBS 260 for sale
Feature:
1.Cast-iron saw frame, one-piece construction
2.Space-saving work process for miter cuts - the operator moves the saw frame, not the material
3.Hydraulic cylinder for infinitely variable saw frame feed
4.Two cutting speeds for optimum machining results and low saw blade wear
5.Pressure gauge indicates saw blade tension
6.Vise with quick-action clamping and linear stop
7.Rigid saw blade guides, adjustable, with dual ball-bearings
8.Coolant system and solid base are included
Specification:
Cutting capacities Cutting capacity 90° (round) Cutting capacity 90° (square) Cutting capacity 90° (flat) Cutting capacity 45° (round) Cutting capacity 45° (square) Cutting capacity 60° (round) Cutting capacity 60° (square) Cutting speed | 220 mm 160 mm 260x110 mm 90 mm 80 mm 90 mm 80 mm 16 / 72 m/min |
|---|---|
Drive capacity Motor rating main drive Main drive, continuous load | 1,1 kW 0,59 kW |
Measures and weights Overall dimensions (length x width x height) Weight | 1.450x570x1.040 mm 220 kg |
Standard Equipment:
quick-action vice, coolant system, pressure gauge for saw blade tensionig, 1 saw blade, control panel, base, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
