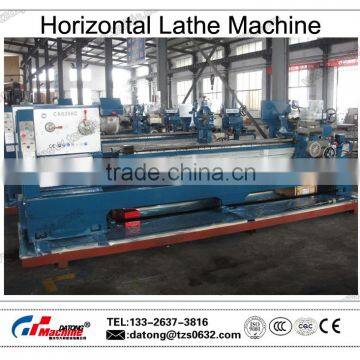

Export CA Series Horizontal Lathe Machine CA6280B*1500
- 200 Set / Sets per Month
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Export CA Series Horizontal Lathe Machine CA6280B*1000
-
Export CA Series Horizontal Lathe Machine CA6280B*750
-
Export CA Series Horizontal Lathe Machine CA6180B*2000
-
Export CA Series Horizontal Lathe Machine CA6180B*1500
-
Export CA Series Horizontal Lathe Machine CA6180B*1000
-
Export CA Series Horizontal Lathe Machine CA6180B*750
Product Details
Condition | New | Type | Horizontal | |
CNC or Not | Normal | Automatic Grade | Automatic | |
Max. Swing Diameter | 800mm | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | CA6280Bx1500 | |
Voltage | 380V | Power(W) | 7.5kw | |
Dimension(L*W*H) | 3200x1140x1750mm | Weight | 2980/2800kg | |
Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Horizontal Lathe Machine CA6180B*1500
Feature:
1.Hardened and ground slidwways,
2.Good rigidity,reliable accuracy.
3.Max.swing over bed:800mm
4.System:GSK 25i
Specification:
Model | CA6180 CA6180B CA6180C | CA6280 CA6280B CA6280C | |
Max. Swing over bed | 800mm | ||
Max. Swing over carriage | 540mm | ||
Max. swing in gap | -- | 1020mm | |
Effective gap length | -- | 210mm | |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/ 2200mm/3000mm/4000mm | ||
Width of bed | 400mm | ||
Section of turning tool | 25x25mm | ||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |
Hole through spindle | 52mm.(80mm). [105mm] | ||
Spindle taper | NO.6(MT6)( Φ 90 1:20)[ Φ113 1:20] | ||
Feed | Number of feeds | 64 kinds(for each) | |
Range of metric threads(kinds) | (1-96mm)44kinds | ||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||
Range of module threads(kinds) | (0.25-48)Moduie39kinds | ||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||
Tailstock | Max. tail stock spindle travel | 150mm | |
Tail stock spindle diameter | 75mm | ||
Taper of tail stock spindle center hole | NO.5(MT5) | ||
Main motor | 7.5KW(10HP) | ||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750mm | |
Overall dimensions for1000mm | 2700x1140x1750mm | ||
Overall dimensions for1500mm | 3200x1140x1750mm | ||
Overall dimensions for2000mm | 3700x1140x1750mm | ||
Overall dimensions for2200mm | 4030x1140x1750mm | ||
Overall dimensions for3000mm | 4850x1140x1750mm | ||
Overall dimensions for4000mm | 5800x1140x1750mm | ||
Weight (kg) | Length | G.W/N.W. | |
Weight for 750mm | 2520/2400kg | ||
Weight for 1000mm | 2720/2560kg | ||
Weight for 1500mm | 2980/2800kg | ||
Weight for 2000mm | 3260/3087kg | ||
Weight for 2200mm | 3490/3287kg | ||
Weight for 3000mm | 4200/3887kg | ||
Weight for 4000mm | 4850/4500kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
