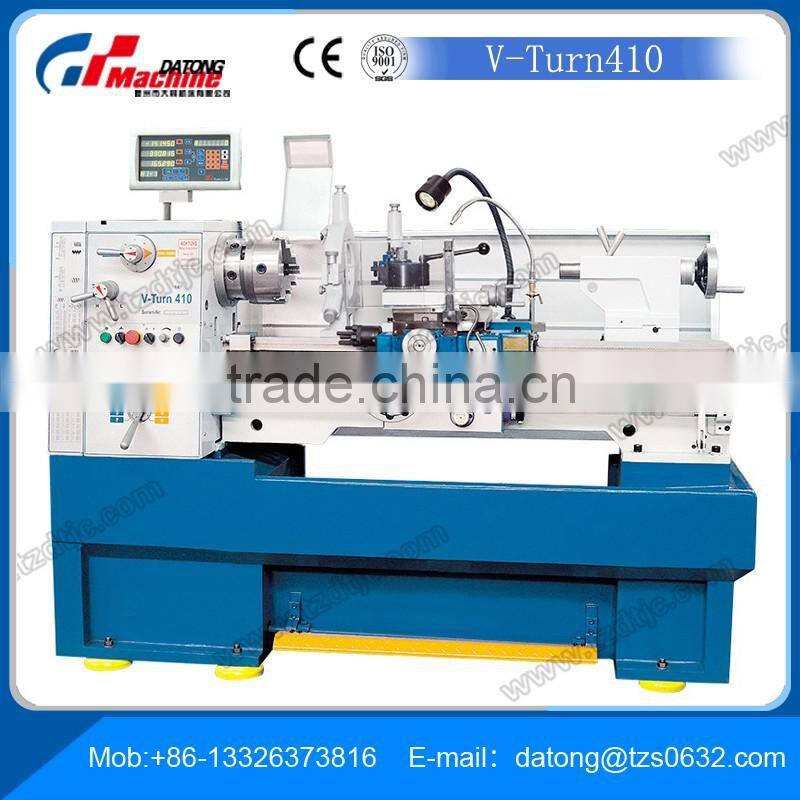

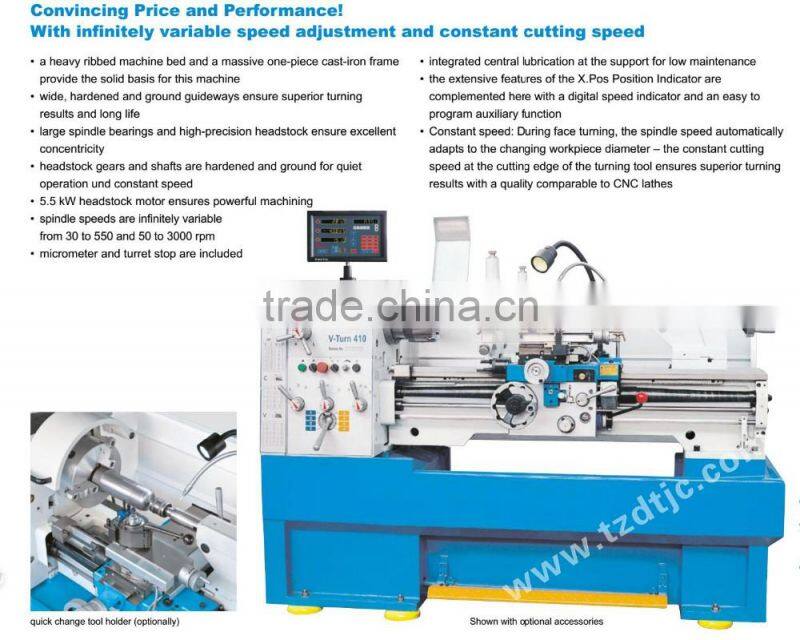

Help CenterV-Turn 410/1500 Precision Lathe
Related Products
-
V-Turn 410/1000 Precision LatheUS$ 6,000 - 7,000MOQ: 1 Set -
Mini Bench Metal Lathe Machine C6US$ 800 - 1,500MOQ: 1 Piece
-
Mini Bench Metal Lathe Machine C3US$ 200 - 1,000MOQ: 1 Piece
-
Mini Bench Metal Lathe Machine C2US$ 200 - 1,000MOQ: 1 Piece
-
Mini Bench Metal Lathe Machine C0US$ 150 - 450MOQ: 1 Piece
Convincing Price and Performance!
With infinitely variable speed ajustment and constant cutting speed

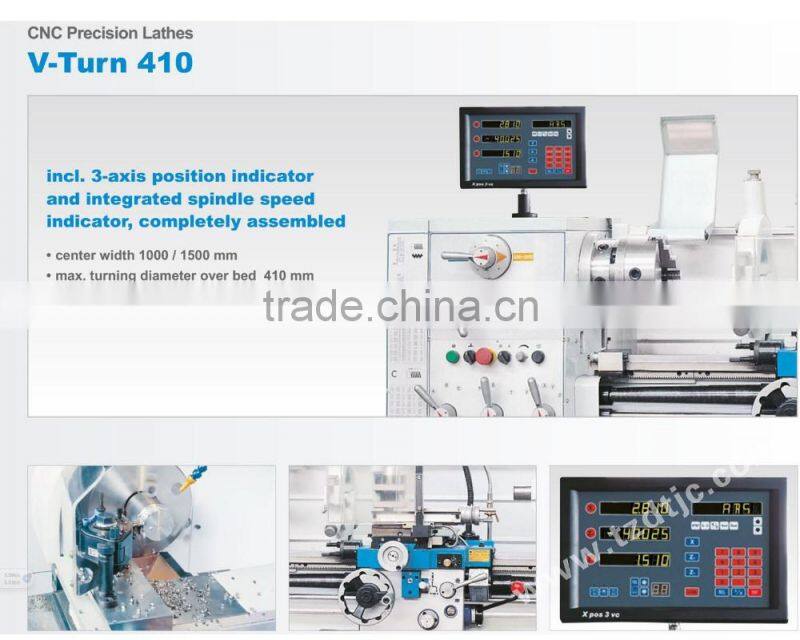

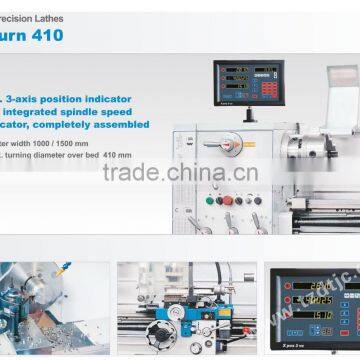

- incl. 3-axis position indicator with integrated spindle speed display, fully assembled
- a heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
- wide, hardened and ground guideways ensure superior turning results and long life
- large spindle bearings and high-precision headstock ensure excellent concentricity
- headstock gears and shafts are hardened and ground for quiet operation und constant speed
- 5.5 kW headstock motor ensures powerful machining
- spindle speeds are infinitely variable from 30 to 550 and 50 to 3000 rpm
- micrometer and turret stop are included
- integrated central lubrication at the support for low maintenance
- the extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function

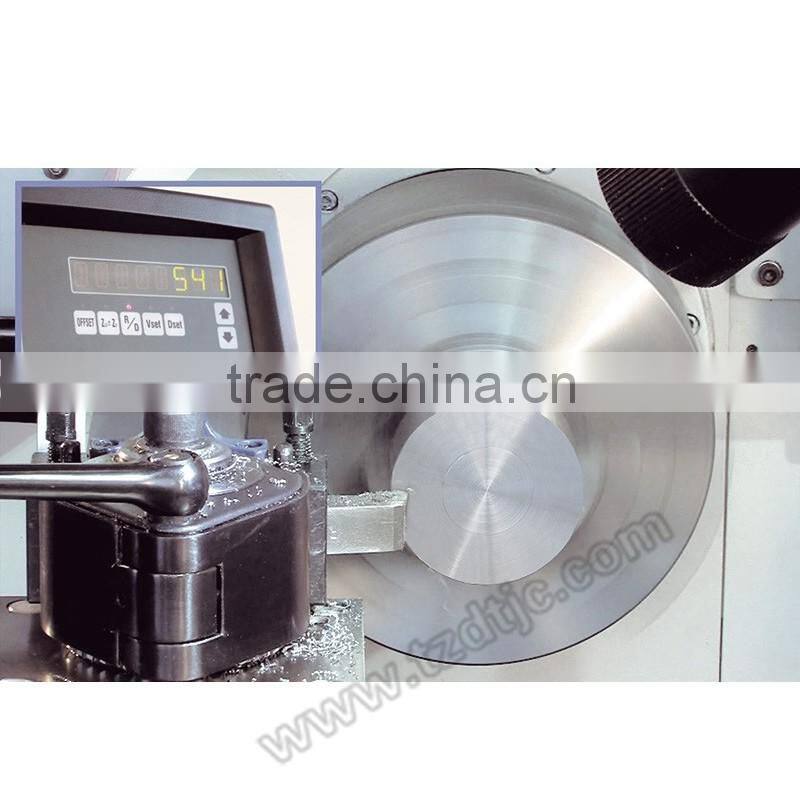

- constant speed: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with a quality comparable to CNC lathes

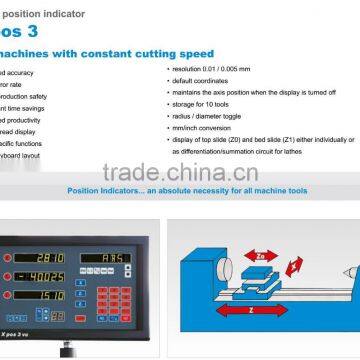

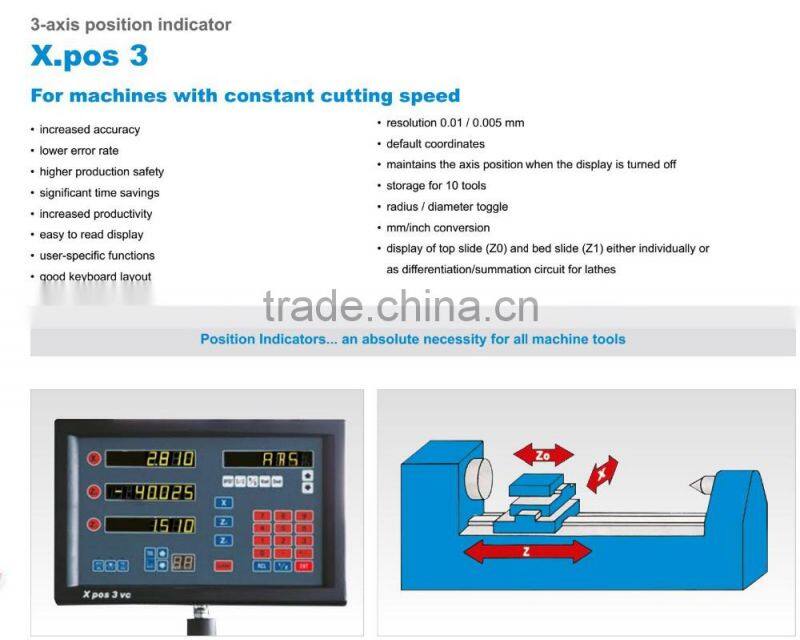

3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
|
Working area
Workpiece length (max.)
Center width
Turning diameter over bed
Turning diameter over gap bridge
Turning diameter over support
Gap bridge length
Bed width
Swing range of top slide
Travel Z1-axis
|
1.500 mm
205 mm
380 mm
580 mm
255 mm
190 mm
250 mm
45 °
140 mm
|
|---|---|
|
Travels
Travel X-axis
|
210 mm
|
|
Headstock
Speed range, high
Speed range, low
Spindle bore
Spindle mount
Spindle taper
|
550 - 3.000 rpm
30 - 550 rpm
52 mm
Camlock D1-6
MT 6
|
|
Feed
Feed X-axis
Feed Z-axis
|
0,025 - 0,85 mm/R
0,05 - 1,7 mm/R
|
|
Tailstock
Tailstock quill diameter
Tailstock taper
Tailstock quill stroke
Tailstock traverse adjustment
|
50 mm
MT 4
120 mm
± 13 mm / ± 0,5"
|
|
Tapping
Tapping, metric
Tapping, diametric
Tapping, module
Tapping, whitworth
|
(39) 0,2-14 mm
(21) 8-44 DP
(18) 0,3 - 3,5 mm
(45) 2-72 GPZ
|
|
Drive capacity
Motor rating main drive
Supply voltage
|
5,5 kW
400 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
2.042x810x1.350 mm
1.800 kg
|
Standard Equipment:
3-axis position indicator, 4-jaw face plate chuck Ø 250 mm, face plate Ø 350 mm, change gears, quick change tool holder head, quick change tool holder, coolant system, steady and fallow rest, turret stop, micrometer stop, chip tray, includes fixed splash guard (wall), protective shield for support, chuck guard, foot brake pedal, halogen lights, thread gauge, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
