Help CenterDL S 515/5000 Universal Heavy-Duty Lathe
Related Products
-
DL S 515/4000 Universal Heavy-Duty LatheUS$ 1,000 - 10,000MOQ: 1 Set -
DL S 515/3000 Universal Heavy-Duty LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
DL S 515/1500 Universal Heavy-Duty LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
DL S 425/5000 Universal Heavy-Duty LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
DL S 425/4000 Universal Heavy-Duty LatheUS$ 1,000 - 10,000MOQ: 1 Set

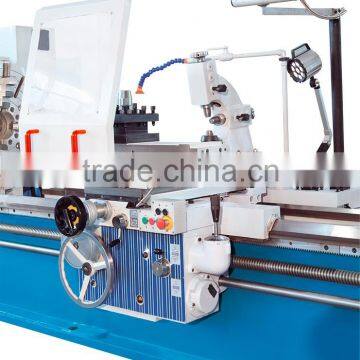

High workpiece weights, superior machining power, and simple handling
- Extra heavy, wide machine bed with heavy ribbing and one-piece mono-block construction
- Induction-hardened and ground guide slots ensure long-term accuracy and minimum wear
- Massive headstock with high-precision main spindle on a tapered roller bearing with 100 mm spindle bore for excellent stability under heavy loads
- very quiet operation at maximum spindle speed
- All guideways are generously sized and gears are hardened and ground
- Manual 4-step auxiliary gearbox, premium frequency drive technology combined with main spindle motor ratings up to 15 kW allow exact tuning of speed and torque for heavy-duty machining
- central, practical controls for feeds and thread leads
- The auxiliary gearbox features a wide spectrum of diametric, inch, module, and metric threads
- support and top slide are designed for high cutting forces
- Joystick control for X and Z feeds is mounted directly to support
- Rapid feed for X and Z axis allow quick support positioning and less down-time
- Adjustable overload clutch in apron protects the feed mechanics from damages and failures

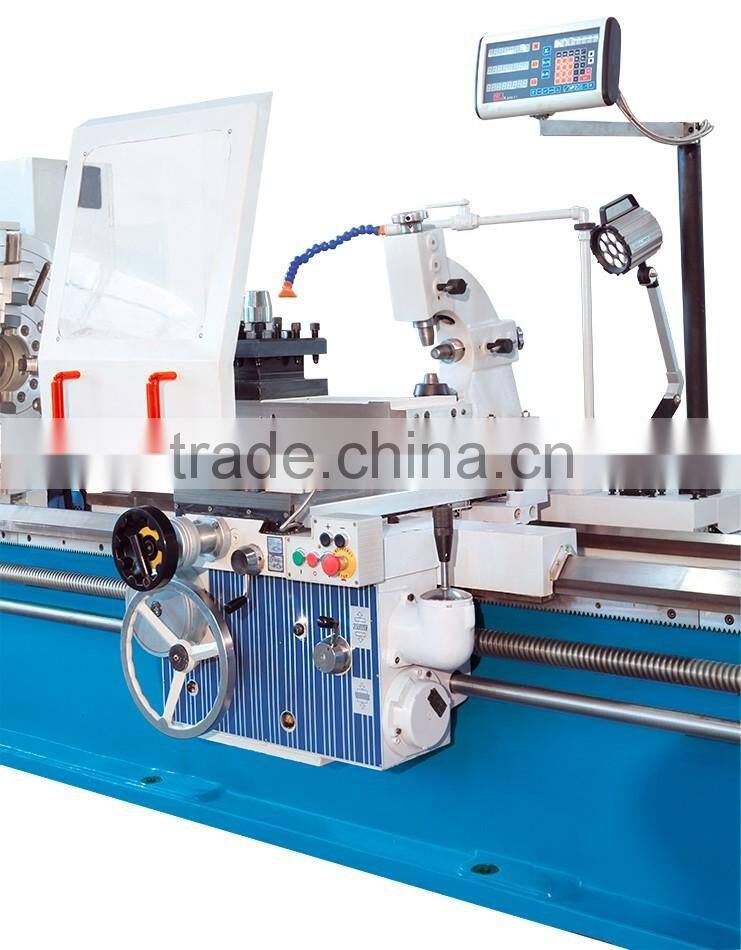

3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
- display for top (Z0) and box way slide (Z1) both separate and in differential /
|
Working area
Workpiece length (max.)
Turning diameter over bed
Turning diameter over support
Turning diameter over gap bridge
Travel Z1-axis
Workpiece weight (max.)
Gap bridge length
Bed width
Swing range of top slide
|
5.000 mm
1.000 mm
720 mm
1.350 mm
250 mm
4.000 kg
470 mm
600 mm
90 °
|
|---|---|
|
Travels
Travel X-axis
Travel Z-axis
|
600 mm
4.800 mm
|
|
Headstock
Spindle speed
Spindle bore
Spindle mount
|
5 - 630 rpm
100 mm
A2-11
|
|
Rapid feed
Rapid feed X-axis
Rapid feed Z-axis
|
1.800 mm/min
3.640 mm/min
|
|
Feed
Feed speed X-axis
Feed speed Z-axis
Feed speed Z1-axis
|
(64) 0,04 - 4,8 mm/min
(64) 0,08 - 9,6 mm/min
(64) 0,02 - 2,4 mm/min
|
|
Tool head
Tool shank dimensions
|
32x32 mm
|
|
Tailstock
Tailstock quill diameter
Tailstock taper
Tailstock quill stroke
|
120 mm
MT 6
250 mm
|
|
Tapping
Tapping, metric
Tapping - inch
Tapping, diametric
Tapping, module
|
(56) 1-120 mm / (56) 0.04” - 5”
(56) 30 - 1/4
(56) 60-0,5 DP
(56) 0,5 - 60 mm
|
|
Drive capacity
Motor rating main drive
Motor rating coolant pump
Motor rating feed
Total power consumption
Supply voltage
|
18,5 kW
1,1 kW
0,15 kW
23 kVA
400 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
7.150x1.500x1.600 mm
9.500 kg
|
Standard Equipments:
3-axis position indicator, 4-jaw-faceplate chuck Ø 800 mm, 4-station tool holder, dead centers, reducing sleeve, chuck guard, protective shield for support, coolant system, work lamp, operating tools, operator manual
