Specifications
1for bank,hospital,goverment,airport etc.2safety approval:ISO9001:2000
3export market:north/south America,Afraic and Asian...
1.Using highly reliable industrial computer technology to ensure the stable operation under different circumstances;
2.Using LCD(TFT) liquid crystal ultra-thin flat panel displays, for realizing high quality images, low radiation;
3.Using ergonomic and design of aesthetic principles of ultra-thin cabinet which has very modern flavor;
4.Using the most advanced surface acoustic wave touch screen, 5 wire resistive touch screen, positioning accuracy and the spot did not drift;
5.Low power consumption (only normal display 1/7 power)
6.Built-in multimedia sound system(optional);
7.The building block installation, ticket printing, card reader and other expandable devices.
1.ticket dispenser
1.1appearance

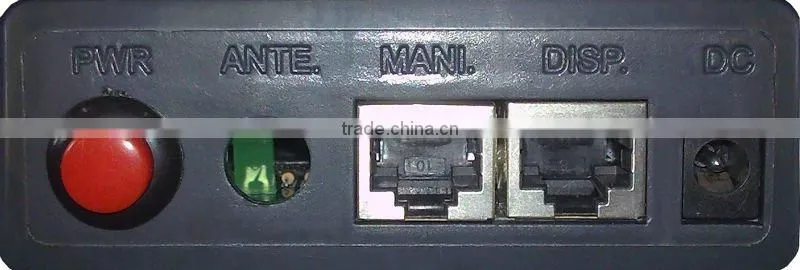

1.2connect port
1) [MANIPULATOR] port, used to connect with Manipulator or Opinion Controller, this port has single output and DC24V power.
2) [DISPLAY] port, used to connect with display screen and voice controller.
3) [DC24V] port, used to connect with DC24V power.
4) [PWR] Start-up button.
2. manipulator
1) With 29*6 big LCD display screen, able to display the serving ticket No. and currently awaiting people quantity.
2) Installation is easy and simple, all these Manipulator can be connected together only through one BUS with 8 cores.
3) Manipulator working voltage: DC 12-24V, Power<1w, Size: 160mm*100mm*43mm.
4) Manipulator have such functions as: Call, Previous, Re-call, Statistic, Setting login password, login, the sound hint when there is the queue customer and etc. total 21 buttons;
5) Input RS485 Signal;
6) Supplying power and Signal Cable are one same BUS, no need of any additional power supply;
unter dispenser
Counter display is used to show the recently called Ticket No. on the relevant counter, only used for digital tube display screen, Digital tube display screen show only number & digits and some very simple English letters.
Digital tube counter display
1) DC12V power supply
2) Shape is made of Aluminum mold, surface of Titanium Oxidation, Beautiful and generous.
3) Adopt idle for one certain time will automatically close (the idle time can set as per the queue software);
4) No signal will automatically close
5) With RJ45 Connector(Crystal Head)

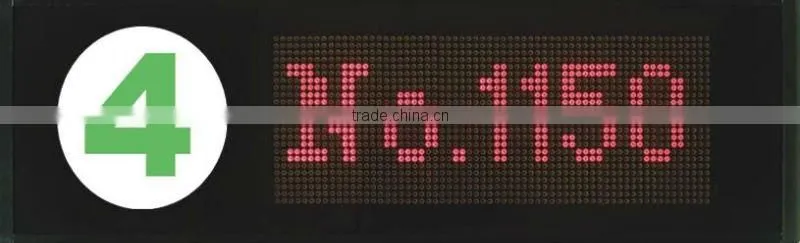

4.main display
Main Display is used to show the recently called Ticket No. and Counter No. of the whole queue system. Only used for digital tube display screen. Usually Main Display is installed in the awaiting area.
Digital tube Main Display
