CK6136D (1000mm) Series CNC Lathe

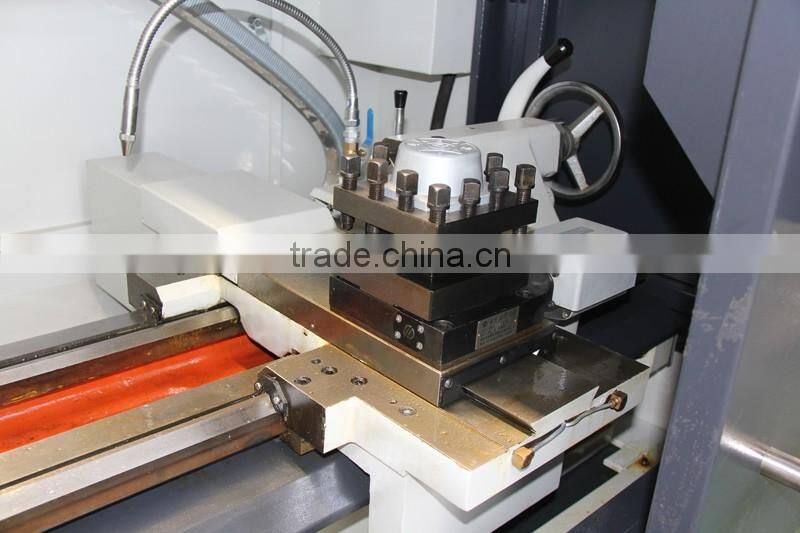

CK6136D (1000mm) Series CNC Lathe photo-1

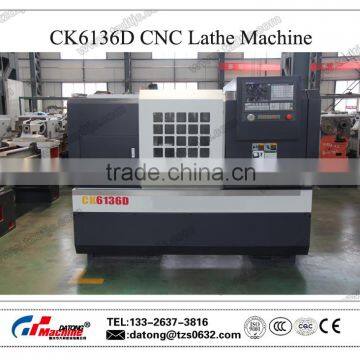

CK6136D (1000mm) Series CNC Lathe photo-2

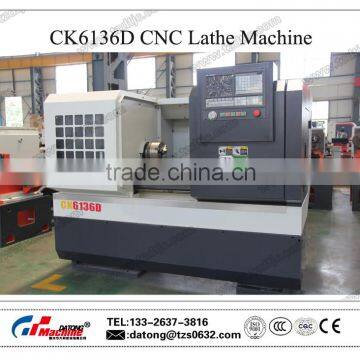

CK6136D (1000mm) Series CNC Lathe photo-3

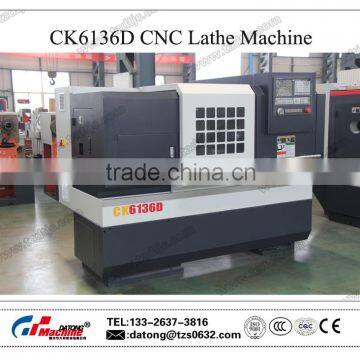

CK6136D (1000mm) Series CNC Lathe photo-4

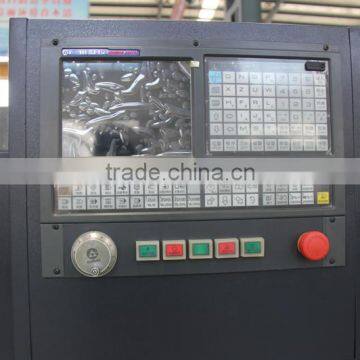

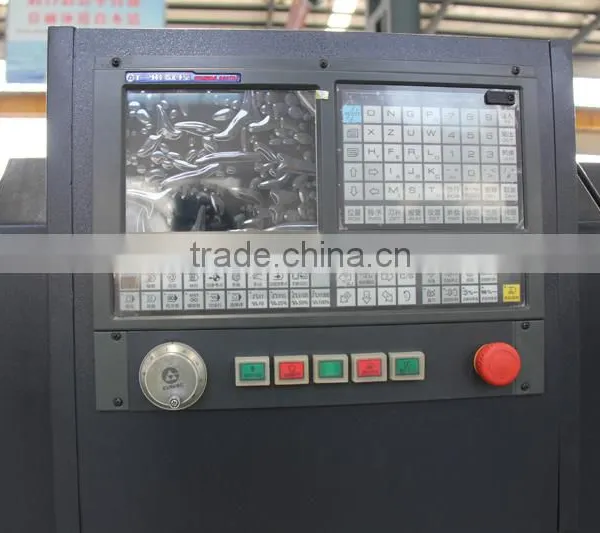

CK6136D (1000mm) Series CNC Lathe photo-5

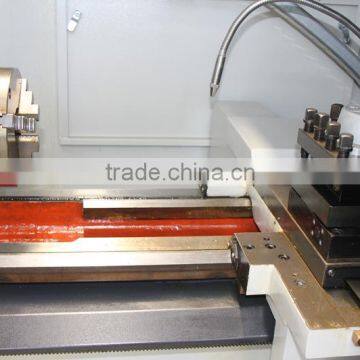

CK6136D (1000mm) Series CNC Lathe photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 360mm
Place of Origin Shandong, China
Model Number CK6136D*1000mm
Voltage Customer's Requirement
Power(W) 5.5KW(7.5HP)
Dimension(L*W*H) 2300*1350*1700mm
Weight 1400kg
After-sales Service Provided Engineers available to service machinery overseas
Product Description

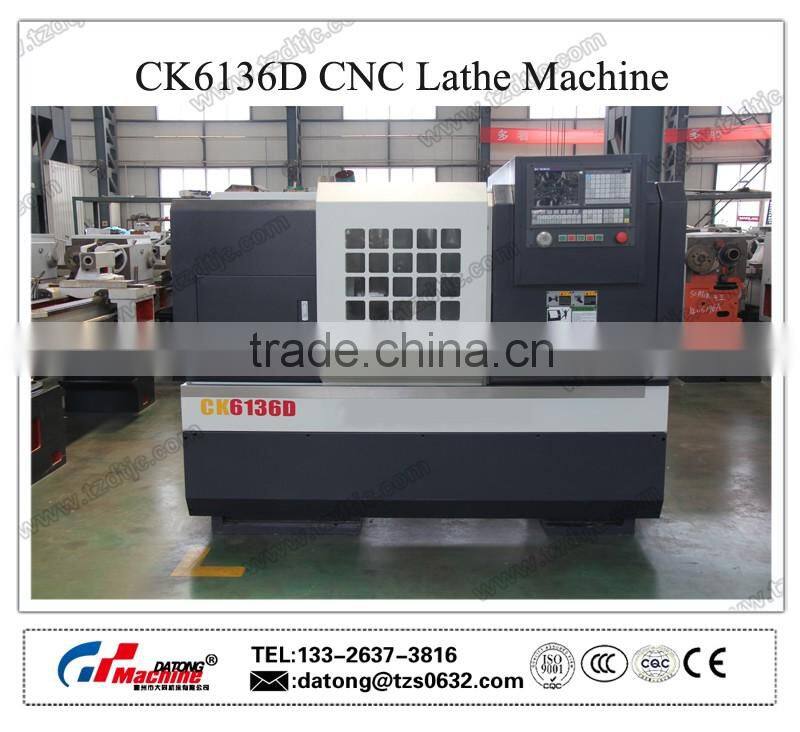

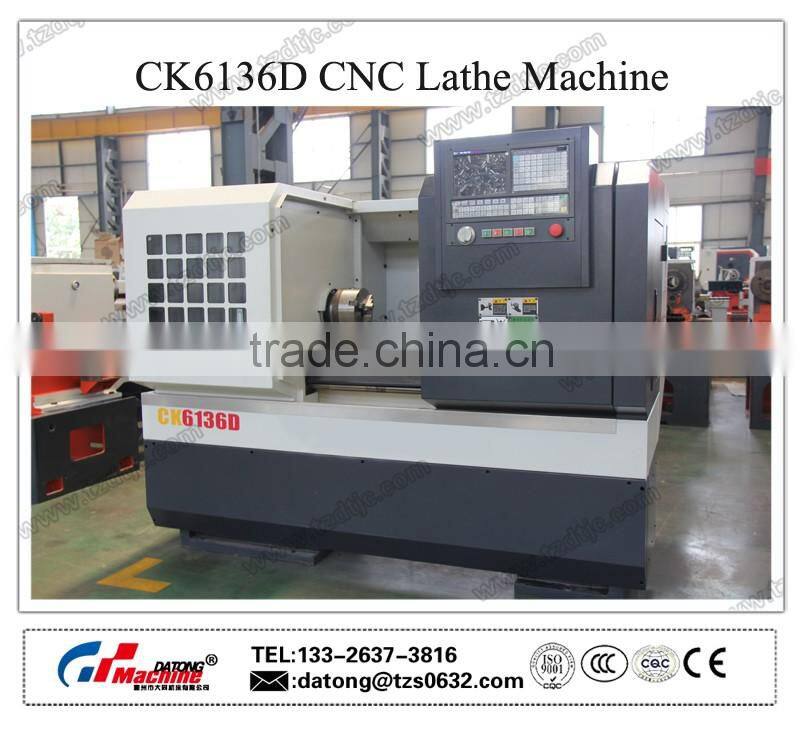

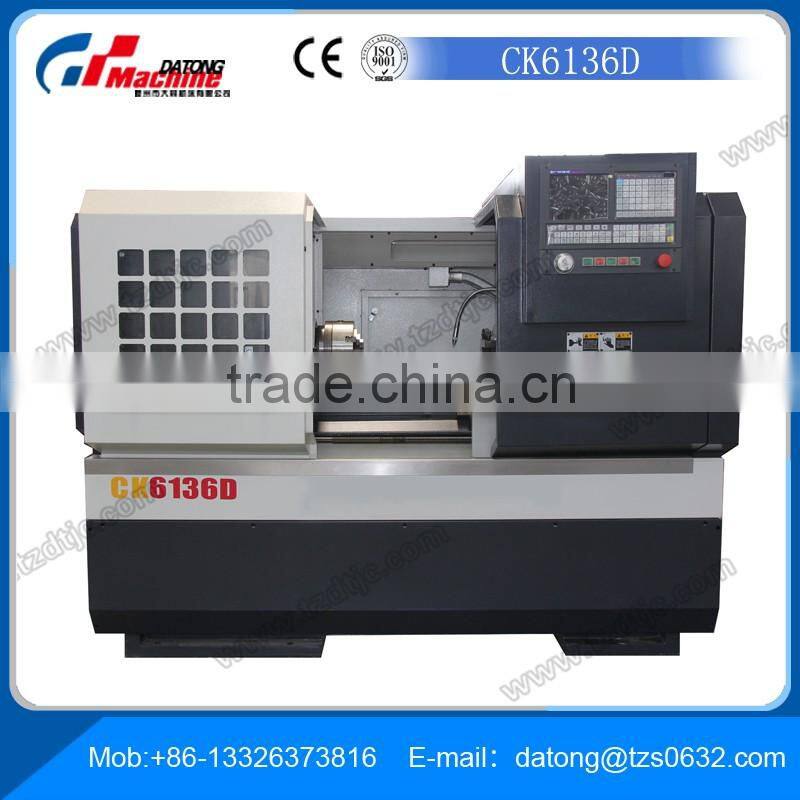

 CK6136D (1000mm) Series CNC Lathe



The Specification of the CK Series CNC Lathe(CK6136D/CK6136B/CK6140D):



Specifications

CK6136D

CK6136B

CK6140D

Max .Swing over bed

360mm

360mm

400mm

Spindle taper

MT6

Thru-hole of spindle

52mm

Spindle speeds (12steps)

30-1600rpm

30-3000rpm

30-1600rpm

Tailstock center sleeve travel

90mm

Tailstock center sleeve taper

MT4

Repeatability error

0.01mm

X/Z rapid traverse

3/6m/min

Spindle motor

5.5kw

Packing dimensions

(L*W*H mm) for 750

2100×1350×1700mm

Packing dimensions

(L*W*H mm) for 1000

2300×1350×1700mm

Weight(kg) for 750

1300kg

1400kg

1600kg

Weight(kg) for 1000

1400kg

1500kg

1700kg

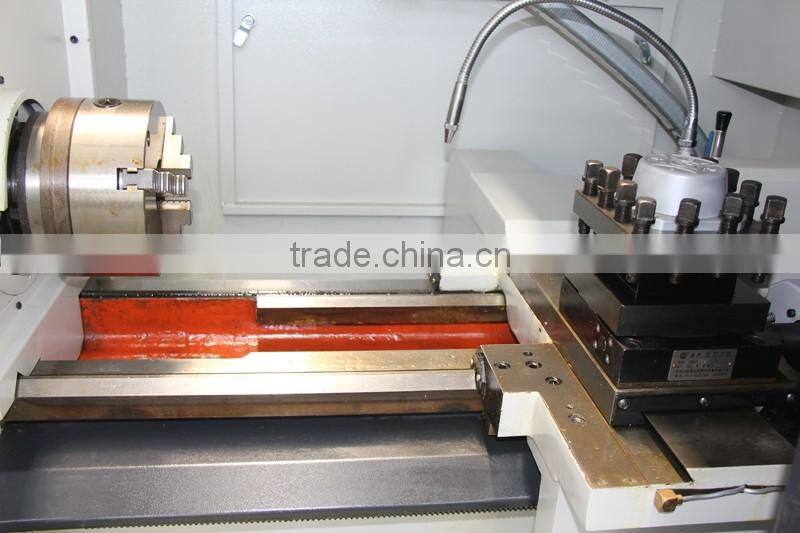

Detailed Images

 CK6136D (1000mm) Series CNC LatheCK6136D (1000mm) Series CNC Lathe

CK6136D (1000mm) Series CNC LatheCK6136D (1000mm) Series CNC Lathe

CK6136D (1000mm) Series CNC Lathe

Packaging & Shipping

CK6136D (1000mm) Series CNC LatheCK6136D (1000mm) Series CNC Lathe

Company Information

CK6136D (1000mm) Series CNC Lathe

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have collegeducation which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.

"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.

The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!



CK6136D (1000mm) Series CNC Lathe

CK6136D (1000mm) Series CNC LatheCK6136D (1000mm) Series CNC Lathe

Our Services

CK6136D (1000mm) Series CNC Lathe

FAQ

CK6136D (1000mm) Series CNC Lathe

CK6136D (1000mm) Series CNC Lathe
