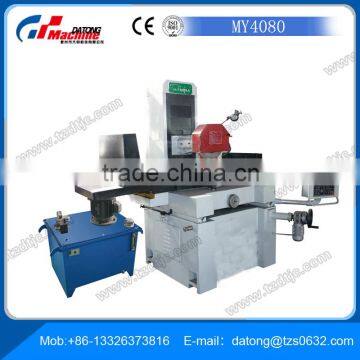

MY4080 Surface Grinding Machine
Specification:
Model |
MY4080 |
|||
Working Table |
Table Size(L×W) |
mm |
800×400 |
|
|
Max.Travel(L×W) |
mm |
900×480 |
|
|
T-slot(Number×Width) |
mm |
3×14 |
|
Grinding Head |
Max distance from spindle center to working table |
mm |
600 |
|
|
Grinding wheel(WA46K5V)Size (Outer diameter×W×Inner diameter) |
mm |
Φ355×40 ×Φ127 |
|
|
Grinding Speed |
50HZ |
r/min |
1450 |
|
|
60HZ |
|
1680 |
Feeding |
Longitudinal speed of working table(stepless ) |
m/min |
3-25 |
|
|
Cross feed of working table |
Continuous (stepless speed regulating) |
mm/min |
240 |
|
|
Intermittent (stepless speed regulating) |
mm |
0-8 |
|
|
Handwheel per revolution |
mm |
5.0 |
|
|
Handwheel per gradutaion |
mm |
0.02 |
|
Vertical feed of grinding head |
Handwheel per revolution |
mm |
0.8 (1.0) |
|
|
Handwheel per gradutaion |
mm |
0.01 |
|
Rapid up and down speed of(Approximation) |
mm/min |
1000 |
|
Motor Power |
Spindle motor |
kw*P |
4*4 |
|
|
cooling motor |
w |
125 |
|
|
Up and down servo motor power |
w |
180 |
|
|
hydraulic motor |
kw*P |
2.2*6 |
|
Working Precision |
Machining surface parallel to the base face |
mm |
300:0.005 |
|
|
surface roughness |
μm |
Ra0.4 |
|
Weight |
Net |
kg |
2800 |
|
|
Gross |
kg |
3200 |
|
Overall dimensions(L×W×H) |
mm |
2550×1650 ×2200 |
||
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It
as all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
