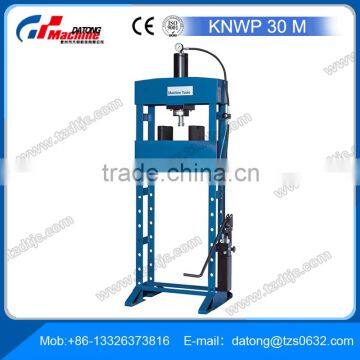

Hydraulic Workshop Presses KNWP 30 M for sale
Feature:
1.Removal and installation of press-fit bearings, bolts and bushings
2.Straightening beams, shafts, axles and sections
3.Pressing and crimping
4.Load tests and weld sample testing
5.Straightening of workpieces
6.Material testing
7.Rigid machine frame freaturing a carefully machined weldment structure
8.2-step hydraulics - with change-over switch for changing between quick-stroke and work stroke
9.The support table features a rigid design, but is easy to handle with adjustable height

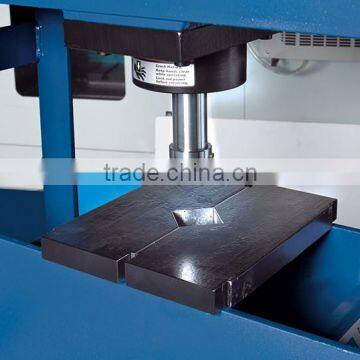

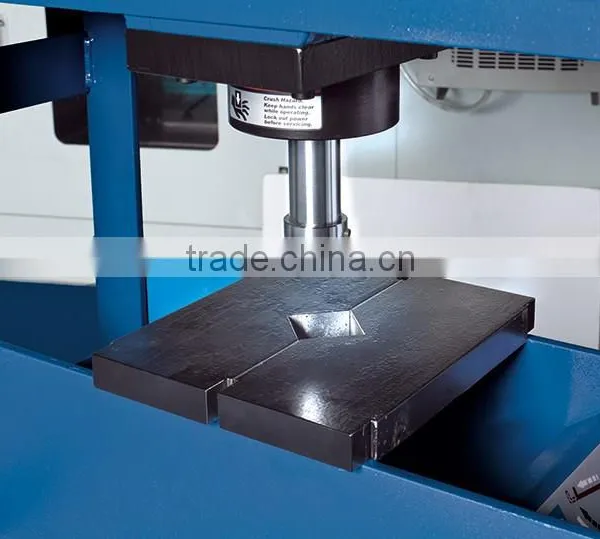

10.Standard multi-function die featuring a large belt width - for straightening flat materials and shafts - for machining workpieces in axial direction
Specification:
|

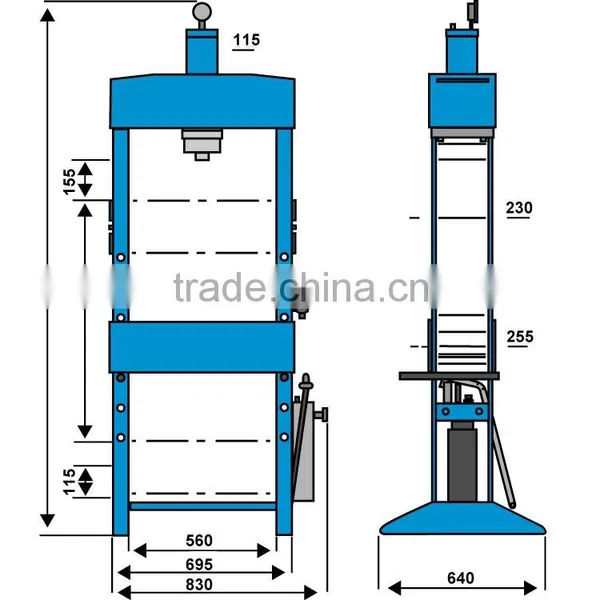

Working area
Pressure force
Operating pressure (max.)
Piston travel per quick stroke
Piston travel per work stroke
Total piston stroke
Flow rate quick stroke
Throat width
Flow rate work stroke
|
30 t
374,6 bar
3,84 mm
0,47 mm
160 mm
31,5 l/min
560 mm
3,8 l/min
|
|---|---|
|
Measures and weights
Hydraulic tank volume
Oil tank capacity
Weight
|
1,65 l
1,65 l
150 kg
|
