2015 hot sale small pellet machine
Specifications of our small pellet machine?
Our pet feed machine also may be referred to animal feed machine, pet food machine, shrimp feed
extruder and so on, which is widely used for producing grains into high-grade aquatic feed pellets
for:
A. Aquafeeds--- The fish feed pellet can make sinking fish feed pellets and other kind of aquatic
feed .The fish feed pellet is 0.9-20mm size, you can choose the size you prefer.
B. Pet feeds ---There have 9 shapes feed for your choosing, such as three prism-shaped, triangles,
cross-shaped, square-shaped, plum-shaped, feet shaped, wafer-shaped, large bone-shaped, small
bone-shaped.
All of these types feed pellet be made through changing the different shape molds, amd we will
supply 3 sets molds freely for you.
Raw materials of our small pellet machine?
All kinds of grains, such as bean, corn, wheat, etc. Some agricultural waste, such as rice husk,
cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially Low-bonding
and unformed materials.
Technical Parameter
Model |
Capacity |
Main Power |
Feed Power |
Screw Diameter |
Cut Power |
Conditioner Power |
Machine Size (mm) |
Weight |
JY60 |
0.18-0.2 |
15 |
0.4 |
Φ60 |
0.4 |
0.75 |
1780*1150*1300 |
500 |
JY70 |
0.25-0.30 |
18.5 |
0.6 |
Φ70 |
0.6 |
0.75 |
2460*1550*1740 |
940 |
JY80 |
0.35-0.40 |
22 |
1.1 |
Φ80 |
0.8 |
1.1-1.5 |
2650*1450*1750 |
1050 |
JY90 |
0.50-0.60 |
37 |
1.1 |
Φ90 |
1.1 |
2.2 |
2700*1800*1200 |
1900 |
JY120 |
0.70-0.80 |
55 |
1.1 |
Φ120 |
1.5 |
2.2-3.0 |
3200*1950*1900 |
2100 |
JY135 |
1.0-1.2 |
75 |
1.5 |
Φ135 |
2.2 |
3.0-4.0 |
3750*1980*1800 |
2250 |
JY155 |
1.8-2.0 |
90 |
2.2 |
Φ155 |
2.2-3.0 |
4.0-5.5 |
6600*2800*2330 |
4100 |
JYP195 |
3.0-4.0 |
132 |
2.2 |
Φ195 |
3.0-4.0 |
5.5 |
6600*2950*2400 |
5100 |
Features of small pellet machine
1) Pellets can keep floating for 24 hours without pollution to water.
2) Our pellet machine can make pellet from dia.1.0mm-20mm just by changing the mold.
3) The cutting device can make pellets of different length.
4) Molds can be changed to produce different shapes of feed pellets.
5) Electric heating device is adopted which can improve the feed expansion rate and pellets
floating time.
6) High temperature and high pressure cooking process,so it can ensure the pellet clean and
healthy.
7) This pellet feed is different shaped, unique taste and rich nutrition, suitable for dog, cat,
fish, bird, rabbit etc. small pellet machine

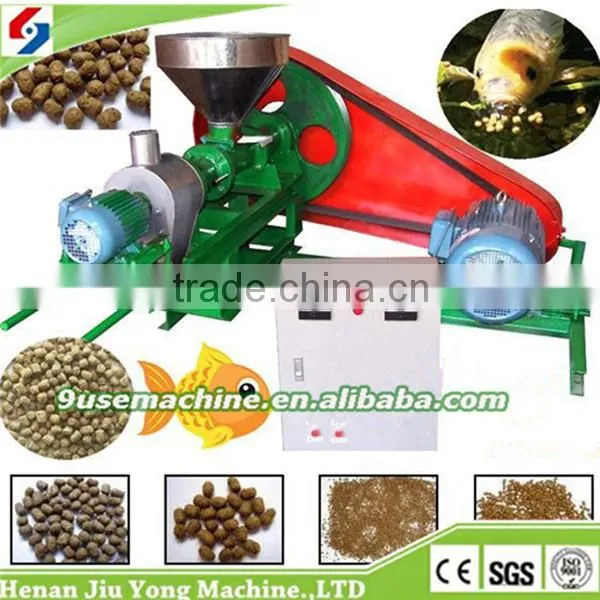

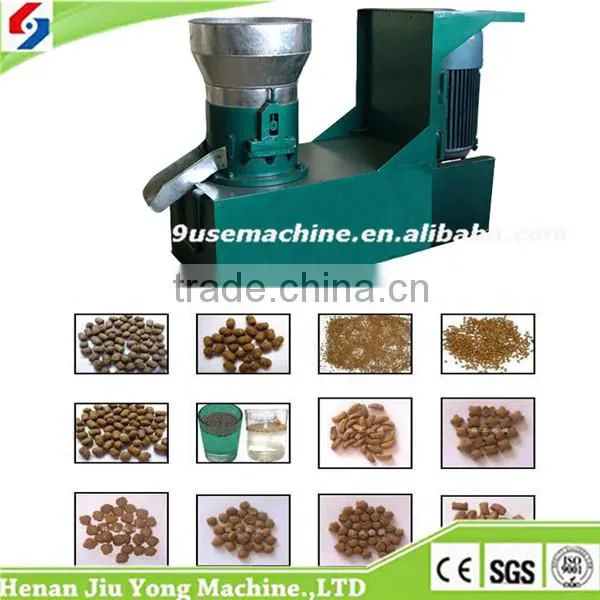

Product Photos
Working principle of small pellet machine
1) After the material is sent into feeding device, they will be pressed by the screw shaft with
high pressure and temperature which makes the raw material fully cooked and sterilized.
2) After being pressed through the template, the fodder will be thrown From the machine in a state
of granular.
3) Then the pressed material will be formed into pellets by shaping mould.You can change different
moulds to make pellets with different diameters.After that a cutting device will cut the formed
pellets into different length as required.
FAQ
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It's not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab
etc., but also can make pellets for cat, dog, etc.
Q: What size of pellet can be made by your fish feed pellet machine?
A: The size of pellet is based on the diameter of the die moulds. We can customized die moulds with
diameter of 0.9-20mm.
Q: Is there a formula of making fish feed pellet?
A: It totally based on the situation of your fish. We can offer free formula to our customers.
Q: The animal feed machine is a single machine or a complete production line?
A: It Is depend on your chooice. The pet feed machine can working seperatly, also in a production
line, from material crushing to final pellet packing. You can choose it freely.
Q: What is the delivery time of the pet feed machine?
A: Usually the single machine can be sent within 15 days after getting the deposit If it is a large
order or production line, the time maybe longer.
Trade Terms:
- Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
- Delivery Time: 10-15 days
- MOQ: 1pcs
- Package Informations: All the machines will be wrapped up with plastic film first, Carton Packing inside, Woodenbox outside(The box material can be made as your requirements).
