Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > RY-30x2007 1/4" Sony CCD 30x Optical Zoom 420TVL Security CCTV Box Camera

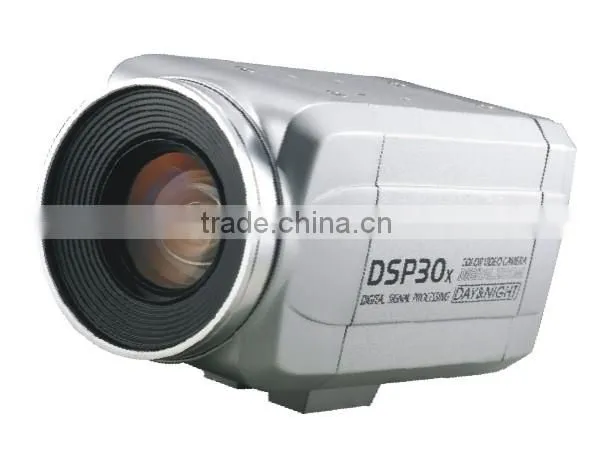

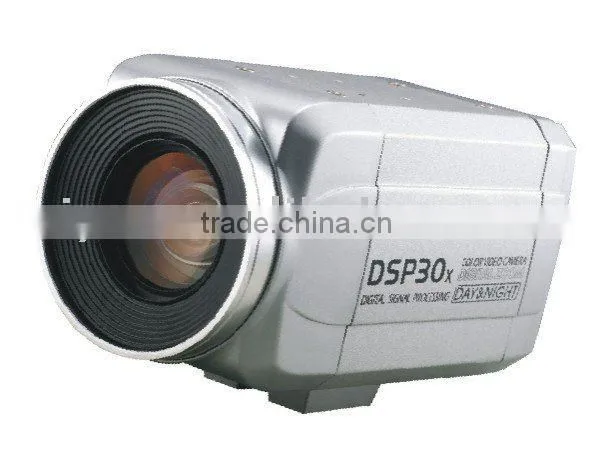

RY-30x2007 1/4" Sony CCD 30x Optical Zoom 420TVL Security CCTV Box Camera

Name: RY-30x2007 1/4" Sony CCD 30x Optical Zoom 420TVL Security CCTV Box Camera
Brand: Ruiye
SKU: 123408325
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ruiye

Model Number:

RY-30x2007

Shenzhen Rui Ye Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ruiye

Model Number RY-30x2007

Type Other, Analog Camera, Video Camera

Style Box Camera

Sensor CCD

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

Specifications

1/4" Sony Super HAD CCD
30X Optical Zoom
Focus length 3.6mm ~ 108mm
420 TV Lines

Technical Information:

Image Sensor :	1/4" SONY Super HAD CCD
Zoom Lens :	30X (3.9mm - 117mm)
Focus Length :	3.6mm - 108mm
Effective Pixels :	500 (H) x 582 (V)
Focus :	Auto / Manual / Auto Key Control
Iris :	Auto
Horizontal Resolution :	420TVL
Minimum Illumination :	1.0 LUX / F1.2
Electronic Shutter :	- PAL : 1/50 - 1/100,000 SES - NTSC :1/60 - 1/100,000 SES
Scanning System :	PAL / NTSC
Viewing Angle (Horizontal) :	Approx. 52°
Viewing Angle (Vertical) :	Approx. 42°
S/N Ratio :	>48dB
Video Output :	BNC connector, 1Vp-p / 75Ω
White Balance :	Auto
Backlight Compensation :	Auto
Gamma Correction :	>0.15
Protocol :	PELCO-P / PELCO-D
Baud rate :	2400 / 4800 / 9600 bps
Control Method :	OSD Screen Menu / Line Control / RS-485 Control
Body Material :	Aluminum alloy
Camera Dimensions :	- approx. 115 (W) x 65 (H) x 57 (D) mm - approx. 4-1/2" (W) x 2-1/2" (H) x 2-1/4" (D) inch
Bracket Height :	approx. 8cm
Operation Temperature :	-10°C ~ 50°C
Power Supply :	DC 12V, 1000mA
