Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > RY-22X2005 420TVL 1/4" Sony CCD 22x Zoom IR CCTV Indoor Security Camera

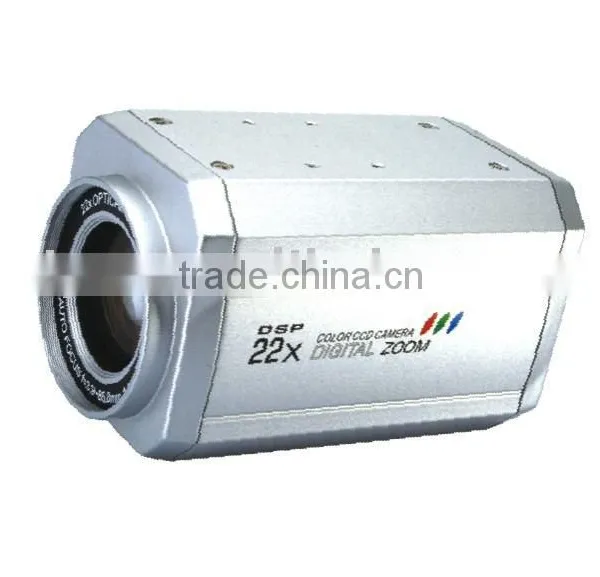

RY-22X2005 420TVL 1/4" Sony CCD 22x Zoom IR CCTV Indoor Security Camera

Name: RY-22X2005 420TVL 1/4" Sony CCD 22x Zoom IR CCTV Indoor Security Camera
Brand: Ruiye
SKU: 123408335
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ruiye

Model Number:

RY-22*2005

Shenzhen Rui Ye Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ruiye

Model Number RY-22*2005

Type Other, Analog Camera, Video Camera

Style Box Camera

Sensor CCD

Technology Pan / Tilt / Zoom

Special Features Vandal-proof

Specifications

1.Very low Lux of 0.1 Lux
2.Power 27x zoom vari-focal
3.OSD Menu/RS-485 control
4.Auto focus
5.Auto electronic shutter

Image Sensor	1/4" SONY CCD
Power Supply	DC12V ± 5%
Sync. system	Internal
Horizontal Resolution	420TV Line
Minimum Illumination	0.1 Lux/F1.2
Video Output	1.0Vp- p, 75ohm VBS
S/ N Ratio	>48dB
Focus length	3.2mm ~ 86.4mm
Zoom	Optical zoom: 22X
Focus	Auto/Manual/Auto key control
Iris	Auto
Screen menu control	Address code, electric shutter, backlight compensation, auoto gain control, brightness, sharpness, positive/negative, mirror, focus, baud rate
Electronic Shutter	1/50 ~ 1/12000
White Balance	Auto
Backlight Compensation	internal (ON/OFF)
Work temperature	-10?C ~ +60?C
Work humidity	0% ~ 96%
Control method	Screen menu/Line control/RS-485 control
Protocol	PELCO-D
Baud rate	2400/4800/9600
