sdi to hdmi onvif1.1/2.0 converter

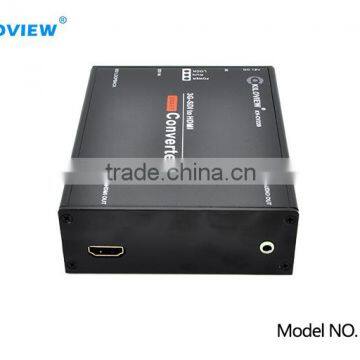

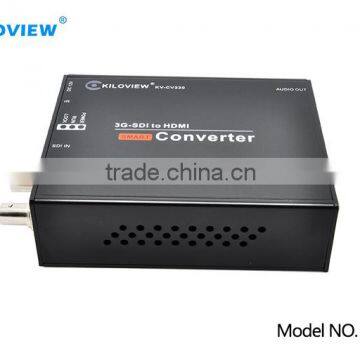

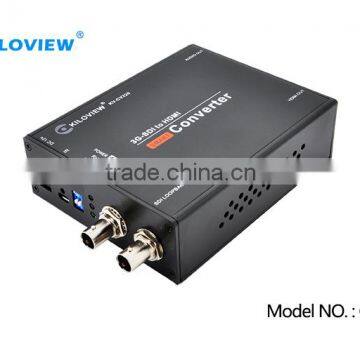

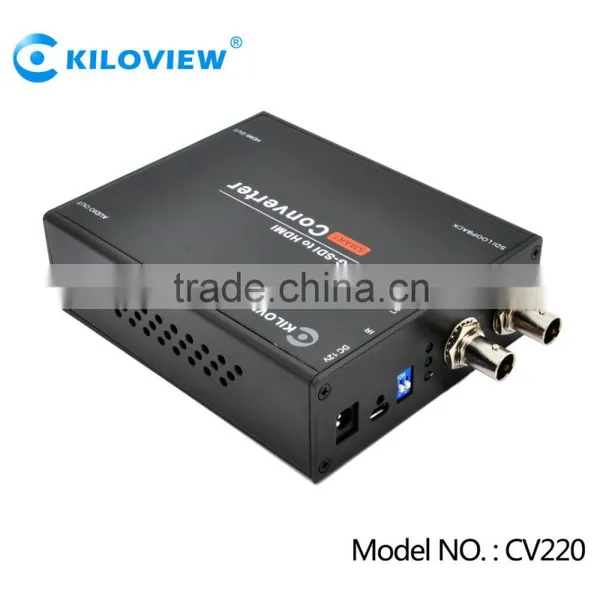

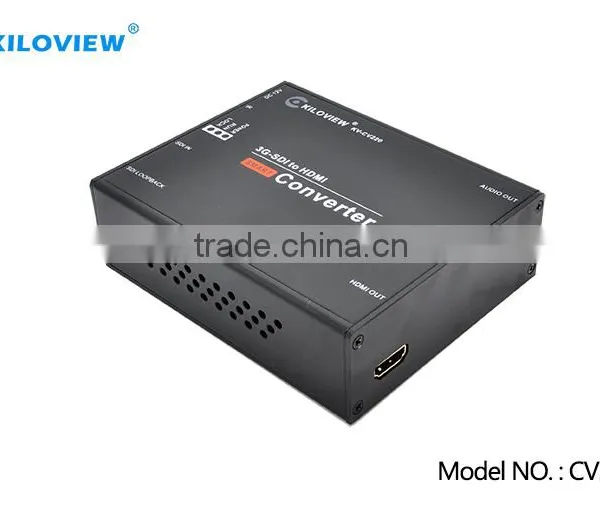

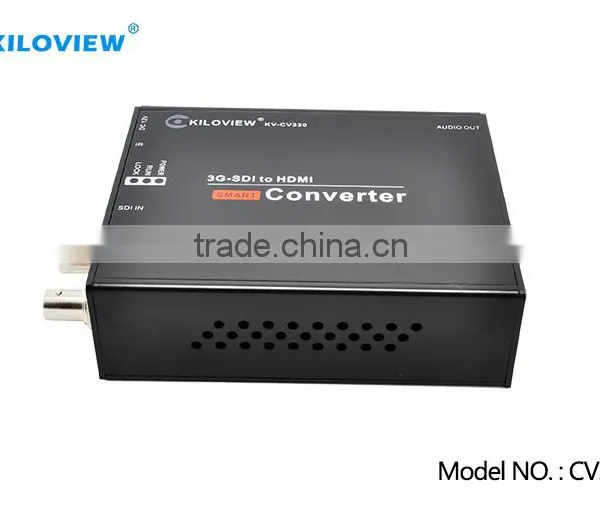

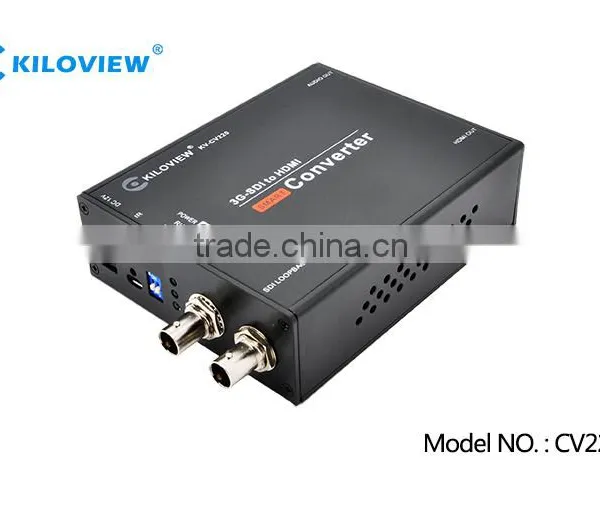

KV-CV220 SDI to HDMI converter is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal.
KV-CV220 SD/HD/3G-SDI to HDMI converter is compatible with SD SDI(270M),HD SDI(1.485G) and 3G SDI(2.97G) standard, built-in SDI clock-recovery circuit and circuit equalizer that can recover attenuation and distortion SDI signal after long-distance transmission.
KV-CV220 SD/HD/3G-SDI to HDMI converter supports many image enhancement and handling technology such as color conditioning,3D denoise,interlacing/progressive video conversion,video amplification/scale,frame rate convert to guarantee image conversion meet professional quality standards.
KV-CV220 SD/HD/3G-SDI to HDMI converter could convert SDI signal to HDMI, and our products could process resolution ratio,frame rate and image scaling of different ports. Audio signal that embedded in SDI could embed to HDMI through separating and converting and simultaneously transmit to analog circuit output interface.
KV-CV220 SD/HD/3G-SDI to HDMI converter supports HDMI DDC function and could self-adaptively output the best mode of HDMI/VGA. It supports remote control operation and could connect USB with PC for higher setup or firmware upgrading. KV-CV220 is equipped with free PC port management controlling software.
Our product KV-CV220 SD/HD/3G-SDI to HDMI converter is widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia
advertisement and video security monitoring and so on.
Model No. |
KV-CV220 |
Input interface |
1×BNC SDI |
Input signal type |
SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
Support input format |
525i 59.94,625i 50 720p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 |
SDI signal amplitude |
0.8Vp-p |
SDI impedance |
75 Ohm |
SDI coupling type |
AC |
SDI signal jitter(typical) |
SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI |
Maximum output coax length |
Belden 1694A: SD-SDI 400m,HD-SDI 200m,3G-SDI 140m Notice:transmission distance depends on source quality and coax specification. This parameter is the value that Phabrix SDI tester making signal and transmit through Belden 1694A coax. It may be different in practical application. |
SDI loopback interface |
1×BNC SDI |
HDMI output interface |
1×HDMI (165MHz/HDMI 1.3 standard) |
Dimensions(mm) |
156*100*36 |
Weight |
N.W.: 340g G.W.: 695g |
Operation temperature |
-10°C ~ 60°C |
Storage temperature |
-30°C ~ 60°C |
Relative humidity |
20~90% RH (Non-condensation) |
Power supply |
DC 12V, 1A |
- Support any SDI input format:
- SD: 525i @ 59.94Hz, 625i @ 50Hz
- HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
- 720p @ 50Hz / 59.94Hz / 60Hz
- 1080i @ 50Hz / 59. 94Hz / 60Hz
- 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
- 3G: 1080p @ 50Hz / 59.94Hz / 60Hz
- Support SMPTE 425M,
- SMPTE424M,SMPTE292M;
- With 1 CH SDI signal loopback;
- HDMI audio/analog audio output simultaneously
- High quality 10bit YUV4:2:2 conversion, keeping color not distortion;
- Professional image enhancement, denoise, color conditioning, de-interlace and scaling;
- Support OSD and menu operation windows;
- Support HDMI DDC, self-adapt the best mode of HDMI;
- Support all above formats UP/DOWN interconversion;
- Support Interlace/Progressive interconversion & frame rate convert;
- Blue screen warning when the signal loss;
- Support users to choose specified output format by remote-controller and set image output ratio.
Changsha Kiloview Electronics Co.,Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission and control product researching and provide digital video technology and solutions.
Relying on first-class R&D team, we have professional EPGA video processing technology, SDI signal processing technology and video compression and transmission technology.With the help of professional signal test instruments, we provide strictquality control for each product.
Our ideal and commitment is to provide customers best using experience and satisfactory service. We own professional after-sale service team that could help solve various problems.
If any inquires, please feel free to contact us. We will try to solve your problems within the shortest time. Email: iris#(#represent@)
