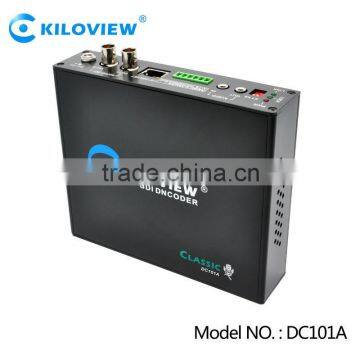

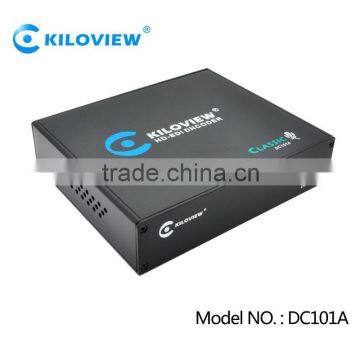

KV-DC101A sdi decoder is a network(IP)HD video decoder with high performance. KV-DC101A could get IP-Camera from network, stream media server or stream media on KV-EC serial encoder (based on RTSP, RTP or multicast, then outputs video and audio to SDI through self-adaptive decoding. KV-DC101A supports various output signals like SD(270M), HD(1.485G) standard, 525i, 625i, 720p, 1080i and 1080p(maximum 30Hz).
SDI Decoder KV-DC101A independent R&D, HD losseless, uncompression and low delay
KV-DC101A sdi decoder has functions of self-adaptive decoding and intelligent controlling for network delay. Decoding delay could be lower or equal to 200ms in typical network environment. Even though low code rate decoding and about 10% network packet loss,
KV-DC101A sdi decoder could use image enhancement and fault-tolerant technology to clearly restore encoding video and audio, no obvious distortion, smear, frame loss and mosaic phenomenon of pictures with features of actual color reproduction, clear sound and high fidelity. KV-DC101A supports H.264 encoding video with bit rate high up to 12Mbps and decoding output of AAC-LC/G.711 encoding video.
KV- DC101A sdi decoder has image scaling capacity, could let after-decoding video larger/smaller converting to adapt to different output video format. Audio could be embedded in SDI signal, then synchronously transmitting with video, meanwhile transmitting Line Out analog audio.

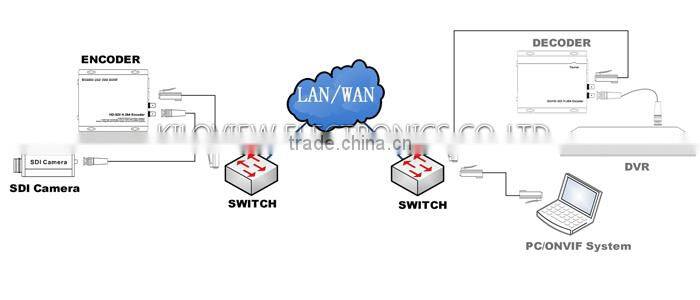

Through cooperating with KV-EC serial encoder products(SDI Encoder), KV- DC101A sdi decoder also supports two-way voice intercom and RS-485 signaling passthrough function. KV- DC101A provides open source SDK, supporting Windows/Linux/Unix cross-platform and programming second development to realize manage and control for equipments.
KILOVIEW Electronics Co., Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission, product R&D control, and providing technology and solutions for digital video. Each product will be shipped out after being tested and checked qualified by our professional quality inspectors and testers in the production department. Our products have been operated continuously for 24 hours, 6 months in clients’ specific project, very stable and without error, getting customers’ affirmation and recognition. We also provide other digital video products. SDI ENCODER
- Support SD/HD SDI interface, support AES/EBU embedded audio;
- Dual SDI output simultaneously (SDI distribution function), enhanced Cable Driver could guarantee that SD-SDI transmitting distance is longer or equal to 350 meters, while HD-SDI transmitting distance is longer or equal to 180 meters;
- Support various output formats like 1080p30/25/24, 1080i60/50,720p60/50, 480i/576i;
- Video scaling, frame rate conversion and image enhancement;
- Support RTP, RTSP and RTP multicast medial transmission protocol;
- Input and output of analog audio could realize two-way voice intercom, analog audio and SDI embedded audio could be transmitted synchronously;
- switching value input/output, connecting with sensor, alarm and other control equipment;
- RS-485 interface, could realize PTZ cloud control function, and two-way signaling pass-through with decoder/ PC port;
- Decoding delay is controlled by intelligent network, lower than 200ms in typical network environment;
- Image enhancement and fault-tolerant technology, strong resisting error code capability, excellent picture quality, clear acoustic;
Provide communication protocol for software development SDK and device management control which can integrate seamlessly with the third party application platform.
Killoview KV-DC101A H.264 HD-SDI video decoder signal | |
Killoview KV-DC101A Signal |
SDI Signal amplitude 0.8Vp-p SDI impedance 75 ohm SDI coupling type AC SDI timing jitter SD SDI: ≤ 0.15UI HD SDI: ≤ 0.8UI SDI alignment jitter SD SDI:≤ 0.15UI(1KHz) HD SDI:≤ 0.2UI(10KHz) Supported output formats 1080p24/25/30, 1080i60/50, 720p60/50, 480i/576i |
Killoview KV-EC101A H.264 HD-SDI video encoder decoding | |
|
Killoview KV-EC101A Decoding
|
Video decoding H.264 Audio decoding AAC-LC / G.711 (aLaw / uLaw) Video bitrate range 128Kbps ~ 12Mbps Audio birate range AAC: 8Kbps ~ 320Kbps G.711: 64Kbps Decoding delay ≤200ms |
Providing customers best using experience and satisfactory service is always our ideal and commitment. We own professional after-sale service team that could help solve various problems. If any questions, please feel free to contact us. We will try to solve your problems within the shortest time.Email:tracy#(#represent@)
KILOVIEW Electronics Co., Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission, product R&D control, and providing technology and solutions for digital video.
SDI products that applied in broadcasting and TV fields represent technology, quality and performance.
