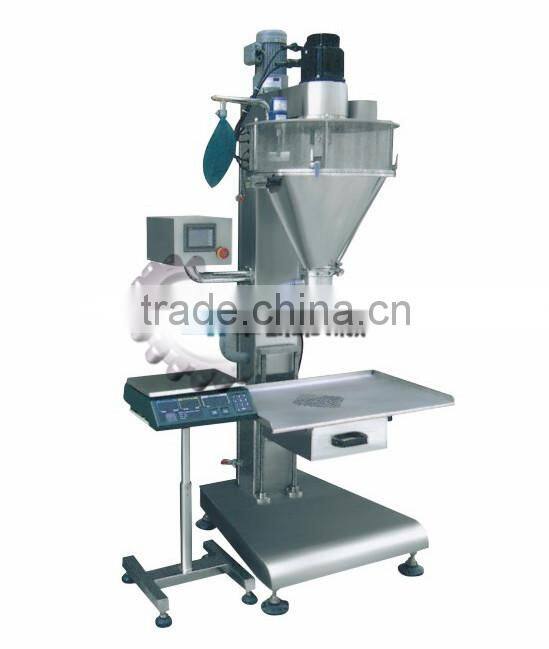

Help CenterZH-1B3 Semi-automatic Powder Packaging Machine
Related Products
-
ZH-GZF500 Powder Screen MachineUS$ 19,000 - 45,000MOQ: 1 Set -
DCS3A Powder Filling Machine for BagsNegotiableMOQ: 1 Set
-
RSQ-X Vacuum Feeding MachineNegotiableMOQ: 1 Set
-
ZHS-2B-1 Automatic Powder Filling MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
ZH-1A Semi-auto Powder Filling MachineUS$ 5,000 - 6,000MOQ: 1 Set
Automatic Powder Filling Machine
Description:
Stainless steel: conforming to the GMP and food health authentication, suitable for packaging the corrosion resistance chemical products.
PLC touch screen and man-machine interface: PLC works stably, antijamming, high weighing precision, convenient and easy operation; Weighing feedback proportion track type, overcoming the shortcoming of changes of packaging weight caused by the changes of material proportion.
Main features :
1.Servo motor-driven: high precision location, strong torque, long life, adjustable rotational speed.
2.Speed reducer: low noise, long life and lifelong maintenance.
3.Packaging weight adjustable at any time, operating condition changeable as necessary, convenient operation
4.Adjustment parameter of each kind of product can be stored for later use but not more than ten.
5.The entire seal air damping glass and stainless steel hopper, clear sound of the material, no dust releasing, with dust exhaust apparatus at the mouth of filling, keeping the workshop clean.
6.Can adapt the ultra fine dust to the big pellet and so on the many kinds of materials by replacing the screw attachment.
Main Technical Parameters:
| Metering mode | Screw rotation filling traced by weighing feedback |
| Filling Weight | 1 - 5000g |
| Weighing range | 1-6000g(Resolution 1g) |
| Packaging precision |
≤100g with an error ≤±0.5-1g 100-1000g with an error ≤±0.5%-1% >1000g with an error ≤±0.25%-0.5% |
| Filling Accuracy | ≤1% |
| Filling Rate | 10-50 bags/min |
| Power Supply | Three-phase 380V(or single phase 220V)50-60Hz |
| Total Power | 1.2KW |
| Total Weight | 260Kg |
| Overall Dimensions | 800X1200X2050mm |
| Hopper Volume | 50L |
Terms and Conditions:
Payment: 30%TT in advance, 70%TT before machine ship out;
Delivery time: around 30 days to leave our factory after advance payment and samples
Warranty: one year after shipment.
Packing: according to export standard
See following some photos :
Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
