Home > Electrical & Electronics > Circuit Board > PCBA > 8s 24v 100A BMS PCM PCB for Lifepo4 Battery Packs Peak Current Normal 150% Building Management System Bms

8s 24v 100A BMS PCM PCB for Lifepo4 Battery Packs Peak Current Normal 150% Building Management System Bms

US$ 1 - 100 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

oem

Model Number:

Contact Supplier Request Quote Chat Now

Shenzhen Youngpower Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name oem

Model Number 8s

Base Material plastic

Copper Thickness oem

Board Thickness oem

Min. Hole Size oem

Min. Line Width oem

Min. Line Spacing oem

Surface Finishing oem

Specifications

1.Factory price
2.Welcome OEMs and ODMs
3.Quick Delivery
4.1-Year Warranty For manufacturing defects only
5.Free Samples

Product Description

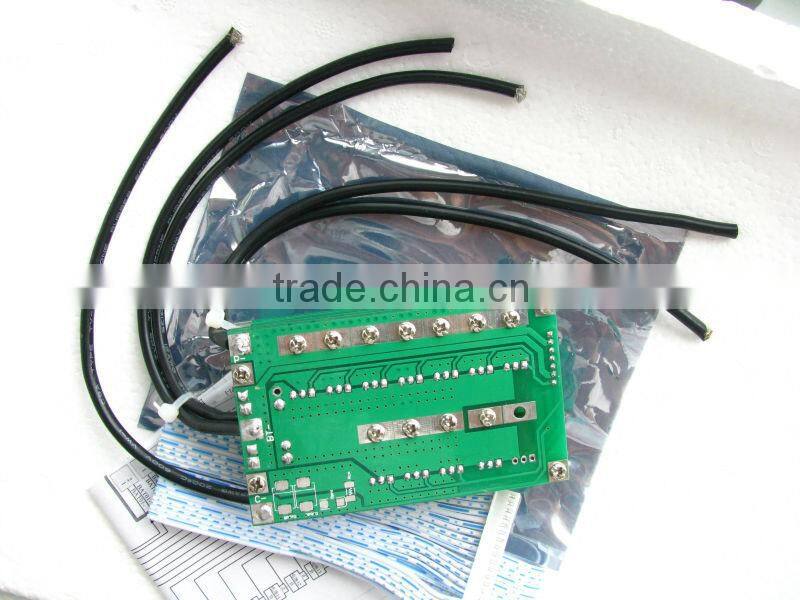

8s 24v 100A BMS lifepo4 battery packs BMS PCM PCB 120A work current 150% peak bms protection circuit module for lifepo4 battery

OEM BMS OFFER

No.	Item		standard
1	Voltage	Charging voltage	lifepo4(3.65V/1cell)
		Single section equilibrium voltage	lifepo4:3.65V±0.025V
2	Current	Single section equilibrium current	0~200mA(adjustable)
		Single section consumption current (consumable)	≤20μA
		Maximum continuous discharge current	100A
3	Overcharge protected	Charging test voltage	3.65~4.4V(adjustable)
		Charging detection delay time	0.96S—1.4S
		Charging recovery voltage	3.8~4.4V(adjustable)
4	Overdischarge protected	discharge detection voltage	1.9~3.1V(adjustable)
		discharge detection delay time	115—173mS
		discharge recovery voltage	1.9~3.1V(adjustable)
5	Over-current protected	Over current detection voltage	0.6V
		Over current detection current	150%
		Over current detection delay time	7.2ms—11ms
		recovery mode	Disconnect load automatic recovery
6	Short circuit protection	Detection state	External short circuit
		Detection delay time	200-500us
		recovery mode	Disconnect load automatic recovery
7	Inside resistance	Protection circuitMOSFET)	≤30mΩ
8	temperature	Operating temperature range	-40~+85°C
		Storage temperature range	-40~+125°C

Note:

Any close above 3.65 v input a string of battery, then equilibrium, balanced with light, which full of be clear at a glance all the way!

Any shut down a string of battery is lower than 2.50 v output. Completely protect your expensive of lithium iron batteries!

Balanced current increased to 80 from 80 ma ma, electrify equilibrium time is shorter. better

High precision integrated chip control, high stability;

MOS tube drive: able to discharge, over current situation rapidly shut off, over current situation is solved by using the MOS tube, such as can't shut off quickly, during internal resistance increases, lead to rising temperatures, even burned MOS tube.

Packaging & Shipping

Package: 40pcs per carton.

Delivery time:2~10 working days,Bulk pls contact me.

Weight: 10kg

Size: 40*30*22.5CM

Ship way: DHL,UPS,TNT,FEDEX,SF express or by Sea.

Our Services

1.Samples: Free, customers pay ship cost.

2.OEM and ODM serice offer.

3.Warrant:1 year
