Brand: DOBRY
Model: P190
Working frequency: GSM 850/900/1800/1900MHz

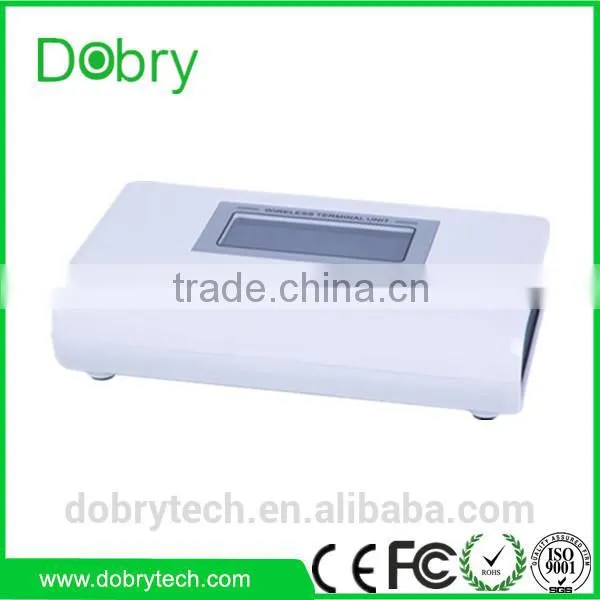

Product name: NEW 3G FWT GSM to landline PSTN converter UMTS 850/900/1800/1900/2100Mhz
Key words: dual band quad band gsm PSTN gateway, gsm PSTN fwt fixed wireless terminal, gsm fixed cellular terminal, gsm wireless voice box. gsm sim box, gsm call communicator for telephone, billing meter, alarm system and IP PABX, IP PBX etc.
Software version:
GSM PSTN gateway with LCR has the function of choosing the route automatically. When users dial out from the
device,it will check the prefix number.Users just need to preset it in the unit,then it will call out through GSM/PSTN
according to the presetting rules.Also,both GSM and PSTN support call-in.
When user is in call through GSM line,if another call arrives at PSTN,the caller will hear busy tone,and vice versa.
If PSTN line is off, it will dial out from GSM SIM card without distinguishing at high cost.
If the SIM card is off or no signal, call will dial out from PSTN line.
Features:
1)Strong signal with high gain antenna. clear voice
2) caller ID display
3)IMEI changeable (optional)
4)Backup lithium-ion battery(optional)
5)SIM Card supported(1.8V,3V)
6)Supports DTMF 2'nd dialing out
7)Locking PIN / network (optional)
8)Hides subscriber ID (been sent out)
9)Connects Alarm systems for security use
10)Provides reversal polarity signal for metering
11)Compatible to most telephones, PBX and VoIP gateways
12)Provides optimized circuit connecting the exchange device for Extension
13) Simple to install and easy to maintain
14)Steady module and reliable design ensures good performance
15) Suitable for wide voltage range and low power consumption
16) Suitable for all kinds of weather and environment
17) RJ-11 ports (1 FXO for PSTN line and 1 FXS port)
18)Auto-select economic route(Low-cost routing LCR function)
19)When GSM is unavailable,calls will be forced to dial out from PSTN.
20)When not connecting to PSTN line,GSM will provide the forced dial-out function.
21)Routing between PSTN and GSM
Users can program the numbers they need to dial through GSM. The GSM PSTN Gateway will choose the
proper path (GSM or PSTN) to make the phone call - This is ideal when calling work colleagues and can be
used for further cost savings when calling mobile phones on other networks depending upon the mobile phone tariff.
22)ACR Dialler (Automatic Call Routing)
In addition to GSM/PSTN router, the GSM PSTN Gateway also has all features of an ACR dialer providing
users with the ability to use alternative telephone companies and calling cards for cheaper PSTN calls.
23)Answering a GSM Phone Call by Normal Telepohone
When the handset receives a call, the normal telephone will ring. User can then pick up the handset and answer
the call.
24)Use GSM as a PSTN Line
Under some conditions, the PSTN line is not available. Users can still use a normal telephone or PBX through the GSM network.
Specifications:
1) Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
UMTS 3G 850/2100,900/2100Mhz, 850/1900Mhz, 800/850/900/1900/2100Mhz (optional)
2) Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
C) UMTS 850 UMTS 2100
I) Transmission:824 ~ 849MHz I) Transmission: 1920~ 1980MHz
Ii) Reception: 869 ~ 894MHz Ii) Reception: 2110~ 2170MHz
D) UMTS 900 UMTS 2100
I) Transmission: 880~ 815MHz I) Transmission: 1920~ 1980MHz
Ii) Reception: 925~ 960MHz Ii) Reception: 2110~ 2170MHz
3) Channel space: 200kHz
4) Max power: 0.25W / 0.5W
5) Consumption:
A) Immobility: <25mAh
B) Transmission: <400mAh
6)Input: AC100 - 230V, 50 / 60Hz
7)Output: 5V 2A
8) Sensitivity: -105dB
9) AC power: DC 10V - 20V
10) Dial tone frequency: 450MHz (standard)
11)Connector of power: US,EU, UK,AU types
12)User line, bell signal: In line with GB/T15279
13) Switching type / transforming type AC adapter (optional)
14) Antenna amplifying: 3.5dB (omni-direction), 12dB (certain direction/chosen direction)
15)Connection mode: RJ-11 phone socket
16)Antenna connection: SMA antenna connection
Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
Item |
Quantity |
Remark |
3G GSM FWT to landline PSTN converter |
1pcs |
|
Ac- adapter |
1pcs |
AC-110-240V, DC5V/1A |
Antenna |
1pcs |
Magnetic Antenna with 3m cable |
User's Manual |
1pcs |
English |
Device size:
G.W: 0.5kg per set (included adapter, antenna and manual).
20pcs/CTN, 11KG/CTN, CTN Size: 42*38*26cm
1 year warranty
With R & D team, OEM is accepted in bulk order.
To them, study is the happiest thing. Reading is the only way to know the world.
Although it is free in tuition and books,study is difficult for kids in some China remote rural areas. Kids have to walk several hours in mountain-road and reach to school. Almost young people work in city. Only children and the old leave at home. They have to cook and do farm work after school. No care and companionship from parents, reading is their soul food. But,the extra-curricular books are luxury and for them. No pleace and no money to buy. We do hope to provide more books for those kids.
Unlocked or locked----Unlocked
New or second hand----100% NEW and original.
