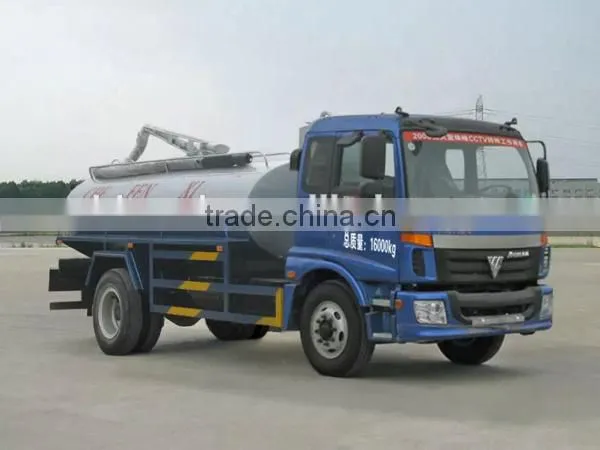

FOTON AUMAN 4x2 12000L Fecal Truck 160hp Good Quality

Name: FOTON AUMAN 4x2 12000L Fecal Truck 160hp Good Quality
Brand: FOTON
SKU: 123363203

US$ 24,000 - 28,000 MOQ: 1 Unit

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 3

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 3

Fuel Type Diesel

Tank Volume 6000L

Dimension (L x W x H) 9000X2490X2900

Place of Origin Hubei, China

Brand Name FOTON

Model Number HLQ5163GXEB fecal truck

Horsepower 160hp

Gross Vehicle Weight 19000

Product Description

Vehicle parameters
Vehicle Model		HLQ5163GXEB	Vehicle Brand	HELI
Overall dimensions		9000X2490X2900mm	Curb weight	7760kg
Tank dimensions		5600×2150×1380mm	Tank volume	12000L
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			BJ1163VKPGG-1	Chassis brand	FOTON
Overall dimensions			8805x2364x2760mm	Wheel base	5000mm
Front/rear wheel track			1900/1800mm	Front/rear suspension	1365/2440mm
Approach/departure angle			20/10°	Maximum speed	90km/h
Chassis Manufacturer			Beijing Foton Daimler Motor Co., Ltd.
Cab	Configuration		A row and a half cab(with sleeping berth),allowable 3 passengers, ETX2200 flat top,air conditioner
	Color		Red,other color is optional
Engine	Model		Phaser160Ti-33
	Emission		Euro 3
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection, dry cylinder liner,diesel engine,
	Rated power		160hp,rated power speed 2500rpm
	Displacement		5990ml
	Max.torque		560N.m
	Bore x stroke		100x127mm
	Manufacturer		Tianjin Lovol Engine Co., Ltd
Tire	Size		9.00R20 steel wire tire
	Number		6+1 nos
Fuel tank	200L aluminum alloy
Rear axle	8.0 tons
Drive form	4X2
Rated voltage	24V,DC
Transmissions	Datong 6 speed forward 1 reverse
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Engine 190hp,8 speed forward 1 reverse, rear axle 9.0 tons
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fecal suction tank structure parameters
Tank dimensions		5600×2150×1380mm	Tank volume	12000L
Tank material		Carbon steel	Tank thickness	6mm
Color and Logo		Optional
Standard configuration	Chassis,sub frame,6mm carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump,oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve Φ200mm.
Selective configuration	Liquid full alarm device, scraper pump.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and fecal suction tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
