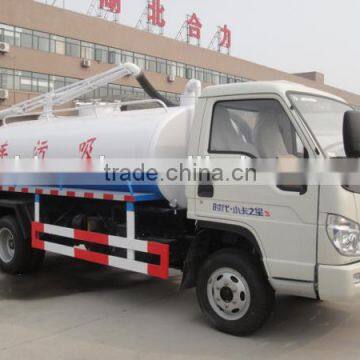

FOTON FORLAND 4x2 LHD/RHD 4000L Fecal Suction Truck 98hp Cheap Price

Name: FOTON FORLAND 4x2 LHD/RHD 4000L Fecal Suction Truck 98hp Cheap Price
Brand: FOTON
SKU: 123363167
Availability: InStock

US$ 10,000 - 17,000 MOQ: 1 Unit

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 2

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 2

Fuel Type Diesel

Tank Volume 4000L

Dimension (L x W x H) 5990X1955X2500

Place of Origin Hubei, China

Brand Name FOTON

Model Number HLQ5073GXEB fecal suction truck

Horsepower 98hp

Gross Vehicle Weight 7800

Product Description

Vehicle parameters
Vehicle Model		HLQ5073GXEB	Vehicle Brand	HELI
Overall dimensions		5990X1955X2500mm	Curb weight	3800kg
Tank dimensions		3500×1650×1190mm	Tank volume	4000L
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			BJ1073VEJEA-A	Chassis brand	FOTON
Overall dimensions			5875x1915x2150mm	Wheel base	3360mm
Front/rear wheel track			1415/1485mm	Front/rear suspension	1085/1430mm
Approach/departure angle			23/19°	Maximum speed	95km/h
Chassis Manufacturer			BEIQI FOTON MOTOR CO.,LTD
Cab	Configuration		D1695 single row cab,allowable 2 passengers,with warm air,all English signs in car body, English instruction ,international general accessories,double front windshield,power switch
	Color		White,other color is optional
Engine	Model		4DW91-63NG2
	Emission		Euro 2
	Type		4 cylinders,in-line,turbo charger,diesel engine
	Rated power		98hp
	Displacement		2545ml
	Bore x stroke		90x100mm
	Manufacturer		Wuxi Diesel Engine Branch
Tire	Size		6.50-16 Double star nylon tire
	Number		6+1 nos
Fuel tank	70L iron oil tank
Rear axle	4.0 tons
Drive form	4X2
Rated voltage	Camel brand,24V,DC
Transmissions	5 speed forward 1 reverse
Steering device	Steering wheel
Steering wheel	Left hand drive
Selective configuration		Steel wire tire,air conditioner
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fecal suction tank structure parameters
Tank dimensions		3500×1650×1190mm	Tank volume	4000L
Tank material		Carbon steel	Tank thickness	6mm
Color and Logo		Optional
Standard configuration	Chassis,sub frame,6mm carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump,oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve Φ200mm.
Selective configuration	Liquid full alarm device, scraper pump.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and fecal suction tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
