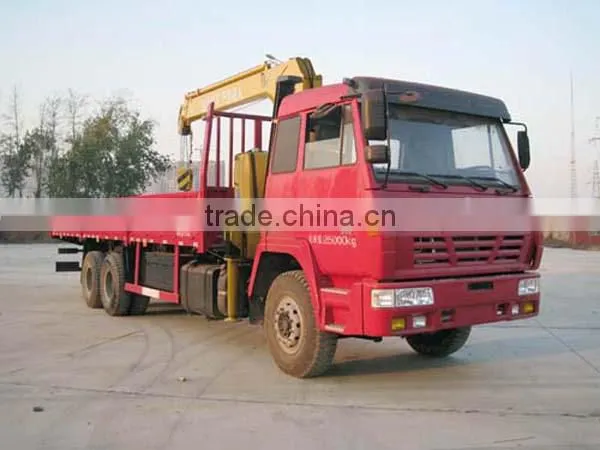

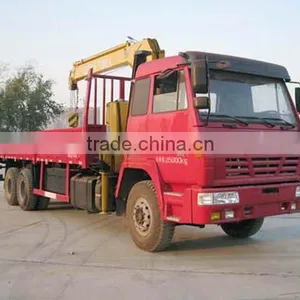

SHACMAN Aolong 6x4 12.0 Tons Crane Crane Truck 290hp Hot Sale for Export

Name: SHACMAN Aolong 6x4 12.0 Tons Crane Crane Truck 290hp Hot Sale for Export
Brand: SHACMAN
SKU: 123363013

US$ 55,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Max. Lifting Load:

12 tons

Max. Lifting Height:

17m

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 12 tons

Max. Lifting Height 17m

Place of Origin Hubei, China

Brand Name SHACMAN

Model Number HLQ5255JSQS434 crane truck

Certification GB/T19001-2008/ISO9001:2008

Warranty 12 month from the date of supply

After-sales Service Provided Overseas third-party support available

Product Description

Vehicle parameters
Vehicle Model		HLQ5255JSQS434	Vehicle Brand	HELI
Overall dimensions		10350X2500X3800mm	Curb weight	13840kg
Van dimensions		6600,6800X2290X550,800mm	Maximum loading of crane	12 tons
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			SX1255UM434	Chassis brand	SHACMAN
Overall dimensions			9271x2490x3121mm	Wheel base	4325+1350mm
Front/rear wheel track			1939/1800/1800mm	Front/rear suspension	1576/2020mm
Approach/departure angle			18/17°	Maximum speed	92km/h
Chassis Manufacturer			Shanxi Automobile Group Co., Ltd.
Cab	Configuration		Aolong medium a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, manual windows shake machine,hydraulic main seat, traveling data recorder
	Color		White,other color is optional
Engine	Model		WP10.290E32
	Emission		Euro 3
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
	Rated power		290hp,rated power speed 2200rpm
	Displacement		9726ml
	Max.torque		1160N.m
	Bore x stroke		126x130mm
	Manufacturer		Weichai Power Co., Ltd.
Tire	Size		12.00R20 steel wire tire
	Number		10+1 nos
Clutch	φ430 diaphragm clutch
Frame	850 × 300 (8 + 5)mm
Fuel tank	380L iron oil tank
Front axle	STR,6.5 tons
Rear axle	STR,13.0 tons double level,main reduction ratio 4.8
Drive form	6X4
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	gearbox 9JS119, 9 speed forward 1 reverse.
Steering device	Power assisted steering,domestic steering machine
Steering wheel	Left hand drive
Selective configuration		Air conditioner, wheel base 4600+1350mm,5000+1350mm,5625+1350mm
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Crane truck structure parameters
Van dimensions		7100,7300X2300X800mm	Maximum loading of crane	12 tons
XCMG crane
Crane model		SQS300	Maximum lifting height	14.5m
Maximum working radius		12.5m	Maximum loading	12 tons
Crane type		Straight arm	Telescopic arms number	4
Hydraulic, turning angle 360°			Color and Logo	Optional
Standard configuration	Chassis,sub frame,van body,XCMG straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration	2-20 tons XCMG straight arm truck crane,1-30 tons XCMG folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and crane truck structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
