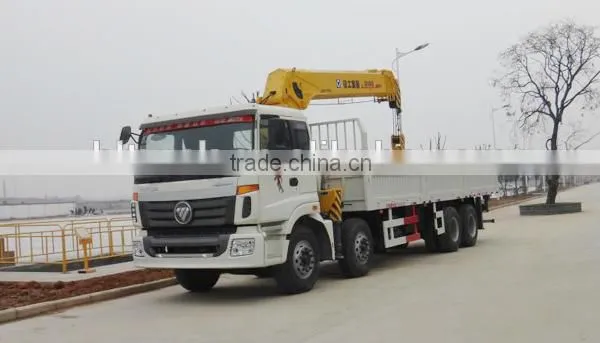

Foton 8x4 16 Tons XCMG Crane Truck With Crane 270hp

Name: Foton 8x4 16 Tons XCMG Crane Truck With Crane 270hp
Brand: FOTON
SKU: 123363059

US$ 58,000 - 65,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Max. Lifting Load:

16 tons

Max. Lifting Height:

19m

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 16 tons

Max. Lifting Height 19m

Place of Origin Hubei, China

Brand Name FOTON

Model Number HLQ5312JSQB truck with crane

Certification GB/T19001-2008/ISO9001:2008

Warranty 12 month from the date of supply

After-sales Service Provided Overseas third-party support available

Product Description

Vehicle parameters
Vehicle Model		HLQ5312JSQB	Vehicle Brand	HELI
Overall dimensions		12000X2495X3860mm	Curb weight	19700,18700kg
Van dimensions		8300,8500X2316X550,800mm	Maximum loading of crane	16 tons
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model		BJ1312VPPJJ-1	Chassis brand	FOTON
Overall dimensions		11865x2482x3050mm	Wheel base	1860+4700+1300mm
Front/rear wheel track		1900/1900/1860/1860mm	Front/rear suspension	1555/2450mm
Approach/departure angle		20/10°	Maximum speed	90km/h
Chassis Manufacturer		Beijing Foton Daimler Motor Co., Ltd.
Cab	Configuration	A row and a half cab(with sleeping berth),allowable 3 passengers, ETX2420 flat top, four point suspension airbag,airbag seat,air conditioner
	Color	Blue,other color is optional
Engine	Model	SC9DK270Q3B1
	Emission	Euro 3
	Type	6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection,exhaust valve brake,diesel engine
	Rated power	270hp,rated power speed 2200rpm
	Displacement	8820ml
	Max.torque	1125N.m
	Bore x stroke	114x144mm
	Manufacturer	Shanghai Diesel Engine Co., Ltd
Tire	Size	11.00R20steel wire tire
	Number	12+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	380L aluminum alloy
Rear axle	457 rear axle,13 tons
Drive form	8X4
Rated voltage	24V,DC
Transmissions	Gear box 9JS , 9 speed forward 1 reverse
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Truck mounted crane structure parameters
Van dimensions		8300,8500X2316X550,800mm	Maximum loading of crane	16 tons
XCMG crane
Crane model		SQS400	Maximum lifting height	20m
Maximum working radius		18.5m	Maximum loading	16 tons
Crane type		Straight arm	Telescopic arms number	5
Hydraulic, turning angle 360°			Color and Logo	Optional
Standard configuration	Chassis,sub frame,van body,XCMG straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration	2-20 tons XCMG straight arm truck crane,1-30 tons XCMG folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and truck mounted crane structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
