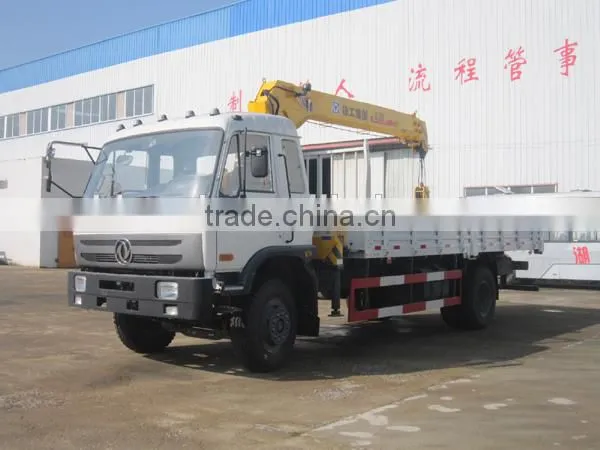

DONGFENG 4x2 Straight Arm 6.3 Tons Crane Truck 190hp Hot Sale for Export

Name: DONGFENG 4x2 Straight Arm 6.3 Tons Crane Truck 190hp Hot Sale for Export
Brand: DONGFENG
SKU: 123363005

US$ 38,000 - 45,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Max. Lifting Load:

6.3 tons

Max. Lifting Height:

15m

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 6.3 tons

Max. Lifting Height 15m

Place of Origin Hubei, China

Brand Name DONGFENG

Model Number HLQ5141JSQE crane truck

Certification GB/T19001-2008/ISO9001:2008

Warranty 12 month from the date of supply

After-sales Service Provided Overseas third-party support available

Product Description

Vehicle parameters
Vehicle Model		HLQ5141JSQE	Vehicle Brand	HELI
Overall dimensions		7990X2470X3700,3305,3225,3380mm	Curb weight	8690,7930,7870,7935kg
Van dimensions		4550,4710,4710,4400X2294X600mm	Maximum loading of crane	5 tons
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			EQ1141KJ	Chassis brand	DONGFENG
Overall dimensions			7600x2462x2710mm	Wheel base	4500mm
Front/rear wheel track			1940x1860mm	Front/rear suspension	1205/1895mm
Approach/departure angle			25/18°	Maximum speed	90km/h
Chassis Manufacturer			Dongfeng Motor Company
Cab	Configuration		A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
	Color		Blue,other color is optional
Engine	Model		B190 33
	Emission		Euro 3
	Type		6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		190hp,rated power speed 2500rpm
	Displacement		5900ml
	Max.torque		640N.m
	Bore x stroke		102x120mm
	Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Tire	Size		10.00-20-16 nylon tire
	Number		6+1 nos
Frame	(250×80×7)mm,parts are double layers.
Fuel tank	160L,steel
Front axle	5.0T
Rear axle	10.0T
Drive form	4X2
Rated voltage	24V,DC
Transmissions	Gearbox 8JS85E, 8 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Air Conditioner,steel wire tire,new driver’s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Crane truck structure parameters
Van dimensions		4550,4710,4710,4400X2294X600mm	Maximum loading of crane	5 tons
XCMG crane
Crane model		SQS125	Maximum lifting height	10.5m
Maximum working radius		8.7m	Maximum loading	5 tons
Crane type		Straight arm	Telescopic arms number	3
Hydraulic, turning angle 360°			Color and Logo	Optional
Standard configuration	Chassis,sub frame,van body,XCMG straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration	2-20 tons XCMG straight arm truck crane,1-30 tons XCMG folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and crane truck structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
