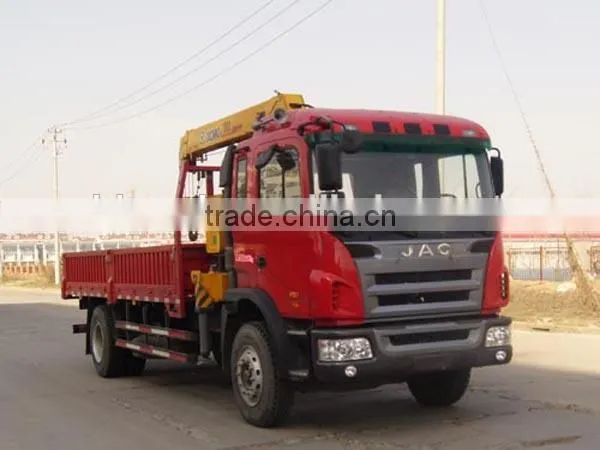

JAC 4x2 6.3 Tons Straight Arm Truck With Crane

US$ 25,000 - 40,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Max. Lifting Load:

6.3 tons

Max. Lifting Height:

15m

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 6.3 tons

Max. Lifting Height 15m

Place of Origin Hubei, China

Brand Name JAC

Model Number HLQ5161JSQH truck mounted crane

Certification GB/T19001-2008/ISO9001:2008

Warranty 12 month from the date of supply

After-sales Service Provided Overseas third-party support available

Product Description

Vehicle parameters
Vehicle Model		HLQ5161JSQH	Vehicle Brand	HELI
Overall dimensions		9000X2500X3650mm	Curb weight	8940,9440kg
Van dimensions		4800,5500X2380X550mm	Maximum loading of crane	5 tons
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model		HFC1161P3K2A47F	Chassis brand	JAC
Overall dimensions		7230x2495x3070mm	Wheel base	4700mm
Front/rear wheel track		1963 ,1800 mm	Front/rear suspension	1530/1000mm
Approach/departure angle		20/19°	Maximum speed	95km/h
Chassis Manufacturer		Anhui Jianghuai Automobile Co., Ltd
Cab	Configuration	A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder
	Color	Red, other color is optional
Engine	Model	YC4E160-42
	Emission	Euro 4
	Type	4 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, diesel engine
	Rated power	160hp, rated power speed 2600rpm
	Displacement	4260ml
	Max.torque	550N.m
	Bore x stroke	110X112mm
	Manufacturer	Guangxi Yuchai Machinery Group Co., Ltd
Tire	Size	11.00R20 steel wire tire
	Number	6+1 nos
Clutch	Φ430 diaphragm clutch
Frame	245X75X7mm
Fuel tank	300L iron oil tank
Rear axle	Boying 8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Truck with crane structure parameters
Van dimensions		4800,5500X2380X550mm	Maximum loading of crane	5 tons
XCMG crane
Crane model		SQS125	Maximum lifting height	10.5m
Maximum working radius		8.7m	Maximum loading	5 tons
Crane type		Straight arm	Telescopic arms number	3
Hydraulic, turning angle 360°			Color and Logo	Optional
Standard configuration	Chassis,sub frame,van body,XCMG straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration	2-20 tons XCMG straight arm truck crane,1-30 tons XCMG folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and truck with crane structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
