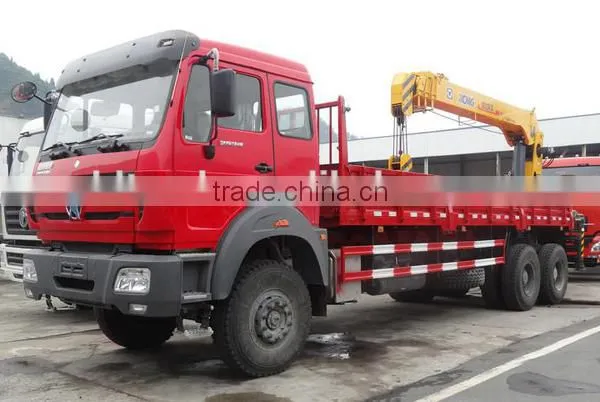

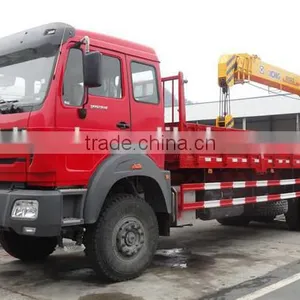

North-Benz 12 Tons Straight Arm 6x4 Truck With Crane WEICHAI Diesel Engine WP10.270E32

Name: North-Benz 12 Tons Straight Arm 6x4 Truck With Crane WEICHAI Diesel Engine WP10.270E32
Brand: North-Benz
SKU: 123362967

US$ 50,000 - 65,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Max. Lifting Load:

12 tons

Max. Lifting Height:

17m

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 12 tons

Max. Lifting Height 17m

Place of Origin Hubei, China

Brand Name North-Benz

Model Number HLQ5254JSQN truck mounted crane

Certification GB/T19001-2008/ISO9001:2008

Warranty 12 month from the date of supply

After-sales Service Provided Overseas third-party support available

Product Description

Vehicle parameters
Vehicle Model		HLQ5254JSQN	Vehicle Brand	HELI
Overall dimensions		9660X2496X3800mm	Curb weight	14205kg
Van dimensions		6020X2300X600mm	Maximum loading of crane	12 tons
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model		ND1254B41J	Chassis brand	North-Benz
Overall dimensions		8915x2495x3030mm	Wheel base	4100+1350mm
Front/rear wheel track		2045/1870/1870mm	Front/rear suspension	1410/2055 mm
Approach/departure angle		21/23°	Maximum speed	85km/h
Chassis Manufacturer		BEIBEN TRUCK
Cab	Configuration	NG80Ba row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner
	Color	White,other color is optional
Engine	Model	WP10.270E32
	Emission	Euro 3
	Type	6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine
	Rated power	270hp,rated power speed 2200rpm
	Displacement	9726ml
	Max.torque	1100N.m
	Bore x stroke	126x130mm
	Manufacturer	Weichai Power Co.,Ltd
Tire	Size	11.00R20 steel wire tire
	Number	10+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	400L aluminum alloy
Front axle	5.5 tons
Rear axle	457 rear axle,13.0 tons
Drive form	6X4
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Gearbox 9JS119B ,9 speed forward 1 reverse
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Truck with crane structure parameters
Van dimensions		6020X2300X600mm	Maximum loading of crane	12 tons
XCMG crane
Crane model		SQS300	Maximum lifting height	14.5m
Maximum working radius		12.5m	Maximum loading	12 tons
Crane type		Straight arm	Telescopic arms number	4
Hydraulic, turning angle 360°			Color and Logo	Optional
Standard configuration	Chassis,sub frame,van body,XCMG straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration	2-20 tons XCMG straight arm truck crane,1-30 tons XCMG folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and truck with crane structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
