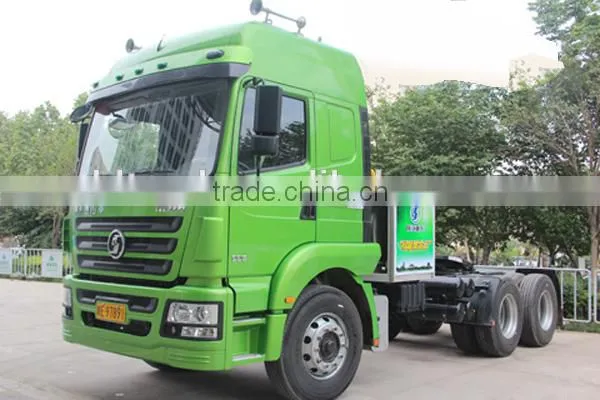

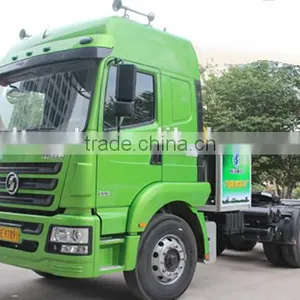

SHACMAN M3000 6x4 tractor truck diesel engine WP10.310E32 310hp

Vehicle parameters

Chassis model

SX4257GR324

Chassis brand

SHACMAN

Overall dimensions

6785X2490X3500mm

Wheel base

3175+1350mm

Front/rear wheel track

2011/1800/1800mm

Front/rear suspension

1485/725mm

Approach/departure angle

20/60°

Maximum speed

95km/h

Chassis Manufacturer

Shanxi Automobile Group Co., Ltd.

Cab

Configuration

New M3000 long a row and a half deluxe cab(with sleeping berth),allowable 3 passengers,electric air conditioner,electric rocking window machine, four point airbag damping cab,traveling data recorder

Color

Violet,other color is optional

Engine

Model

WP10.310E32

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine

Rated power

310hp,rated power speed 2200rpm

Displacement

9726ml

Max.torque

1250N.m

Bore x stroke

126x130mm

Manufacturer

Weichai Power Co., Ltd.

Tire

Size

12R22.5tubeless tire

Number

10+1 nos

Clutch

Φ430 diaphragm clutch

Frame

850 x 270 (8 + 4)mm

Fuel tank

400L plastic + electric heating

Front axle

MAN, 5.5 tons,drum type

Rear axle

MAN, 13 tons ,single level,main reduction ratio 4.625,domestic four channel ABS

Drive form

6X4

Suspension

Little leaf springs

Rated voltage

24V,DC

Transmissions

gearbox 12JSD160TA, 12 speed forward 2 reverse.

Traction saddle

Φ90

Steering device

Power assisted steering,steering machine (domestic ZF technology)

Steering wheel

Left hand drive

Selective configuration

Central locking,engine 340hp,engine 380hp,400L/600L aluminum alloy fuel tank

If there is a slight change in the chassis parameters above,please take the actual product as the standard

MOQ,payment terms,delivery terms,price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

L/C is optional

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

25 days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box

Other requirements

Please fill in here

FOB

USD

CNF/CIF

USD

Shipment

Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days.

Please confirm the price again with our company before placing the order,thanks.
