Rotary electric switch WITH 12 positions

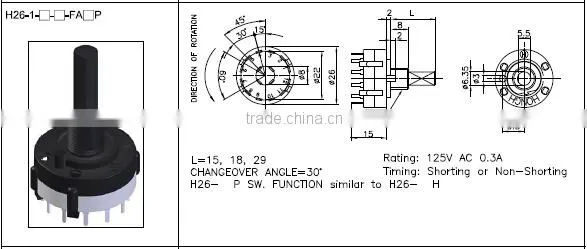

Outline drawing
More specifications
| Electrical & Mechanical characteristics: | |||||
| Operating torque:. | 1±0.5Kgf.cm | ||||
| Stop strength: | 5kgf.cm | ||||
| Bushing & nut tight strength: | 5Kg/cm min. | ||||
| Changeover angle: | 30° | ||||
| Rated power: | AC 125V 0.3A,AC 250V 0.6A | ||||
| Contact resistance: | 25mΩ Max..After life cycle testing:80mΩ Max. | ||||
| Insulation resistance: | D.C 500V , 100MΩ min. | ||||
| Withstand voltage: | A.C 500V 1 minute | ||||
| Endurance characteristics: | 10,000 times or more(8-10times/minute) | ||||
UPS ,DHL, FEDEX is available to transport our cargos.

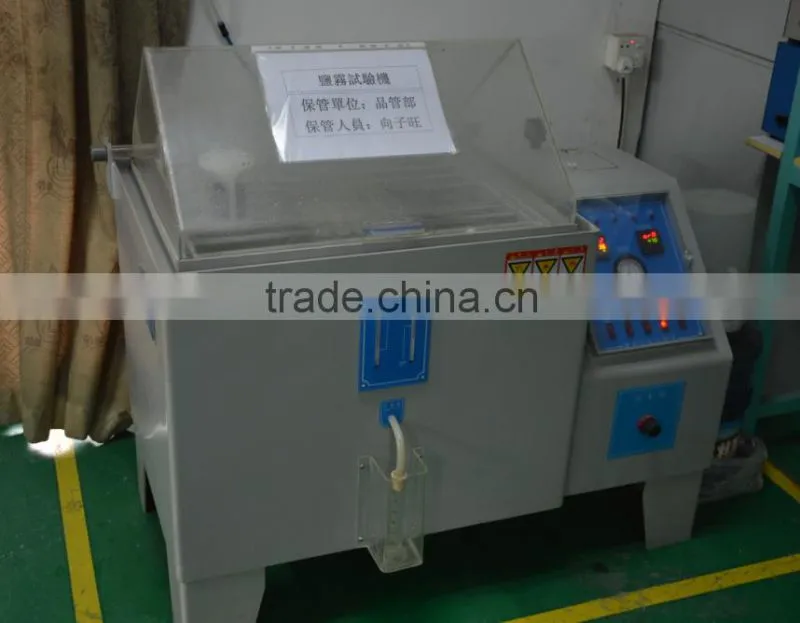

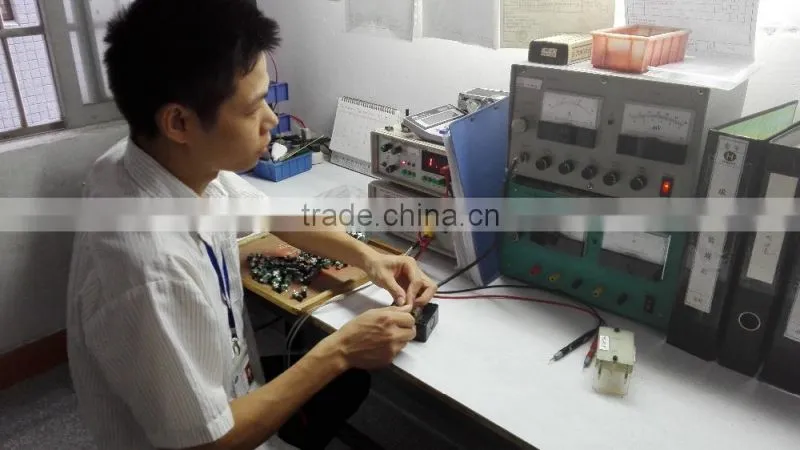

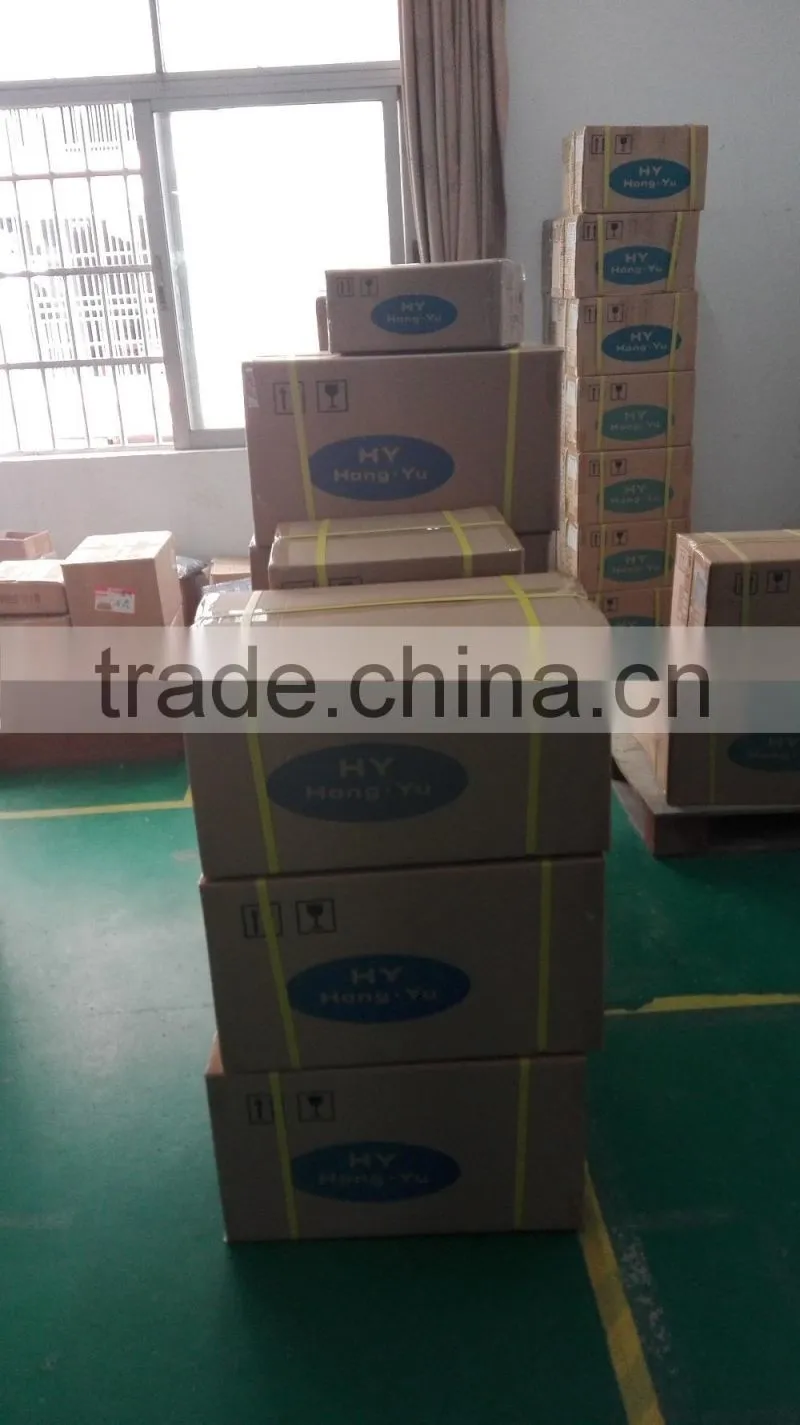

Testing & packaging
Hongyu H26 rotary switch is Applied to :washing machine,car audio,sound console,dimmer,volume controller,Christmas lights controller,the other instuments .
Introductions:
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..
HuiZhou HongYu Innovation Electronic Co.,Ltd is located in Huizhou,Guangdong with convenient traffic,owning an excellent team of over 50 professional engineers and more than 200 outstanding productive staff.In order to enhance international competitive ability,we have imported 5 sets of advanced fully automated prodution equipment ,4 modern high-efficient production line,5 assembly production line from Germany and Japan,moreover, we have introduced advanced on-line testing and functional testing instruments.As a result of the strict quality control throughout all stages of prime research ,design,fully automated assembly production,HongYu enables to guaratee superior quality for clients.
Besides,we have received ISO9001:2008 Quality Control Management System Certification,and ISO 14001 Environment Management System Certification .We always abide by policy of Focusing on Customer orientation,Striving for perfection,Involving all staff and Pursuing outstanding which are for our sustained goal :To set up overall quality management system to satisfy customers demand, to upgrade business service level,to provide customers exceptional products and services.
