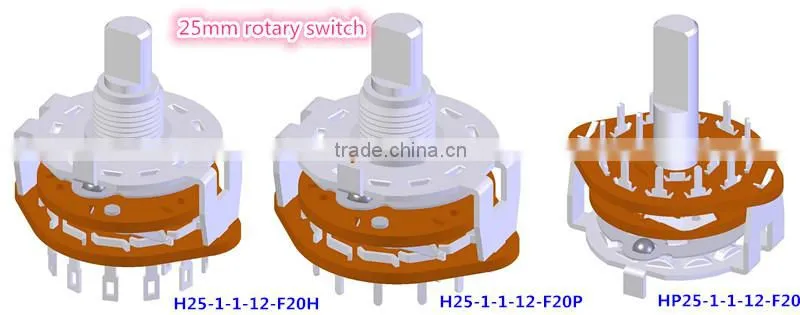

5 speed ceiling fan switch with position 25mm 5 speed ceiling fan switch

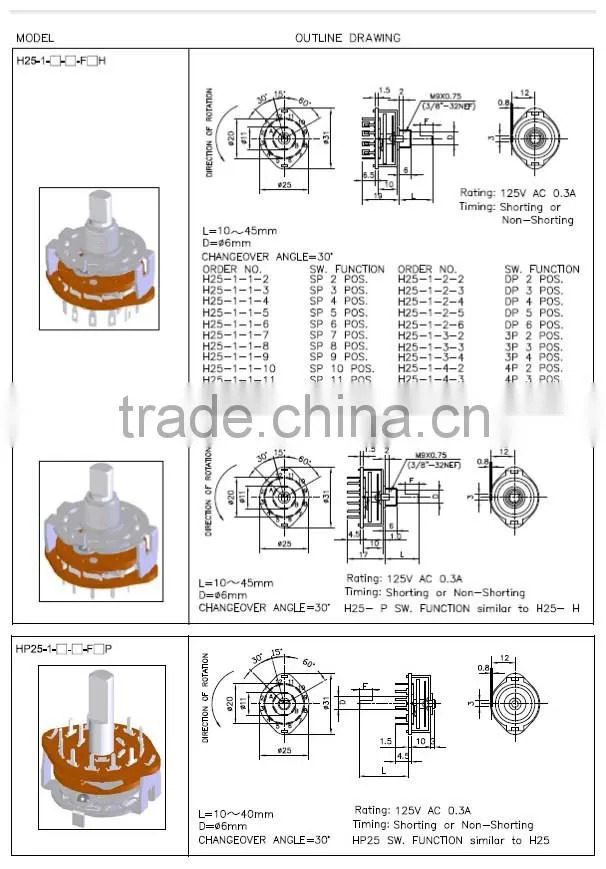

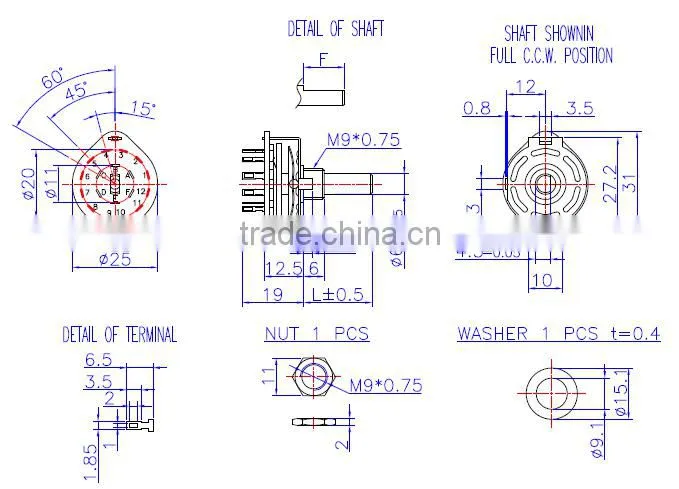

Outline drawing
More specifications:
| Electrical & Mechanical characteristics: | |
| Operating torque: | 1±0.5Kgf.cm. |
| Stopper strength: | 5kgf.cm |
| Bushing & nut tight strength: | 5Kg/cm min. |
| Changeover angle: | 30° |
| Rated power: | AC 125V 0.3A,AC 250V 0.6A |
| Contact resistance: | 25mΩ max..After life cycle testing:80mΩ max.. |
| Insulation resistance: | D.C 500V , 100MΩ min.. |
| Withstand voltage: | A.C 500V 1 minute |
| Endurance characteristics: | 10,000 times or more(8-10times/minute) |
Featrues:
1 ~ 12 optional position Rotary Switch.
1 ~ 4 pole Rotary Switch.
PCB terminals and soldering terminals.
Excellently stable contact ability..
Taiwan quality.
Changeover angles are available upon request.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.
Testing and packing
UPS ,DHL, FEDEX are available to transport our cargos.
Company Information
Self introduction:
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises.

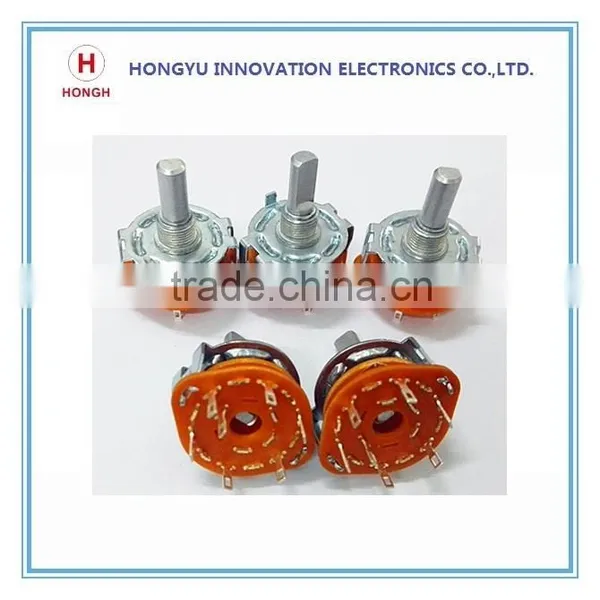

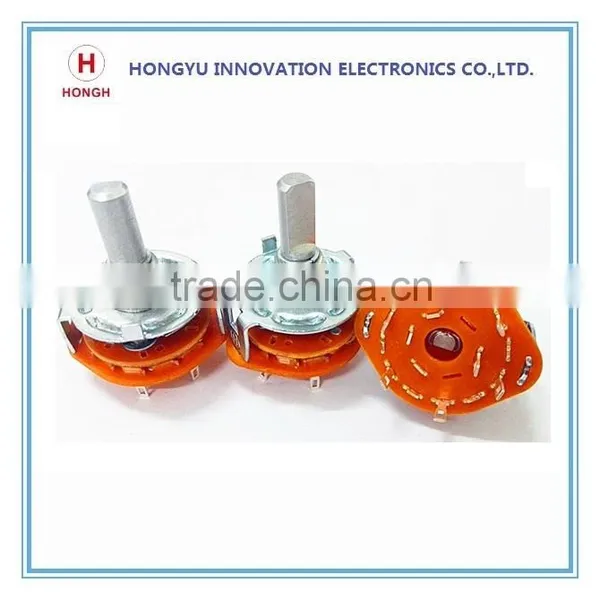

Photos for viewing
Certifications
What is the application of this part ?
Hongyu rotary switches are applied to :washing machine,car audio,sound console,dimmer,volume controller,christmas lights controller,the other instruments. .
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
