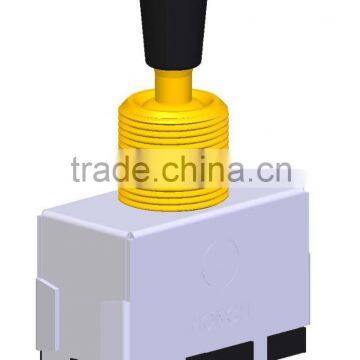

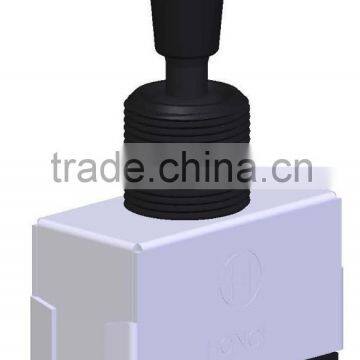

electric selector guitar switch , toggle guitar switch wtih cap sleeve
Outline drawings:
Specification:
| Electrical characteristics: | |||
| Rating: | 16V DC 0.1A | ||
| Contact resistance: | 200mΩ max. | ||
| Insulation resistance: | D.C 500V 10MΩ min.. | ||
| Withstand voltage: | A.C 500V 1 minut | ||
| Operating force: | 0.5±0.3Kgf.cm(with cap),0.6±0.3Kgf.cm(without cap) | ||
| Operating life: | 10000 times | ||
| Stop strength: | 5kgf.cm | ||
| Bushing & nut tight strength: | 5Kg/cm min.. | ||
|
Taper |
Test point(percent) |
output voltage from terminal 1 ,2 (V1-2) |
output voltage V2-3 |
1-3Input voltage between terminal 1,3 (V1-3 percent) |
input voltage V1-3 percent |
||
A |
50 |
10-25 |
|
B |
50 |
40-60 |
|
C |
*50 |
|
10-25 |
D |
50 |
6-15 |
|
E |
*50 |
|
18-34 |
K |
50 |
18-34 |
|
W |
30 |
5-15 |
|
50 |
40-60 |
|
|
70 |
85-95 |
|
|
RD |
*50 |
|
6-15 |
Mechanical characteristics:
2.1 Overall rotation angle:265±5°
2. 2 Strength of terminals: When 300gf are weighted on top of terminal in every direction for 1 minute. Loose stale of terminal and damage on stator board should not exist.
2.4Shaft end stop strength: 0.5Kgf/cm min.
Endurance characteristics:
3.1Rotational life: 500~1,000 cycles.
Other:
4.1Operating temperature range: -10℃~+70℃
4.2Storage temperature range:-20℃~+80℃2 operation torque:40~250gf.cm(rotation speed 60 degree /1sec.).
Operation torque:40~250gf.cm.(Rotational speed 60°/1 sec)
2.3 Terminal strength: A static force of l000 gf being applied in one direction on the tip of the terminal for l minute. The terminal may be deformed but shall not sustain any problem as deviation and breaking of terminal and breaking of insulation material .
Seriously checking and testing :
Durable packaging:
Shipping partners:
ABOUT US:
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..
HuiZhou HongYu Innovation Electronic Co.,Ltd is located in Huizhou,Guangdong with convenient traffic,owning an excellent teamof over 50 professional engineers and more than 200 outstanding productive staff.In order to enhance international competitive ability,we have imported 5 sets of advanced fully automated prodution equipment ,4 modern high-efficient production line,5 assembly production line from Germany and Japan,moreover, we have introduced advanced on-line testing and functional testing instruments.As a result of the strict quality control throughout all stages of prime research ,design,fully automated assembly production,HongYu enables to guaratee superior quality for clients.
Besides,we have received ISO9001:2008 Quality Control Management System Certification,and ISO 14001 Environment Management System Certification .We always abide by policy of Focusing on Customer orientation,Striving for perfection,Involving all staff and Pursuing outstanding which are for our sustained goal :To set up overall quality management system to satisfy customers demand, to upgrade business service level,to provide customers exceptional products and services.
