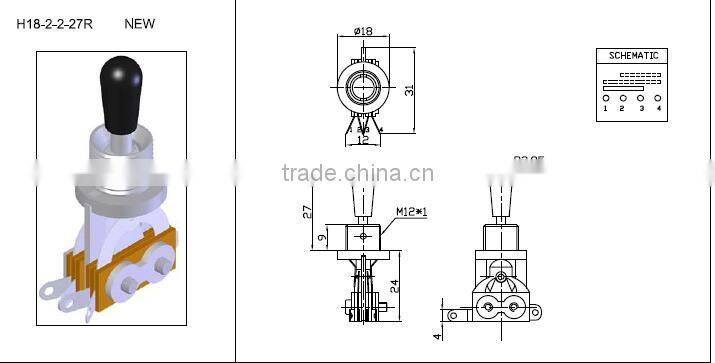

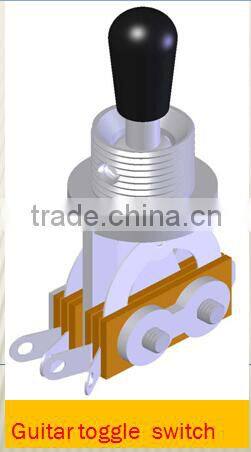

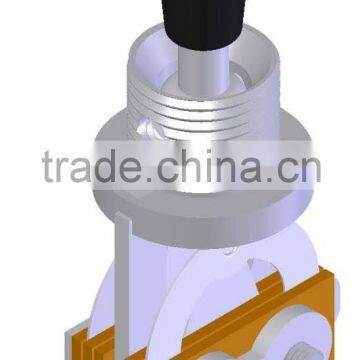

Selector guitar switch bushing type toggle selector guitar switch
Specification:
| Electrical characteristics: | |||
| Rating: | 16V DC 0.1A | ||
| Contact resistance: | 200mΩ max. | ||
| Insulation resistance: | D.C 500V 10MΩ min.. | ||
| Withstand voltage: | A.C 500V 1 minut | ||
| Operating force: | 0.5±0.3Kgf.cm(with cap),0.6±0.3Kgf.cm(without cap) | ||
| Operating life: | 10000 times | ||
| Stop strength: | 5kgf.cm | ||
| Bushing & nut tight strength: | 5Kg/cm min.. | ||
|
Taper |
Test point(percent) |
output voltage from terminal 1 ,2 (V1-2) |
output voltage V2-3 |
1-3Input voltage between terminal 1,3 (V1-3 percent) |
input voltage V1-3 percent |
||
A |
50 |
10-25 |
|
B |
50 |
40-60 |
|
C |
*50 |
|
10-25 |
D |
50 |
6-15 |
|
E |
*50 |
|
18-34 |
K |
50 |
18-34 |
|
W |
30 |
5-15 |
|
50 |
40-60 |
|
|
70 |
85-95 |
|
|
RD |
*50 |
|
6-15 |
Mechanical characteristics:
2.1 Overall rotation angle:265±5°
2. 2 Strength of terminals: When 300gf are weighted on top of terminal in every direction for 1 minute. Loose stale of terminal and damage on stator board should not exist.
2.4Shaft end stop strength: 0.5Kgf/cm min.
Endurance characteristics:
3.1Rotational life: 500~1,000 cycles.
Other:
4.1Operating temperature range: -10℃~+70℃
4.2Storage temperature range:-20℃~+80℃2 operation torque:40~250gf.cm(rotation speed 60 degree /1sec.).
Operation torque:40~250gf.cm.(Rotational speed 60°/1 sec)
2.3 Terminal strength: A static force of l000 gf being applied in one direction on the tip of the terminal for l minute. The terminal may be deformed but shall not sustain any problem as deviation and breaking of terminal and breaking of insulation material .
Seriously checking and testing :
