Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12

Huangshi Fuyuan Import And Export Trading Co., Ltd.
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 thumbnail-1
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 thumbnail-2
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 thumbnail-3
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 thumbnail-4
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 thumbnail-5
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 thumbnail-6
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 photo-1
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 photo-2
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 photo-3
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 photo-4

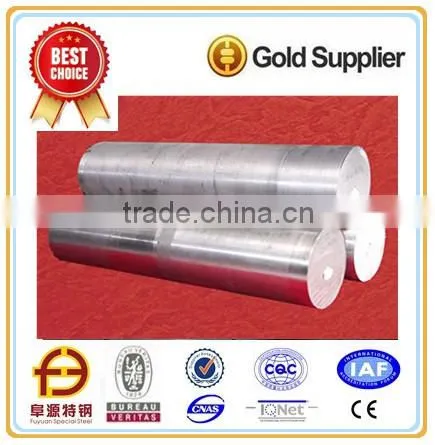

Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 photo-5
Alloy Steel Tool Steel 1.2080 Cr12 D3 SKD1 X210Cr12 photo-6
US$ 1,000 - 1,500 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Steel Grade:
Alloy Steel
Standard:
AISI, ASTM, BS, DIN, JIS
Dimensions:
Round50--500mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shenzhen zhenjiang ningbo wuhan huangshi
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Steel Grade Alloy Steel
Standard AISI, ASTM, BS, DIN, JIS
Dimensions Round50--500mm
Place of Origin Hubei, China
Brand Name Fuyuan
Model Number 1.2080 / Cr12 / D3 / SKD1 / X210Cr12
Technique Other, Forged, Forged or Rolled
Application Tool Steel Bar
Alloy Or Not Is Alloy
Special Use Mold Steel
Type Alloy Steel Bar
Product Introduction

1.2080 X210Cr12 is High carbon and high chromium, ledeburitic 12 % Cr alloyed cold work tool steel, high compressive strength, fairly gooddimensional stable during heat treatment, extremely resistant to wear against abrasive and adhesive, low distortion,deep hardenability, non-deforming, medium toughness and good edge-holding properites. Not suitable for nitriding andelectrical discharge machining.

Specification
Item


Size (can be customized)

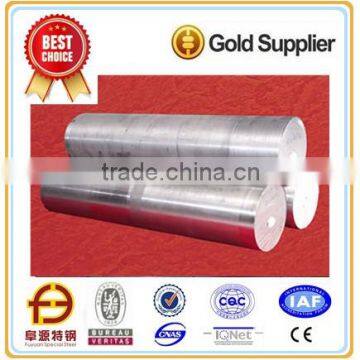

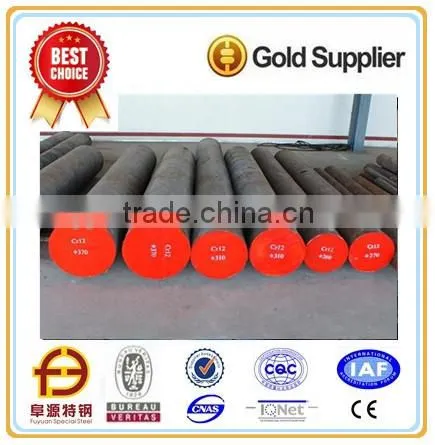

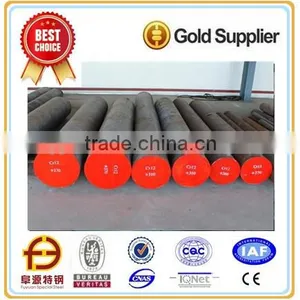

Round
Dia 12mm-500mm


Length 2000mm-5800mm

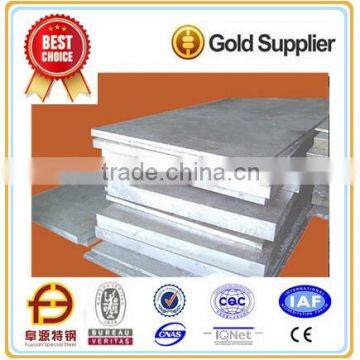

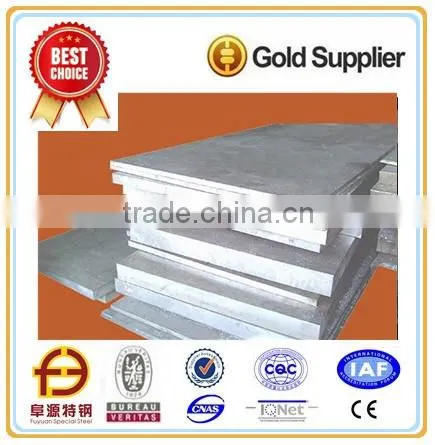

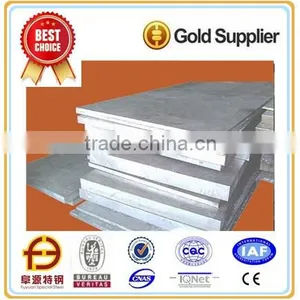

Flat             (*when forged, production width is 4 times than thickness)
Thickness 12mm-400mm
Width 50mm-800mm




Chemical Composition (can be customized)
DIN 1.2080
C:1.90-2.20, Si:0.10-0.60, Mn:0.20-0.60, Cr:11.00-13.00, P≤0.030, S:≤0.030
AISI D3
C:2.00-2.35, Si:<0.60, Mn:<0.60, Cr:11.00-13.50, P≤0.030, S:≤0.030
JIS SKD1
(X210Cr12)
C:1.90~2.20, Si:0.10~0.60, Mn:0.20~0.60, Cr:11.00-13.00, V:≤0.030, P:≤0.030, S:≤0.030
GB Cr12
C:2.00～2.30, Si:≤0.40, Mn:≤0.40, Cr:11.50～13.00, Ni:≤0.25, Cu:≤0.30, Co:≤1.00, P:≤0.030, S:≤0.030
Process
EAF+LF+VD+ESR+FORGED/ROLLED+Heat Treatment (Annealed,A Normalized, Q+T)
Heat treatment
Normalized ; Annealed ; Quenched ; tempered
Surface Condition/Treatment
Black surface; Grinded/Peeled ; Machined;Turned/Bright
Inspection
100% Ultrasonic according to the test standards:SEP1921-84,CLASS C/c or D/d
Payment Terms
T/T;L/C (30% advance payment by T/T, and 70% should be paid against the color scanned copy of BL by T/T or irrevocable L/C at sight)
Trade Terms
FOB; CIF; CFR
Packing
Standard seaworthy packing or as customer required
Shipping Marks
As Buyer/Seller's option. N/M means no marks.
Invoicing
According to acctural weight (25 tons). If the acctural weight ≥ 25 tons, pls fill less to the seller for the over weight according to the PI price.
Size tolerence
0/+2mm for bright / grinded / machined surface, 0/+4mm for black / peeled surface.
Length tolerence
10% shorter length should be allowed.
Quantity tolerence
-10%/+10% for total quantity.
Physical Properties
Density
at 20 °C 7,70 kg/dm
Thermal conductivity
at  20 °C  20,0  W/(m.K)
Thermal expansion between 20 °C and__°C, m/(mK)
100 °C: 10,5;  200 °C: 11,0; 300 °C: 11,0;  400 °C: 11,5;   500 °C: 12,0

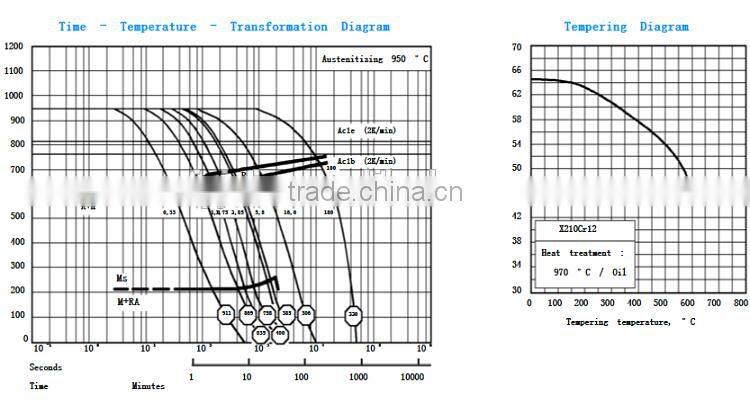

Heat Treatment
Annealing
800 - 850 °C
Hardness after Annealing
Max. 250 HB
Stress relieving
Approx. 650 °C
Hot forming
1050 - 850 °C
Hardening
940 - 970°C
Quenching media
Oil, Salt bath ( 220 - 250 °C or 500 - 550 °C )Air or compressed air up to 25 mm thickness
Hardness after quenching
63 - 65 HRC
Hardness after tempering
100 °C: 63 HRC, 200 °C: 62 HRC, 300 °C: 60 HRC, 400 °C: 57 HRC.



Applications
Heavy duty and highly stressed all type of blanking, cutting and punching tools up to 4 mm sheet thickness with excell-ent edge holding properties, cold forming tools, woodworking tools, thread rolling dies, shaping, flanging and beadingdies, punches and dies for cold nut manufacture, deburring tools, tools for spinning, deep drawing dies, sand blasting nozzles, press tools for the ceramic, sinters, pharmaceutical, brick and refractory industries, scraping and trimming dies,powder pressing tools, shear blades for plastic, paper, cardboard and metal, cold extrusion for light alloys and steel,knurling tools, wire drawing dies, profile rolls, measuring tools, moulds for plastic materials.
Product Show
Why Choose Us

About us

1, the company professional to produce and RD more than 100 kinds and 1000 sizes of die / mould / tool steel products more than 10 years;Rich technology strength & strong processing strength & advanced production equipment & complete test instrument &  rigor quality management.

Quality control

2, Acceptable materials; UT test; After annealing ,steels are held for a suitable time in sands and cooling slowly; Machining; Tolerance control; Strictly testing; Certification: Mill Certificate Test or third party inspection institution.

Service

3, Sample free provided from inventory; MOQ is 1 metric ton; Reliable quality; Competitive price;  In seaworthy packing; Excellente service; Reply within 24 hours.

Product Processing

The Process


Material


Smeilting

Analysis


Forging


Sand cooling and annealing
Quality control
Surface Treatment
Packing


Shipping


Order finished




Main Products

1.2080 / Cr12 / D3 / SKD1 Round bars and Flats Black / machining

More quatities, more cheaper

FOB Price: US $600-1500/Metric Ton

1.2379 / Cr12Mo1V1 / D2 / SKD11 Round bars and Flats EF / ESR Black /Machining

More quatities, more cheaper
FOB Price: US $1000-3000/Metric Ton

1.2344 / 4Cr5MoSiV1 / H13 / SKD61 Round bars and Flats EF / ESR Black /Machining

More quatities, more cheaper
FOB Price: US $1000-10000/Metric Ton

1.2343 / 4Cr5MoSiV / H11 / SKD6 Round bars and Flats EF / ESR Black /Machining

More quatities, more cheaper
FOB Price: US $1000-5000/Metric Ton

1.2311 /3Cr2Mo / P20 Round bars and Flats Black / machining

More quatities, more cheaper
FOB Price: US $600-3000/Metric Ton

1.2581 /3Cr2W8V / H21/ SKD5 Round bars and Flats EF / ESR Black /Machining

More quatities, more cheaper
FOB Price: US $100-4500/Metric Ton
