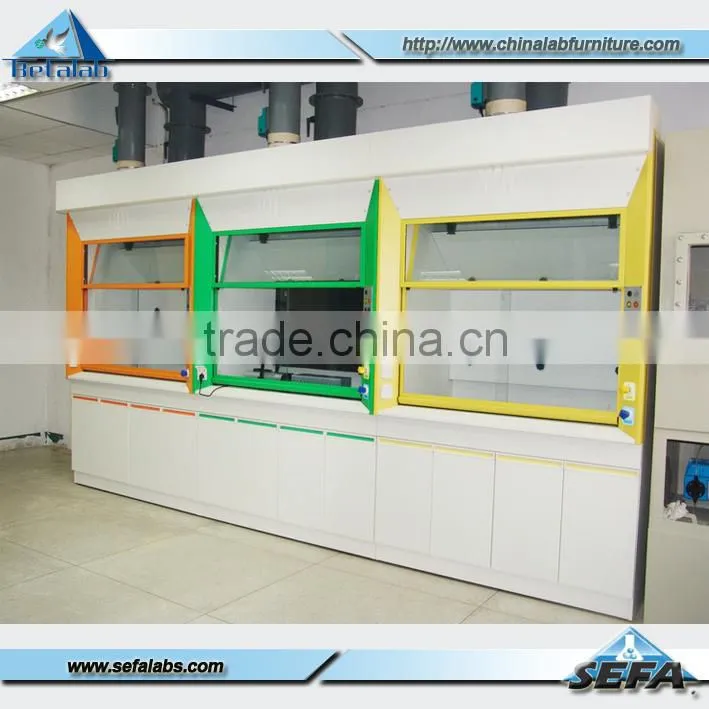

Laboratory Biosafety Cabinet Fume Chamber Vertical Laminar Air Flow Cabinet
1.Product of Fume Chamber
2.SPECIFICATIONS
Product Name |
Laboratory Biosafety Cabinet Fume Chamber Vertical Laminar Air Flow Cabinet |
Size |
1200(W)*850(D)*2350(L) mm; 1500(W)*850(D)*2350(L) mm; 1800(W)*850(D)*2350 (L) mm. |
Color |
Custom-made |
Casework |
1.2mm thickness of cold- rolled steel plate, after acid washing, phosphide and&nbs p;electrophoresis, sprayed with good quality anti- corrosion static coating. |
Inside Lining |
4mm thickness of Compact. |
Worktop |
1)19/20mm thickness EPOXY, Black Color 3)20mm thickness GRANITE , 4)25mm thickness STAINLESS STEEL 5)19mm thickness WILSONART CHEMSURF/POSTFORMED MALAMINE (FORMICA) Black , Gray Color 6)20mm thickness CERAMIC, Black Color |
Sash |
6mm of tempered glass. |
Sash Handle |
2mm Cold- rolled steel powered with epoxy coating. |
Illumination |
with not less than 300 Lux 30W fluorescent l amp set |
Cup sink |
Oval shaped PP Cup sink |
Water Tap |
Molded in one piece copper water tap, epoxy powder coating surface with a ceramic valve. |
Valve |
1Water valve. (by custom) |
Exhausting Duct |
Anti-corrosion PP/PVC duct |
Plinth |
With 1.5mm thickness of cold- rolled steel plate, after acid washing, phosphide and ‘dian yong’, sprayed with good quality anti- corrosion static coating. |
Technical specification |
Noise: less than 60db (International standard), Face velocity: 0.5m/s, 220V |
Function |
With an intelligent automatic delay protection device& nbsp;to exhaust residual corrosion air completely and pro long the service time of fume cupboard. |
Socket |
4 Electric sockets, (By custom) |
Exhaust fan |
not include exhausting duct &exhaust fan, will&nbs p;provide after receiving the detailed design of exhausti on duct. |
3.MAIN BUSINESS LINES
A.Laboratory Planning, Designing, Production, Integration, Installation, Consultation & Project Management.
B.Lab Furniture Designing, Development, Manufacturing, Install ation. Commissioning & Service.
C.CAV/Two- State/VAV UBC Laboratory Air Flow Control System.
D.Laboratory Furniture, Fume Hood, Enclosure & Ventil ation Product
E.Laboratory Specialty Gas Pipe and Gas System
F.Comprehensive Supply of Lab Accessories.
4.MANUFACTURE&PACKAGE
